Air Pump: Reassembly

INSTALL AIR SWITCHING VALVE
1. Install the No.1 air hose to the air switching valve and air pump.
2. Install the air switching valve with the 2 bolts to the air pump bracket.
  Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

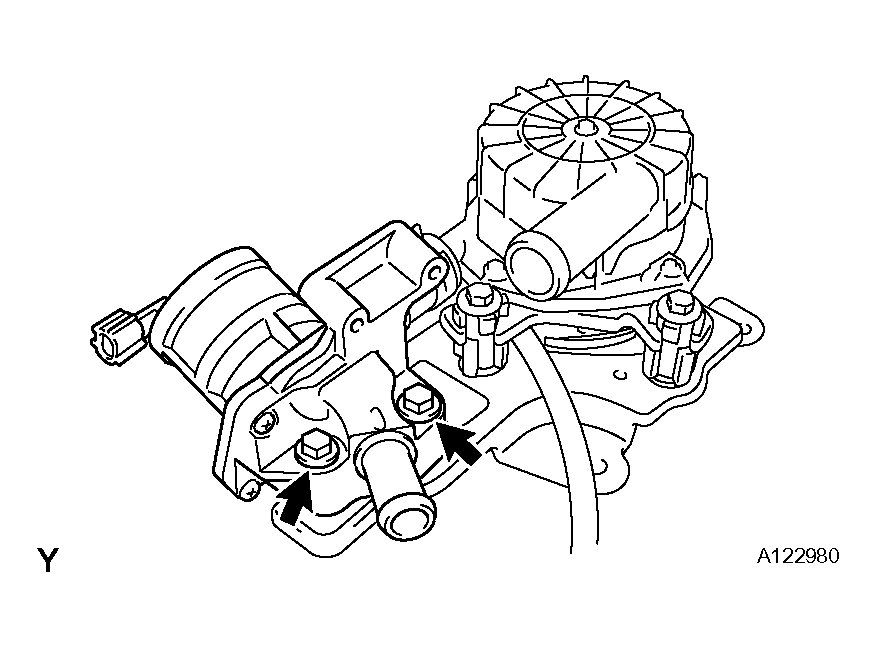

  Fig 1: Installing Air Switching Valve With Bolts To Air Pump Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PRESSURE SENSOR
1. Install the pressure sensor with the 2 bolts to the air switching valve.
  Torque: 5.0 N*m (55 kgf*cm, 48 in.*lbf)
2. Install the vacuum hose to the pressure sensor and air switching valve.

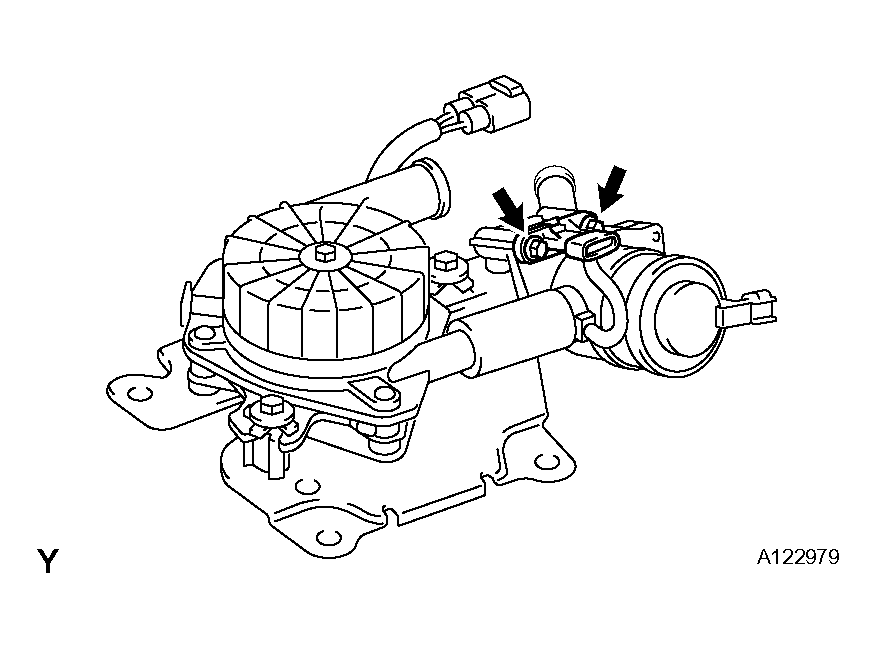

  Fig 2: Installing Pressure Sensor With Bolts To Air Switching Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
