Air Pump: Disassembly

  1. REMOVE PRESSURE SENSOR
    1. Remove the vacuum hose from the pressure sensor and air switching valve.
    2. Remove the 2 bolts and pressure sensor from the air switching valve.

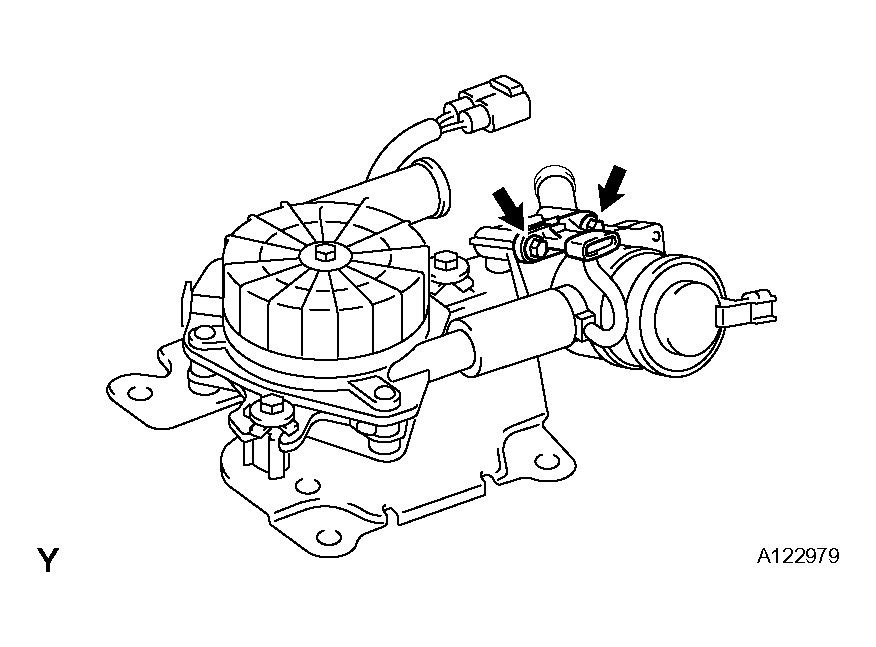

      Fig 1: Removing Bolts & Pressure Sensor From Air Switching Valve
      G04507527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE AIR SWITCHING VALVE
    1. Remove the 2 bolts and air switching valve from the air pump bracket.
    2. Remove the No.1 air hose from the air switching valve and air pump.

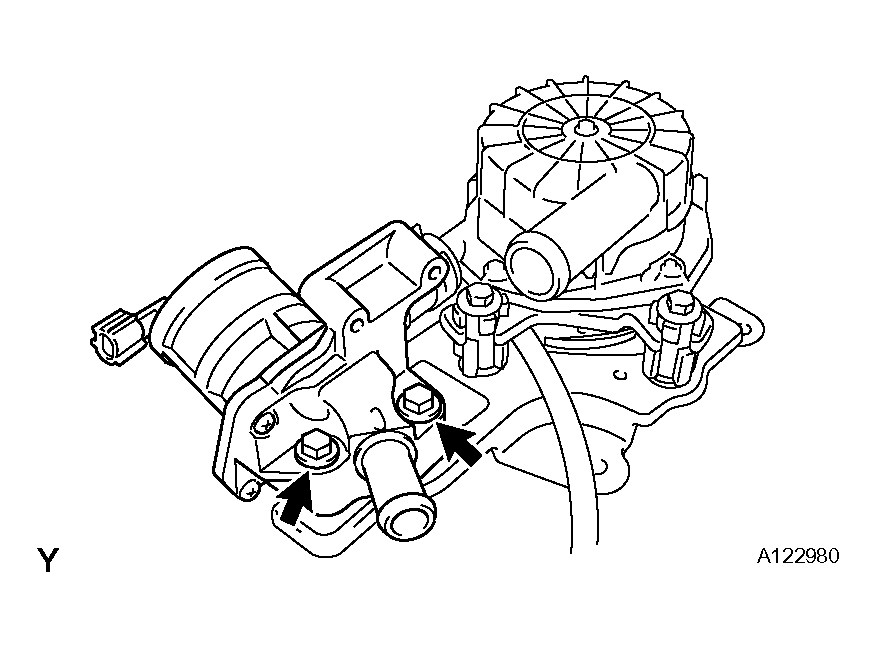

      Fig 2: Removing Bolts & Air Switching Valve From Air Pump Bracket
      G04507528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
