Remote Control Mirror without Driving Position Memory: Notes

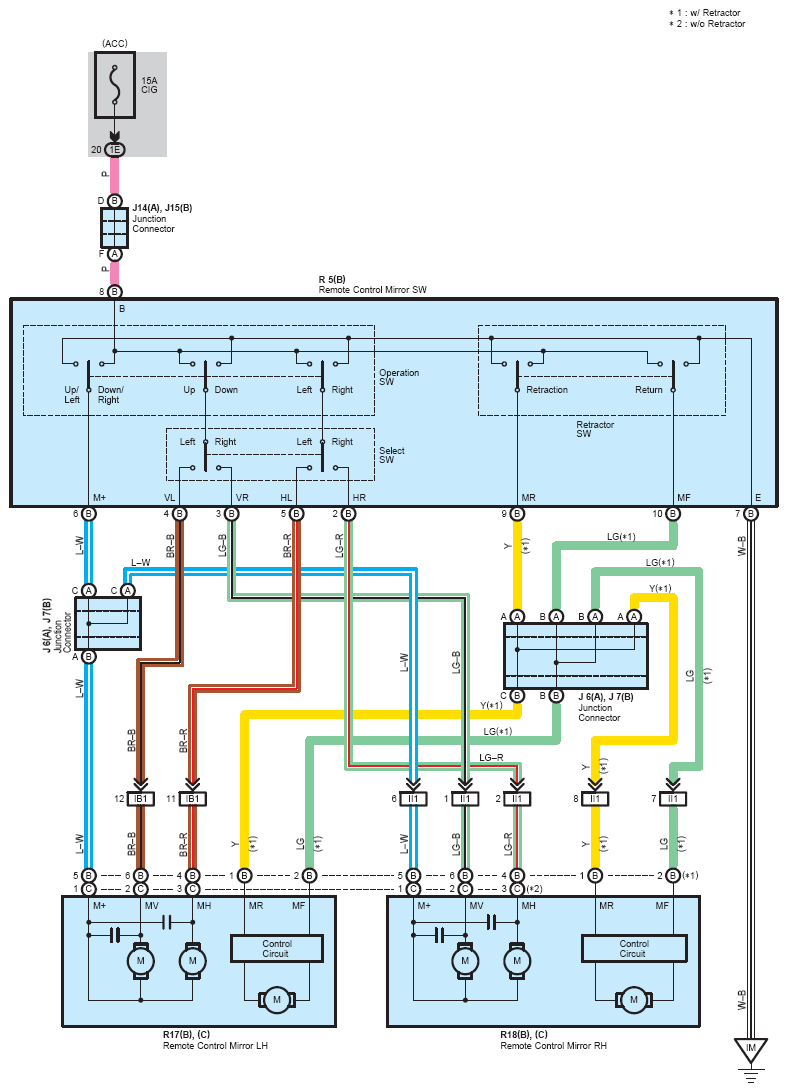

Fig 1: Remote Control Mirror System (Without Driving Position Memory) Wiring Diagram

G08861649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
