Power Window: Notes

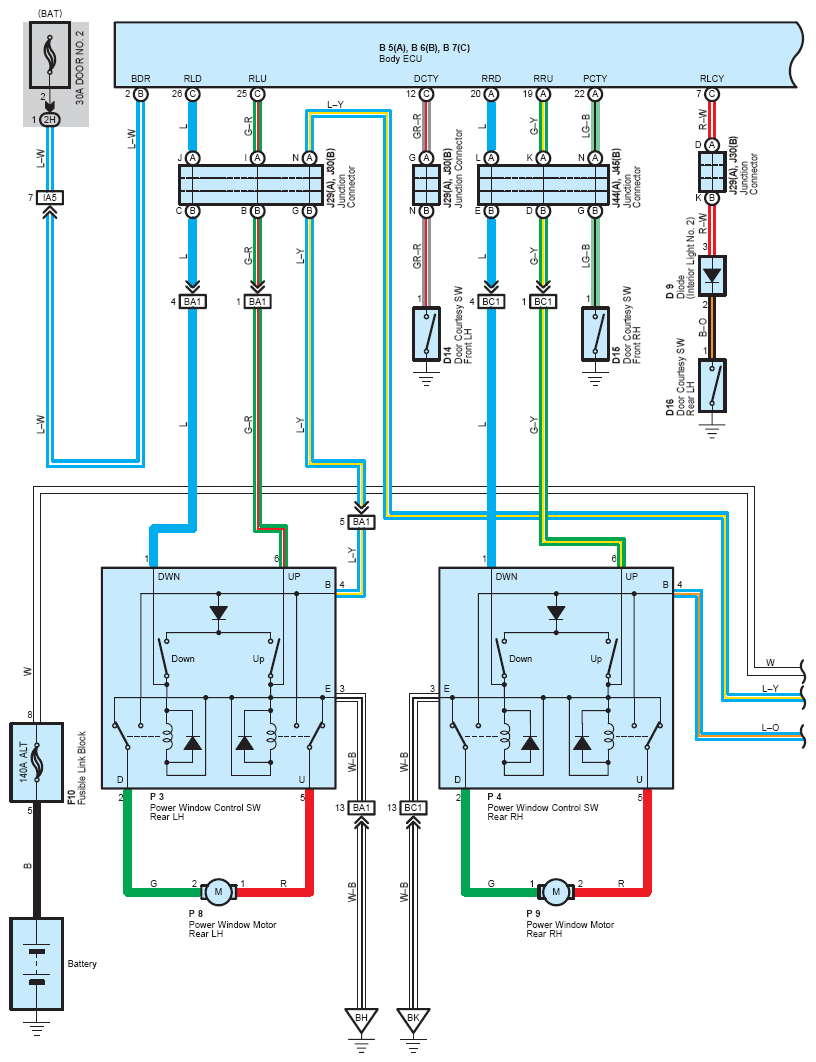

Fig 1: Power Window System Wiring Diagram (1 Of 4)
G08861593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

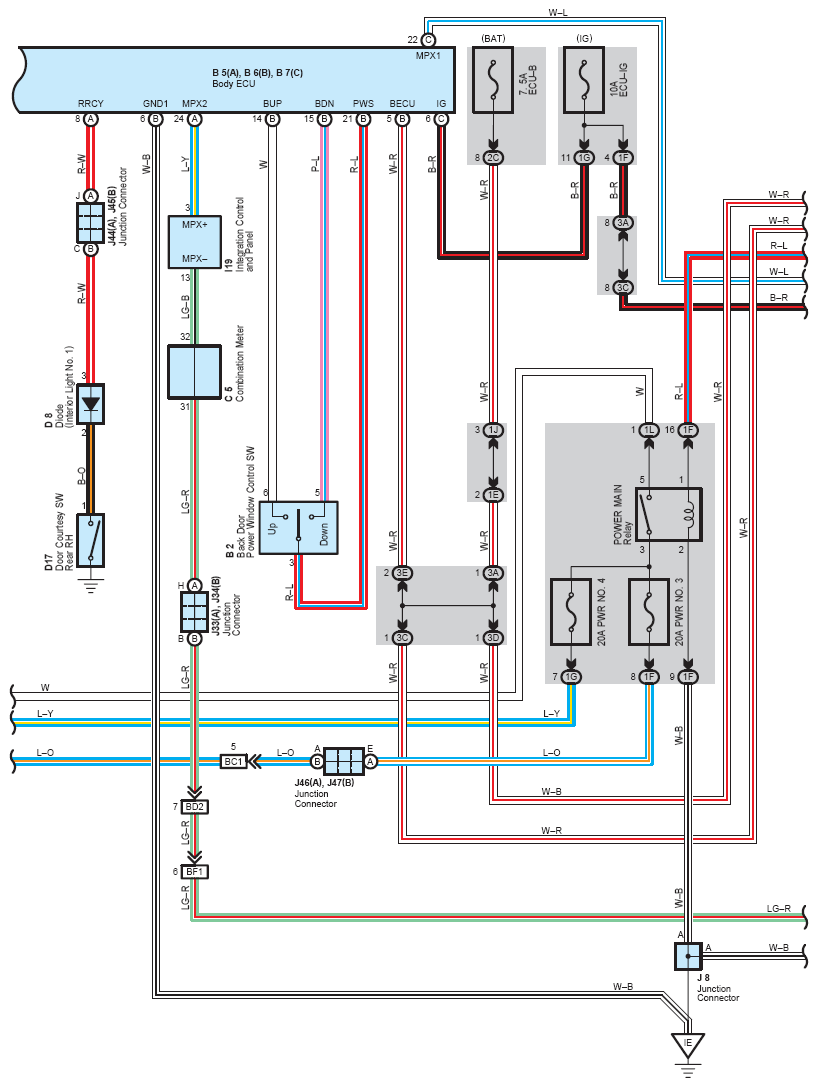

Fig 2: Power Window System Wiring Diagram (2 Of 4)
G08861594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

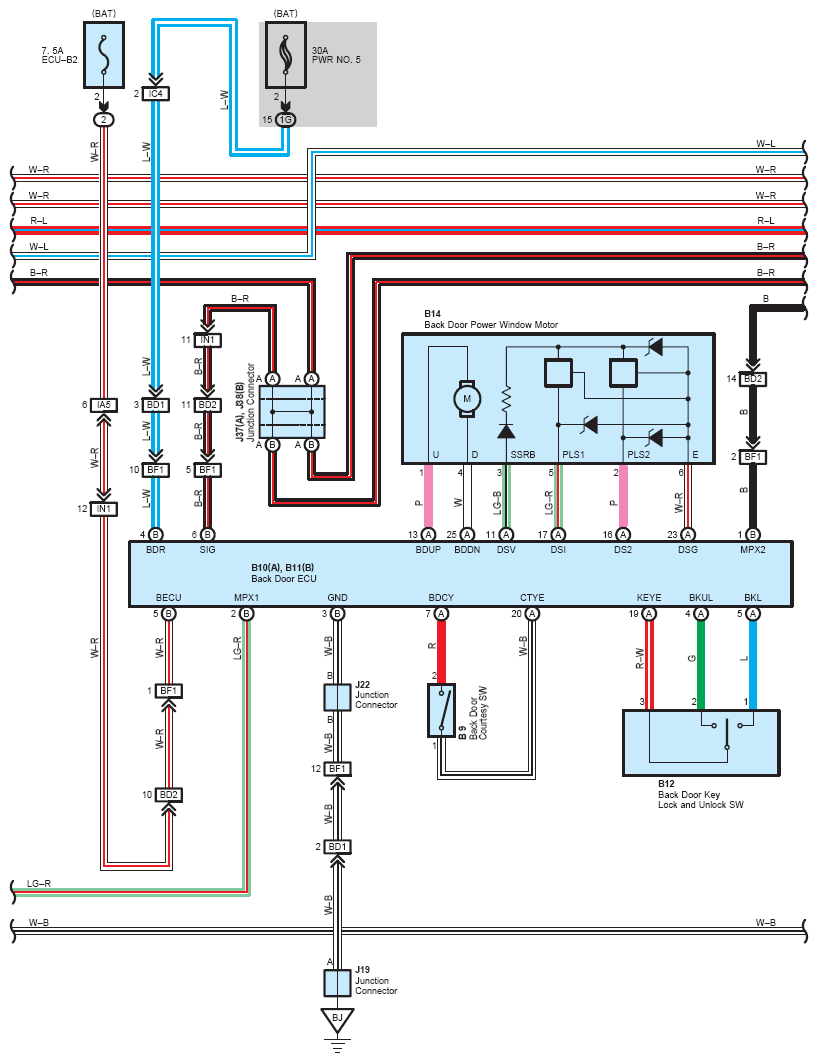

Fig 3: Power Window System Wiring Diagram (3 Of 4)
G08861595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

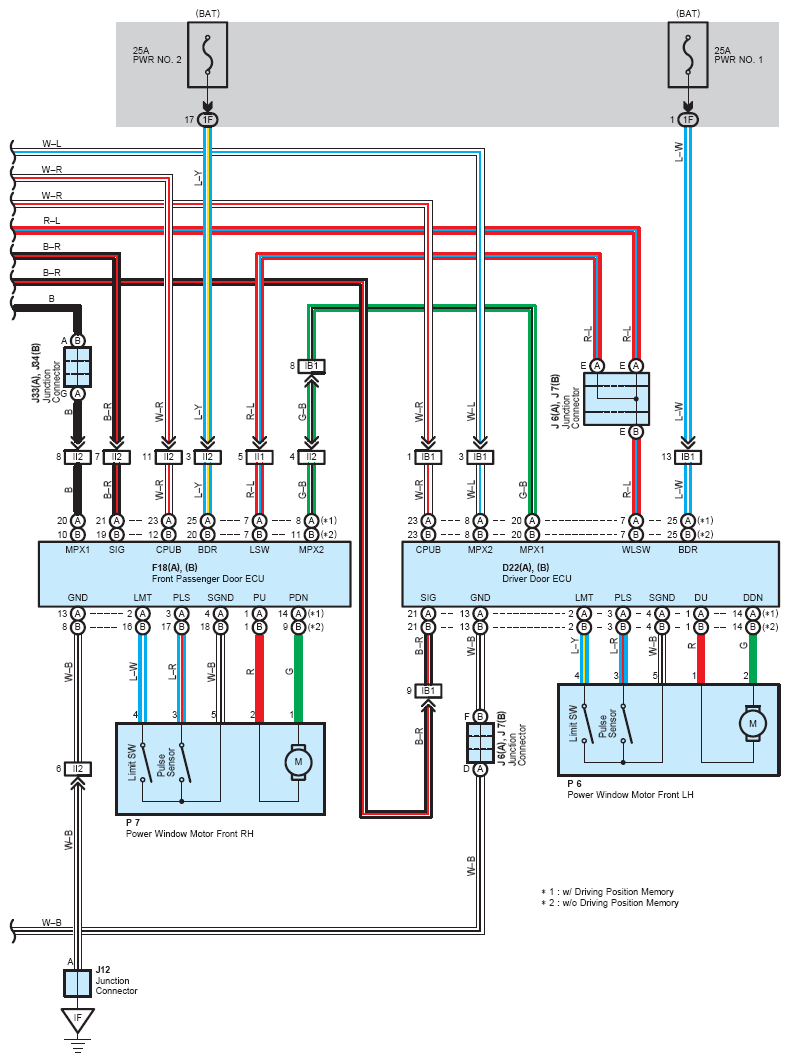

Fig 4: Power Window System Wiring Diagram (4 Of 4)
G08861596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
