Navigation and Audio System with RSES: Notes

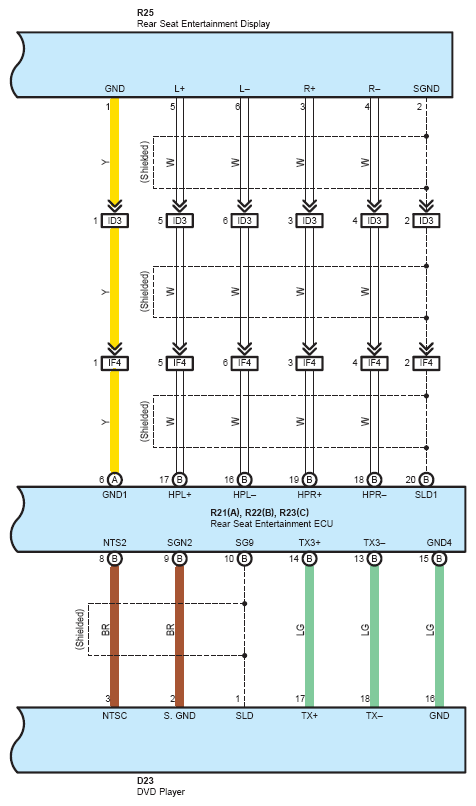

Fig 1: Navigation And Audio System (With RSES) Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

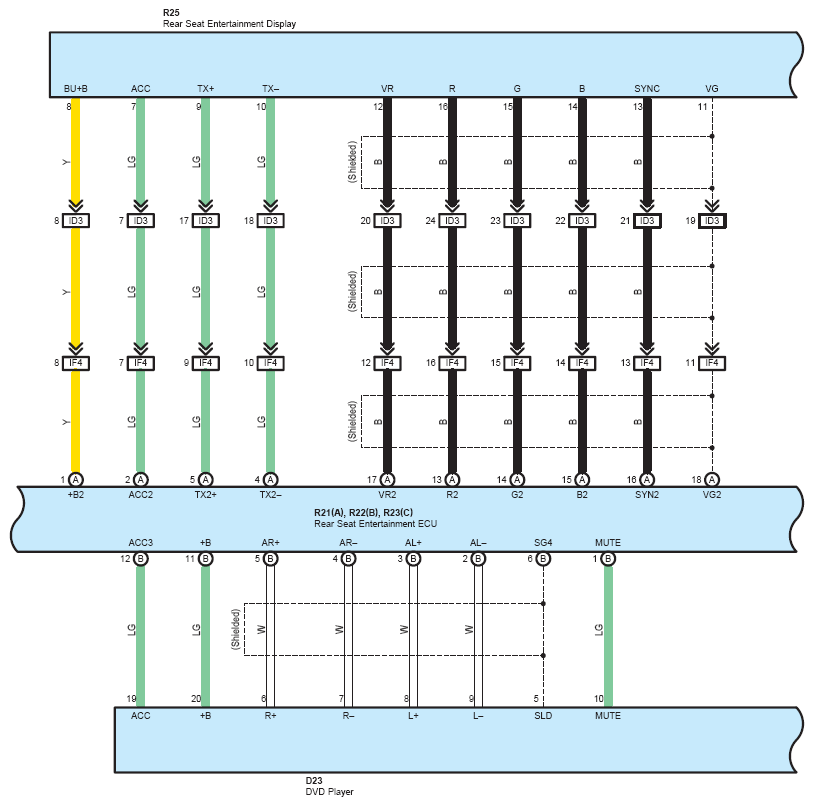

Fig 2: Navigation And Audio System (With RSES) Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

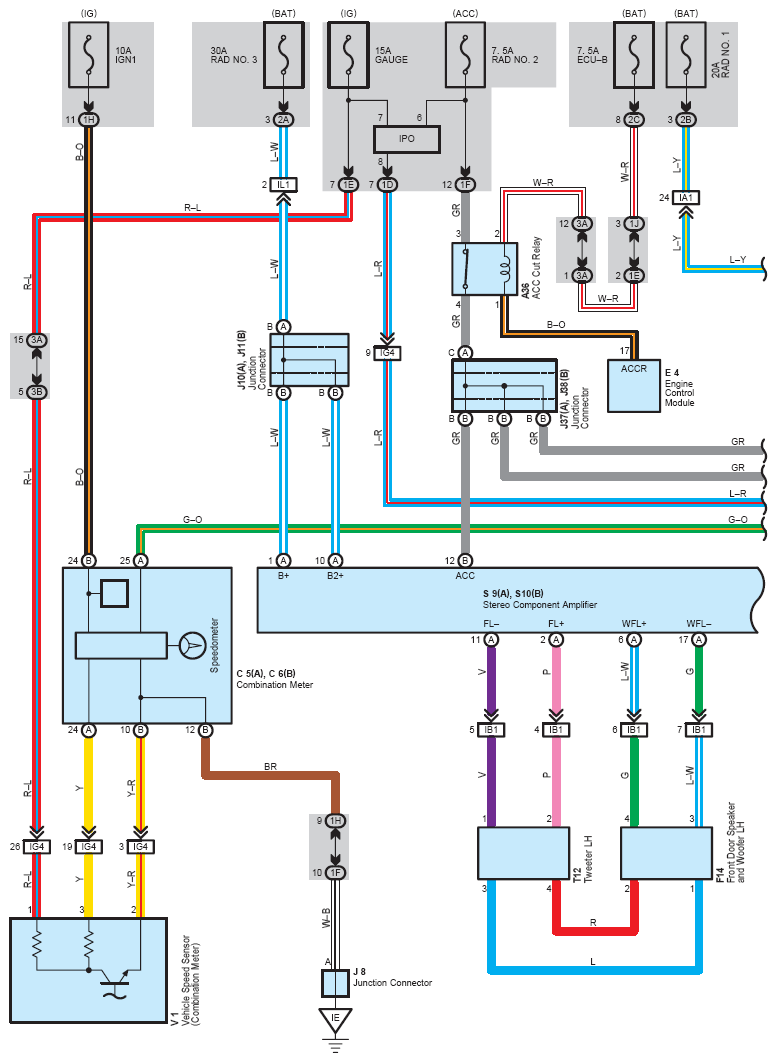

Fig 3: Navigation And Audio System (With RSES) Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

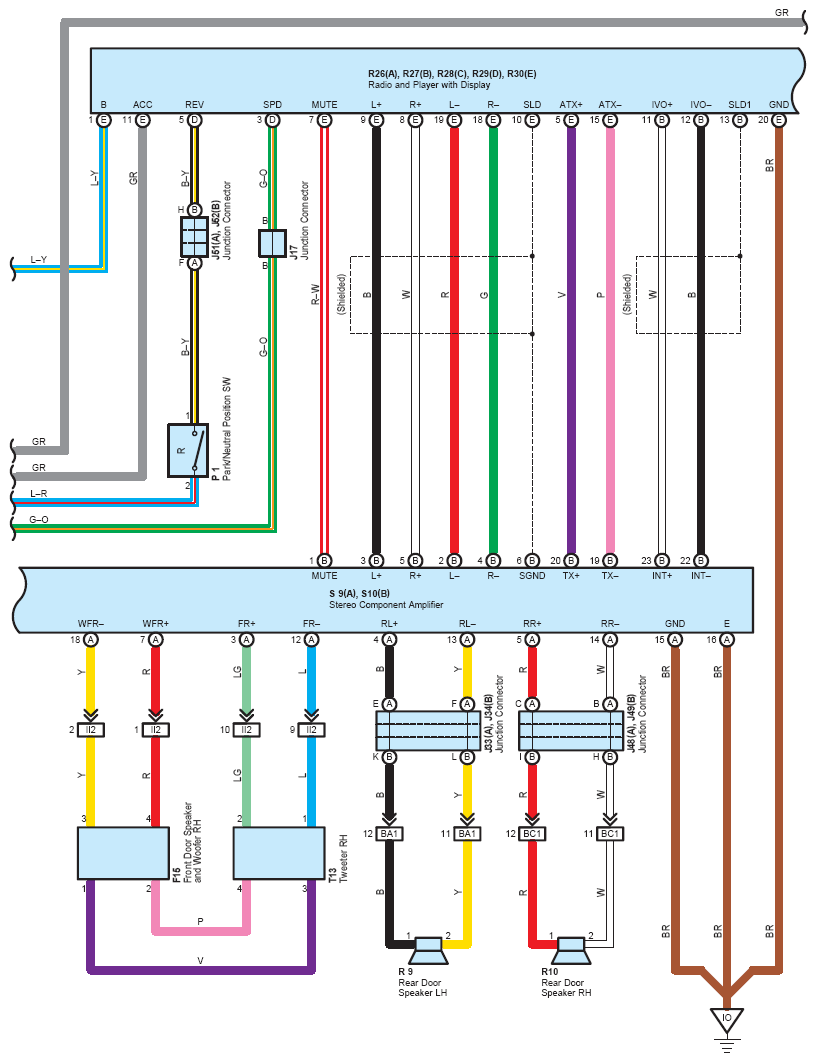

Fig 4: Navigation And Audio System (With RSES) Wiring Diagram (4 Of 6)

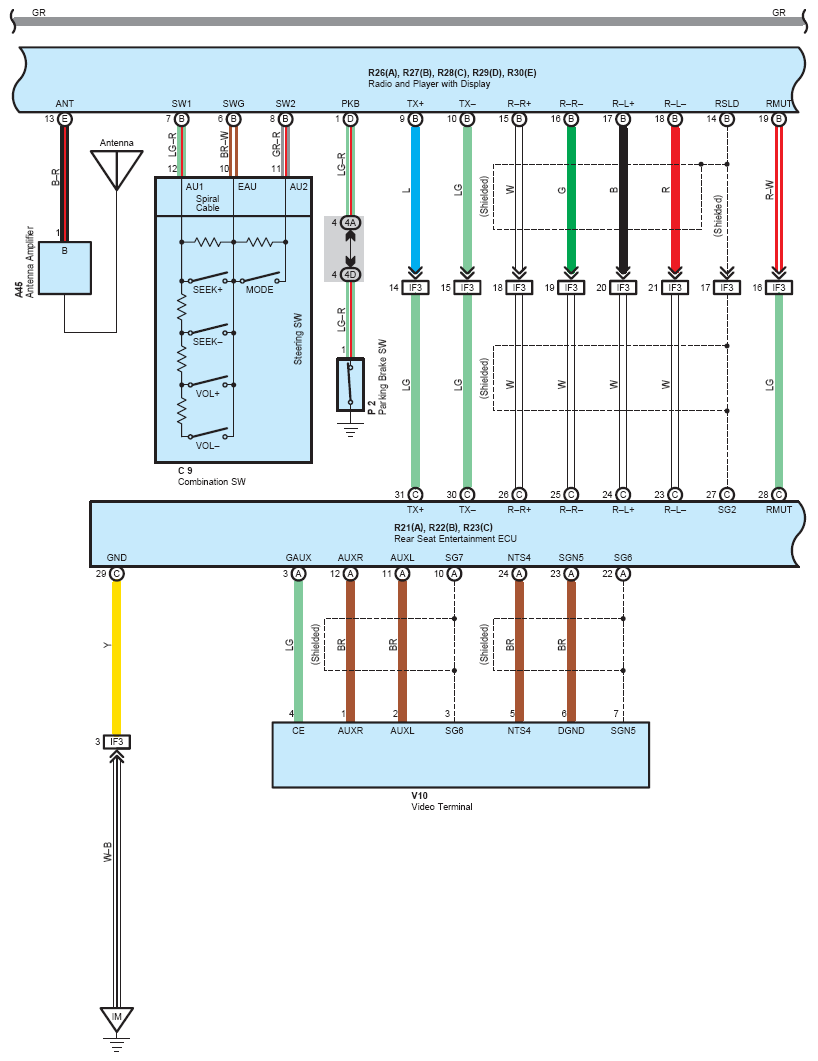

Fig 5: Navigation And Audio System (With RSES) Wiring Diagram (5 Of 6)

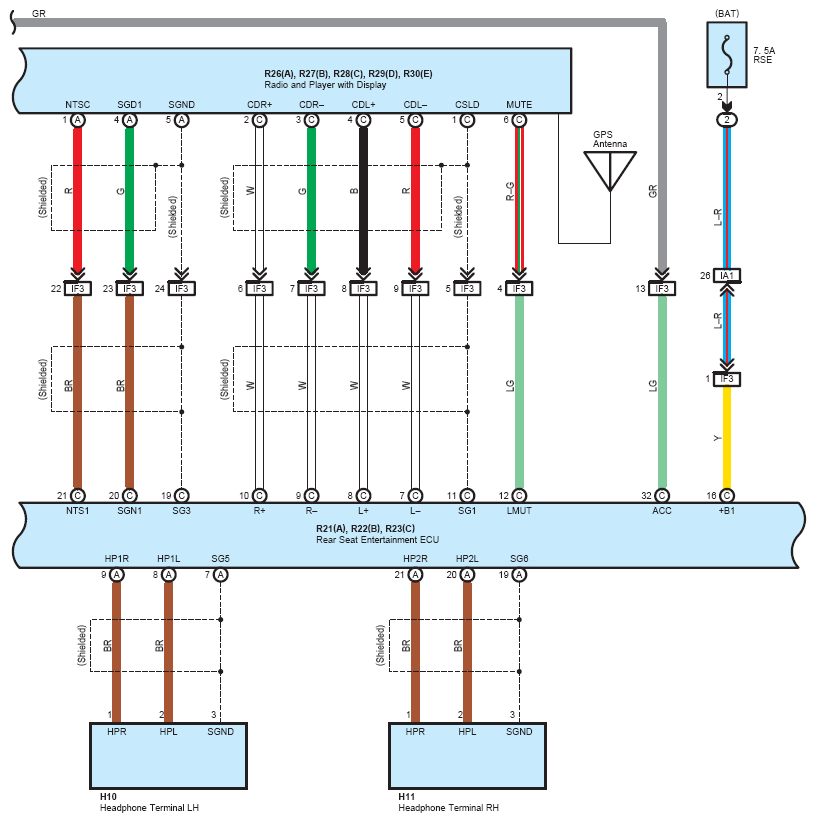

Fig 6: Navigation And Audio System (With RSES) Wiring Diagram (6 Of 6)
