Multiplex Communication System - CAN Bus: Notes

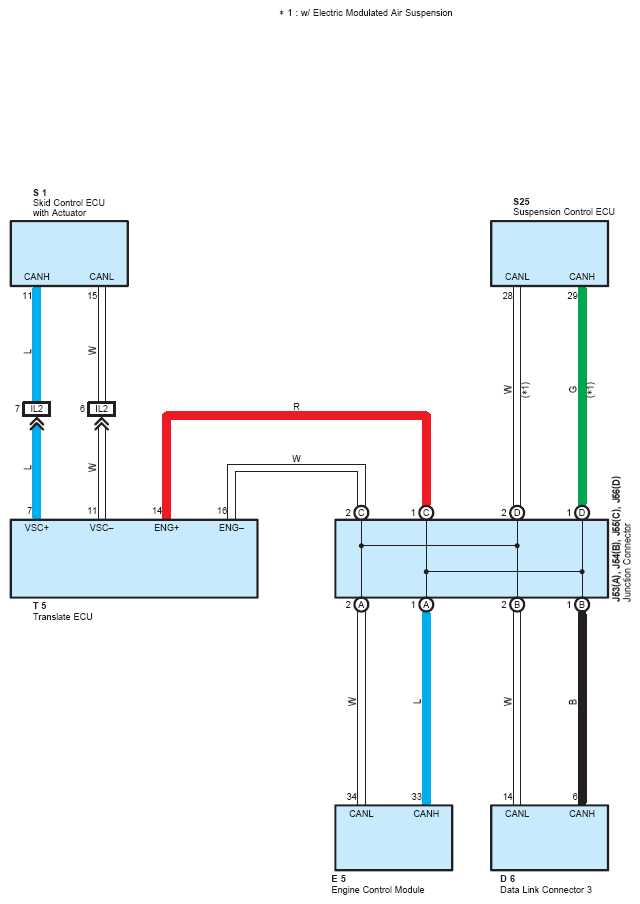

Fig 1: Multiplex Communication System Wiring Diagram (CAN Bus)

G08861562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
