Multiplex Communication System - BEAN: Notes

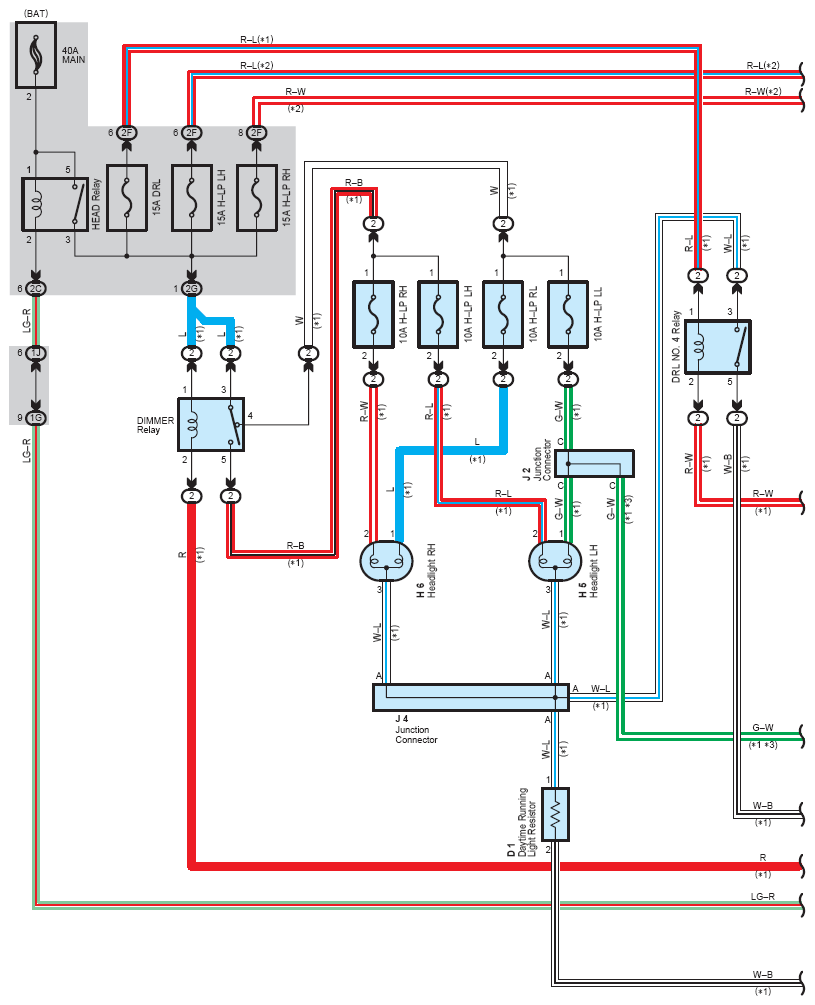

Fig 1: Multiplex Communication System (Bean) Wiring Diagram (1 Of 20)

G08861563

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

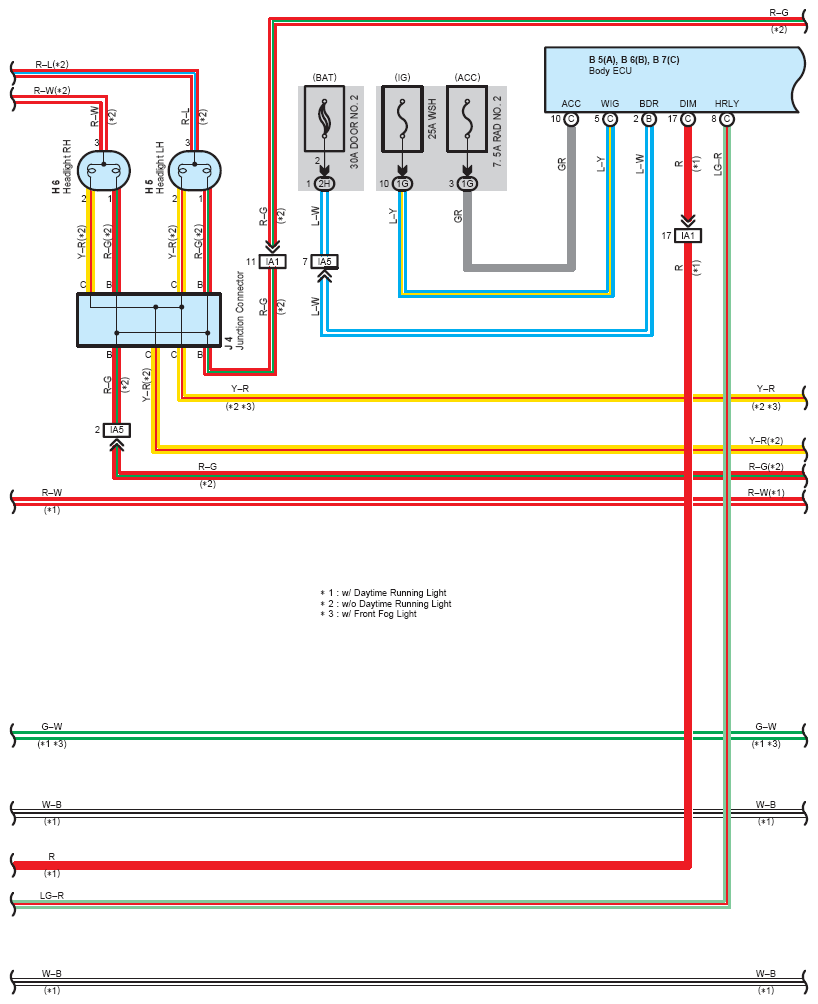

Fig 2: Multiplex Communication System (Bean) Wiring Diagram (2 Of 20)

G08861564

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

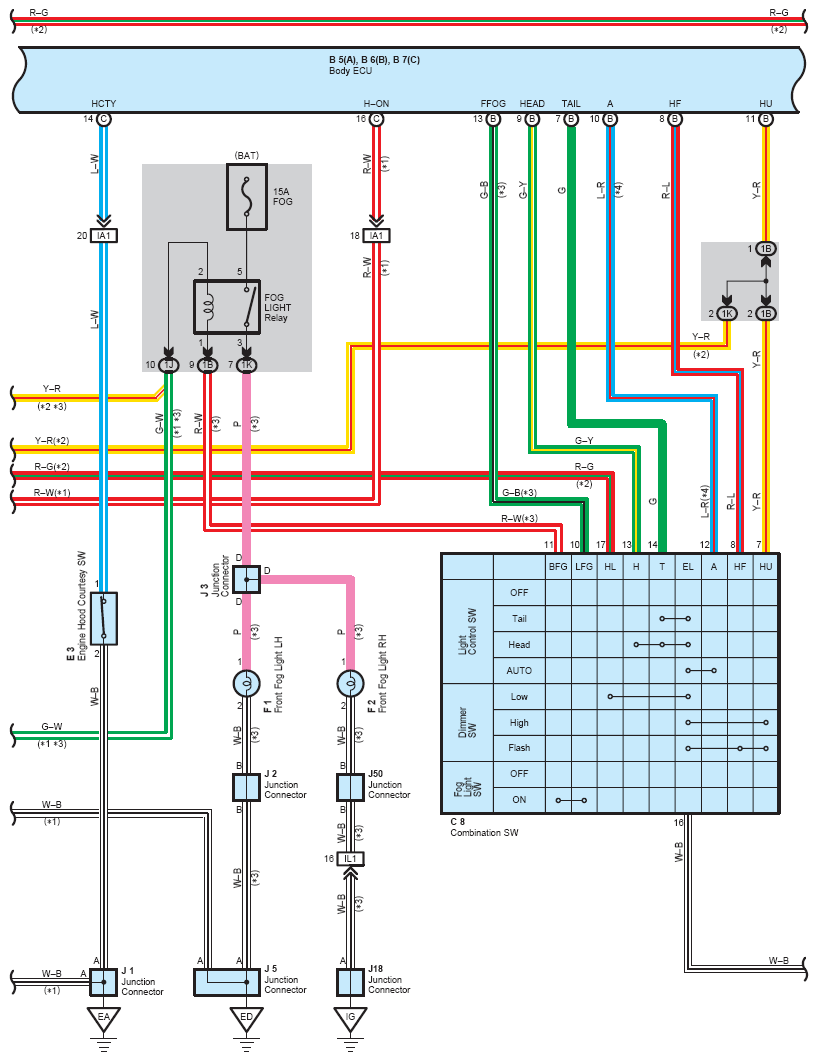

Fig 3: Multiplex Communication System (Bean) Wiring Diagram (3 Of 20)

G08861565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

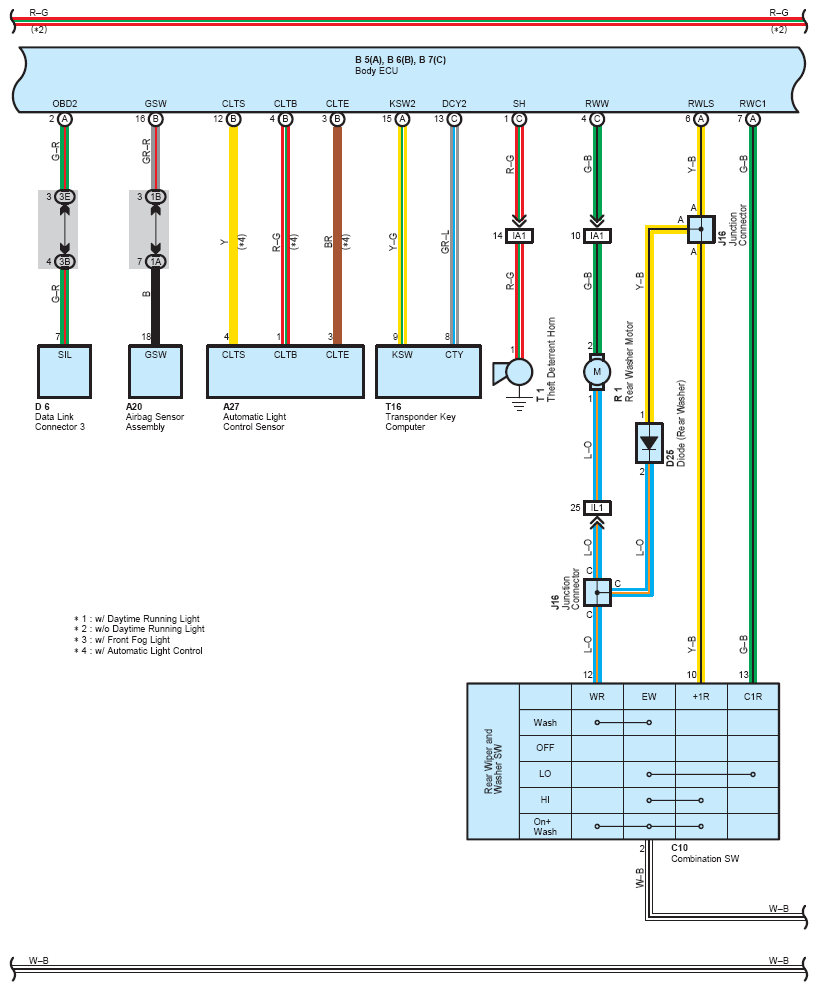

Fig 4: Multiplex Communication System (Bean) Wiring Diagram (4 Of 20)

G08861566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

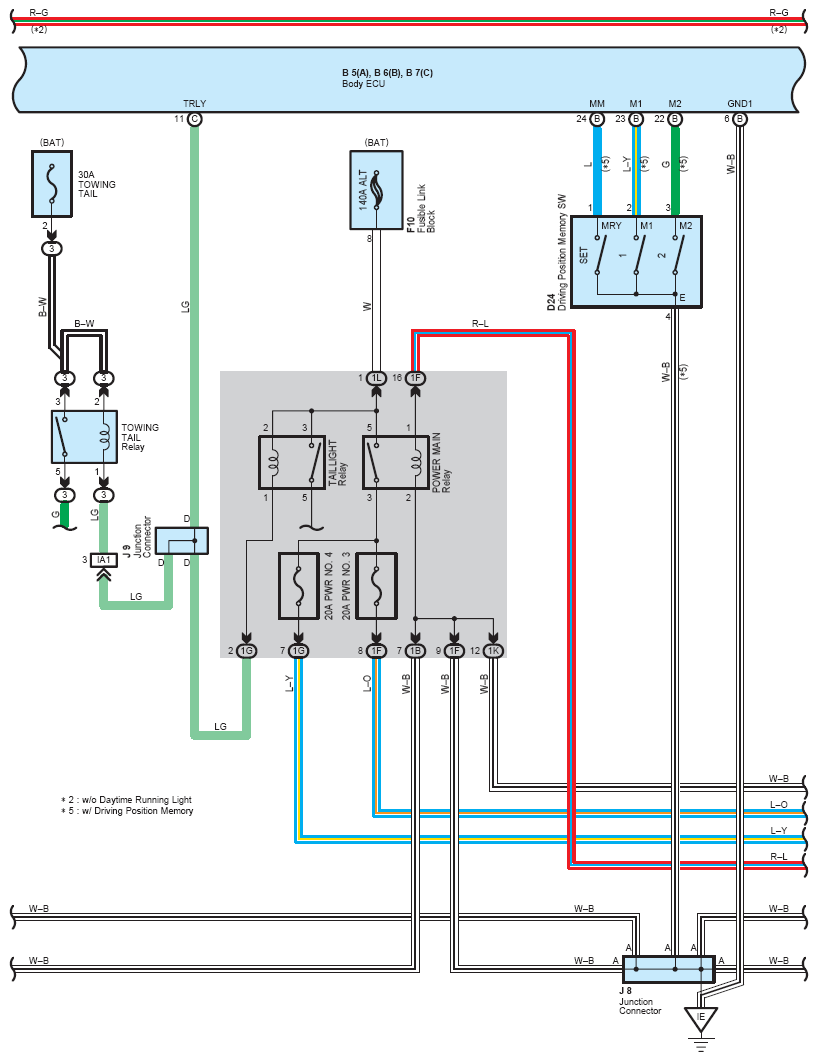

Fig 5: Multiplex Communication System (Bean) Wiring Diagram (5 Of 20)

G08861567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

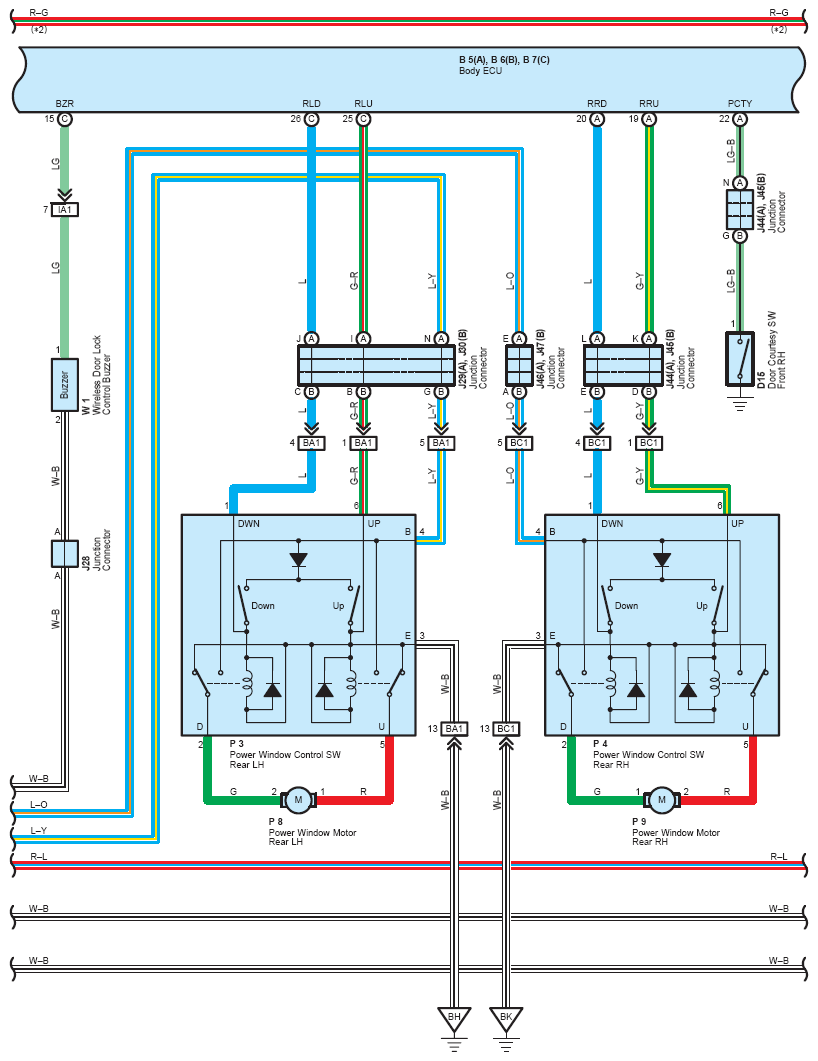

Fig 6: Multiplex Communication System (Bean) Wiring Diagram (6 Of 20)

G08861568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

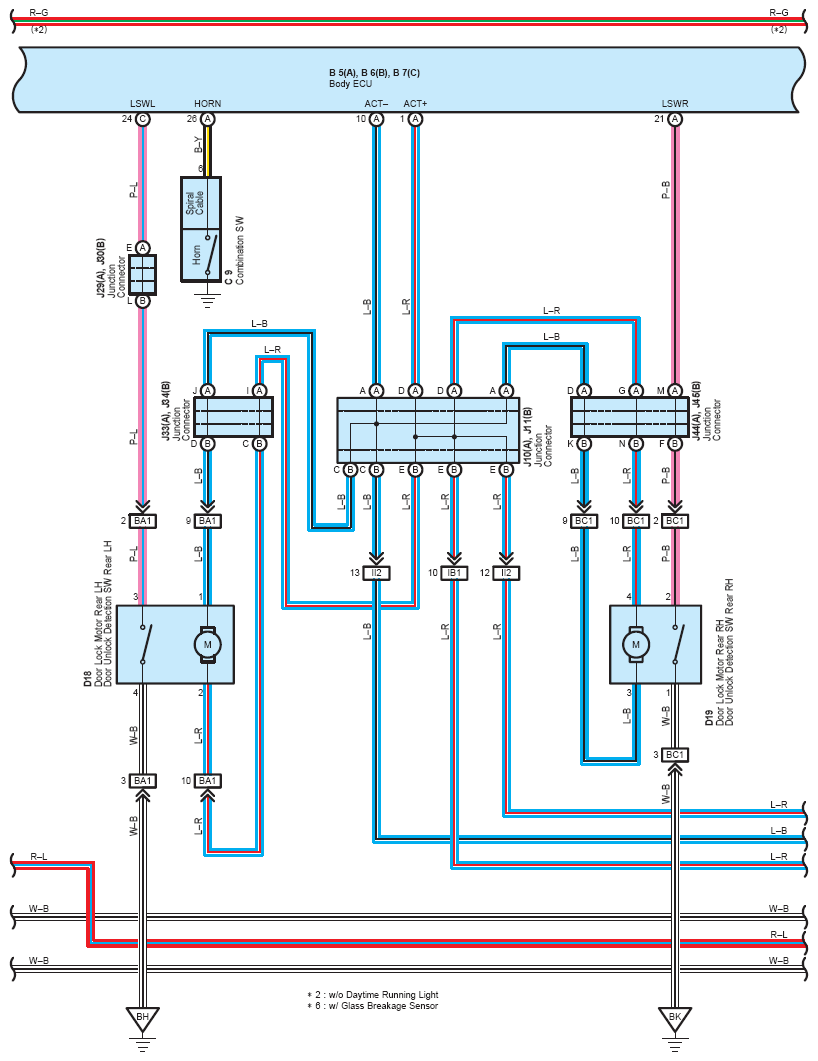

Fig 7: Multiplex Communication System (Bean) Wiring Diagram (7 Of 20)

G08861569

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

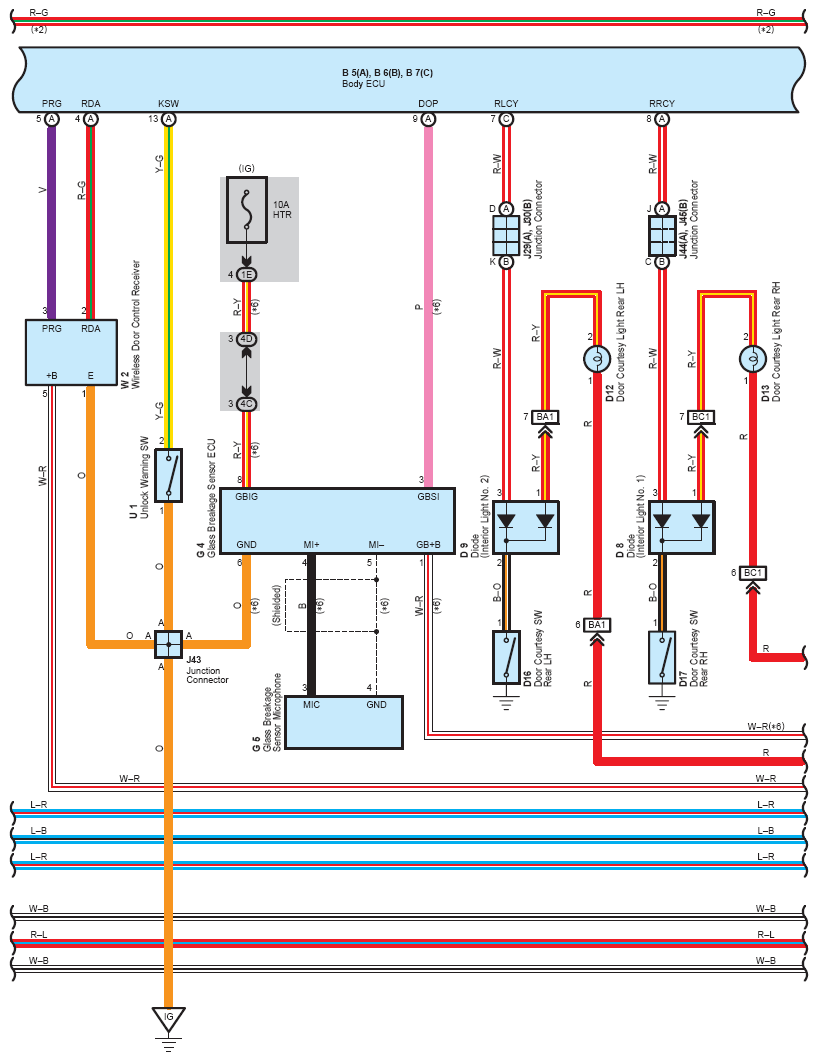

Fig 8: Multiplex Communication System (Bean) Wiring Diagram (8 Of 20)

G08861570

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Multiplex Communication System (Bean) Wiring Diagram (9 Of 20)

G08861571

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

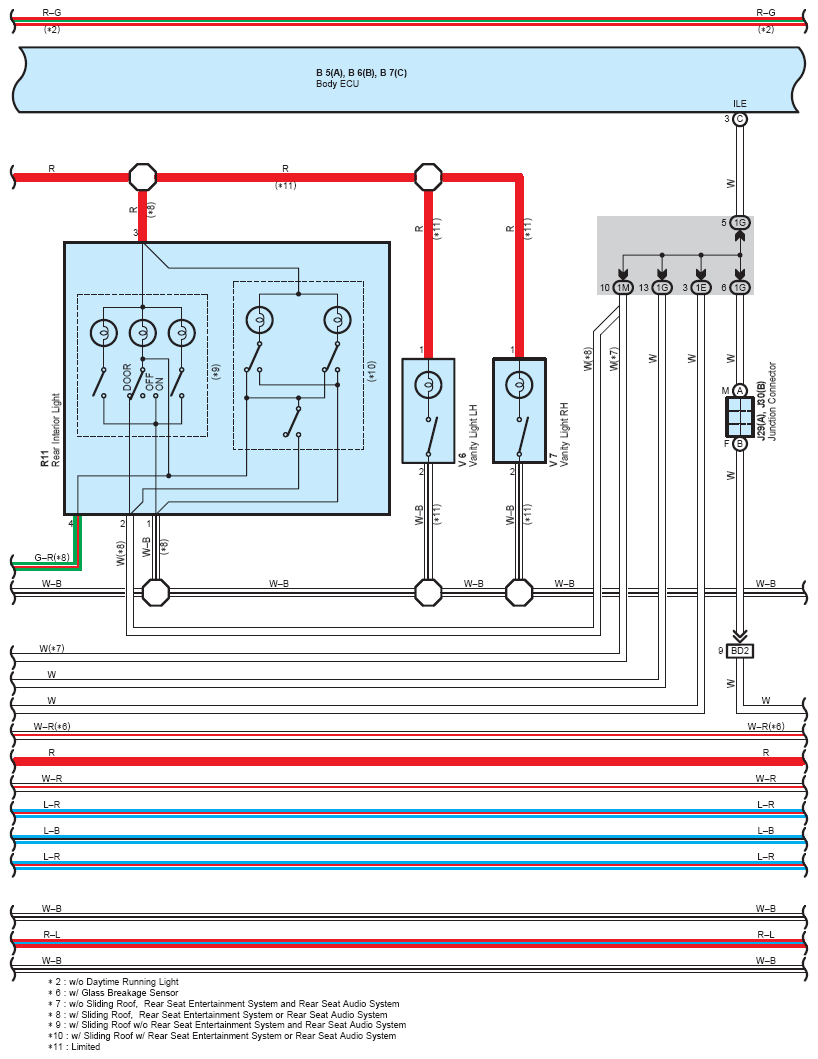

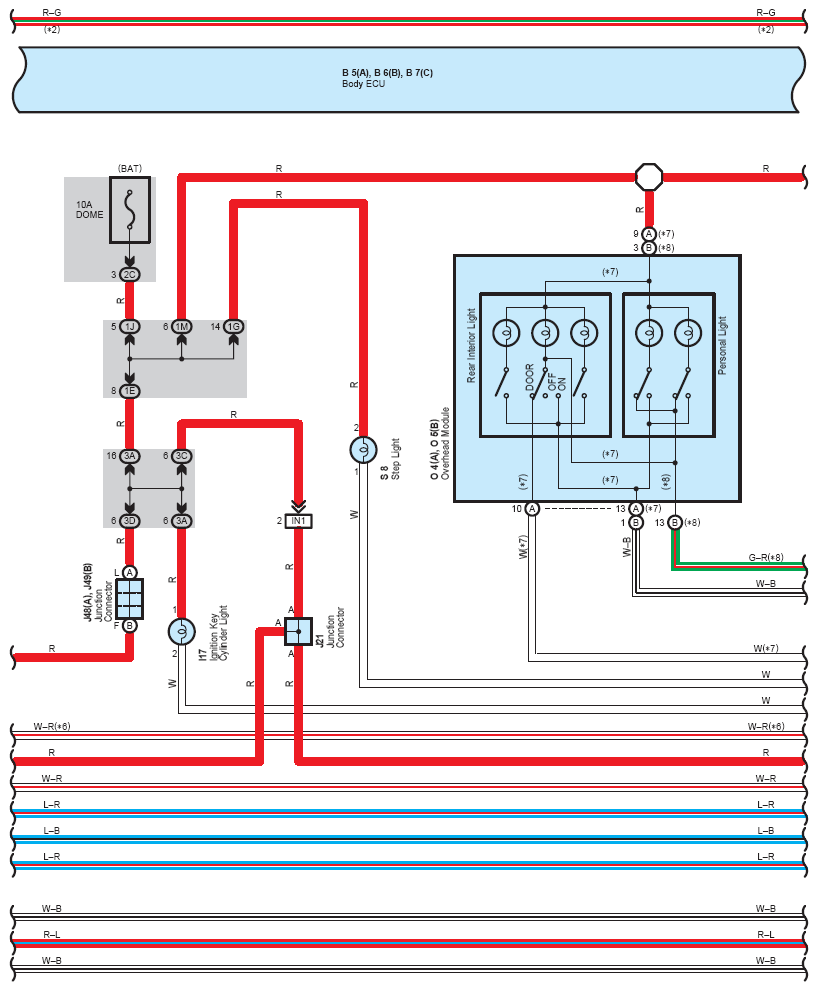

Fig 10: Multiplex Communication System (Bean) Wiring Diagram (10 Of 20)

G08861572

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

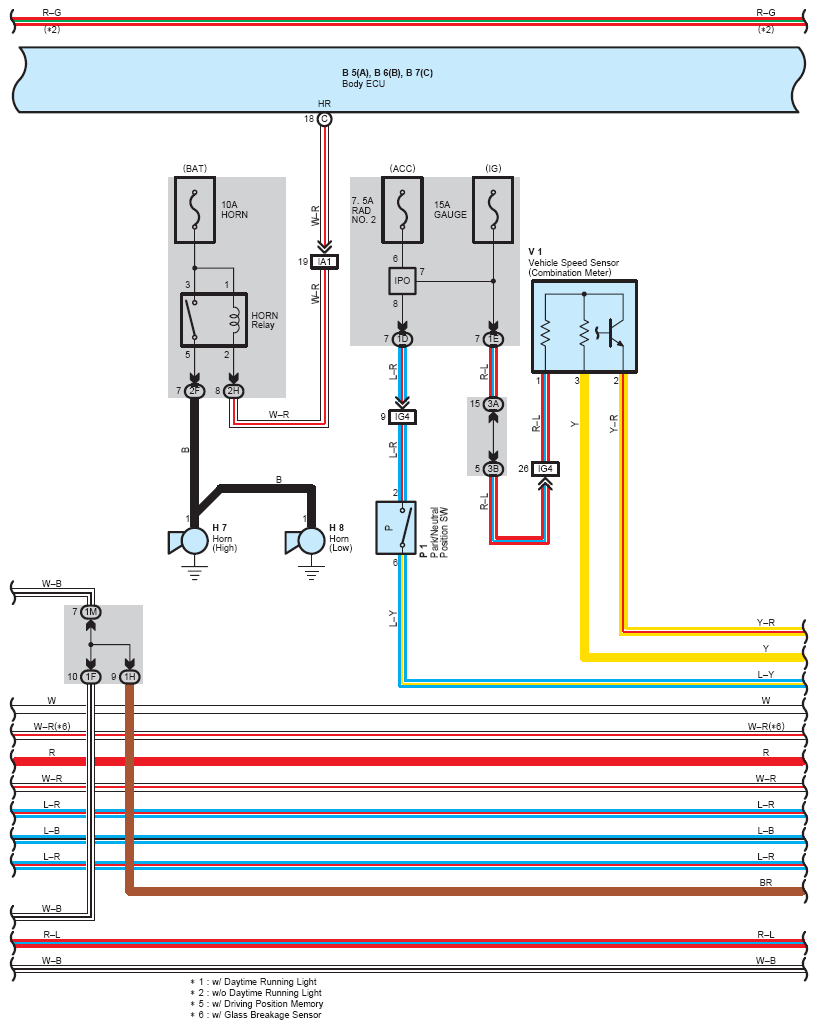

Fig 11: Multiplex Communication System (Bean) Wiring Diagram (11 Of 20)

G08861573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

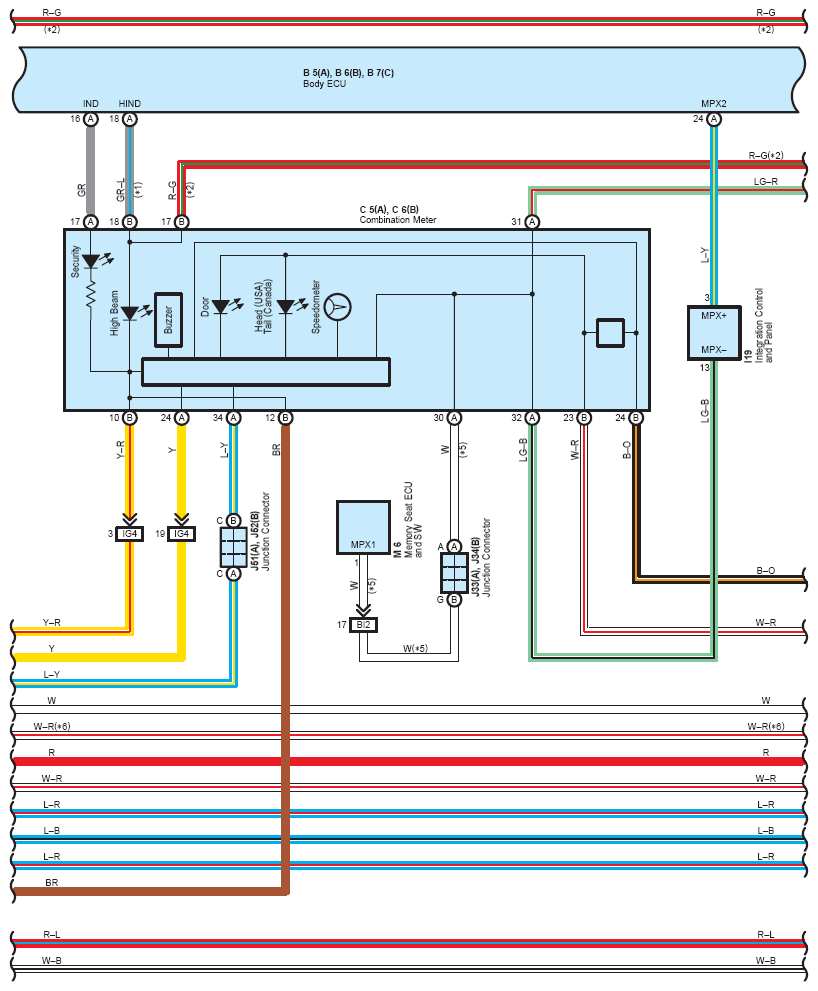

Fig 12: Multiplex Communication System (Bean) Wiring Diagram (12 Of 20)

G08861574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

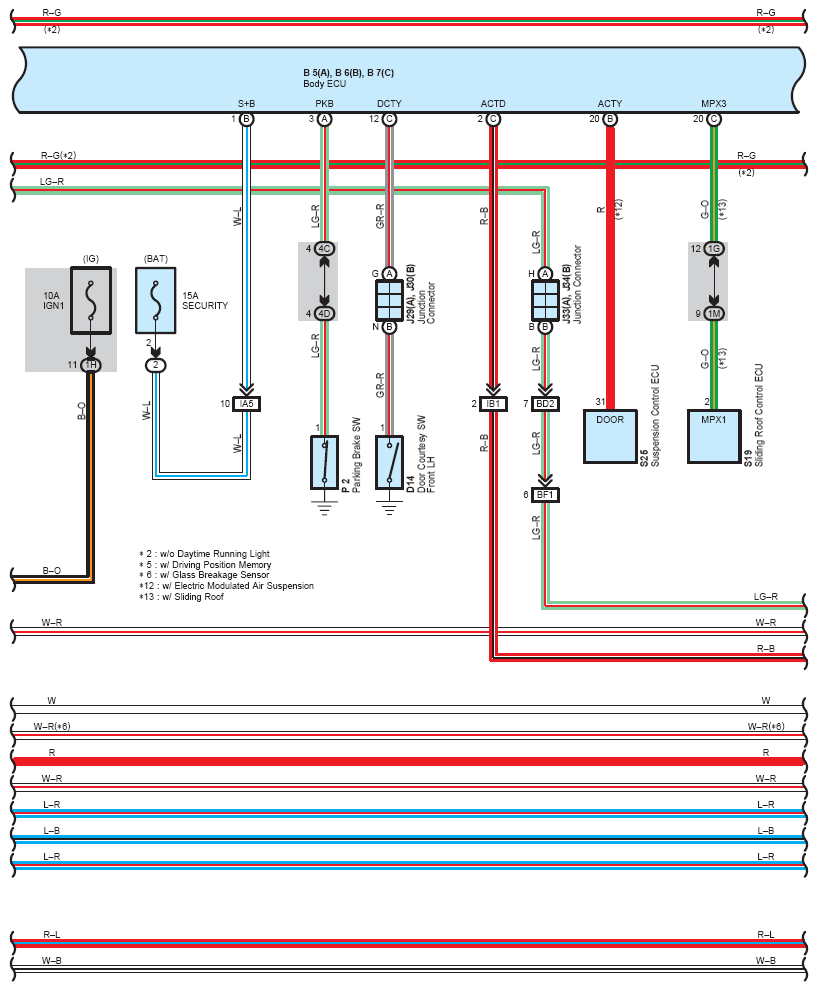

Fig 13: Multiplex Communication System (Bean) Wiring Diagram (13 Of 20)

G08861575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

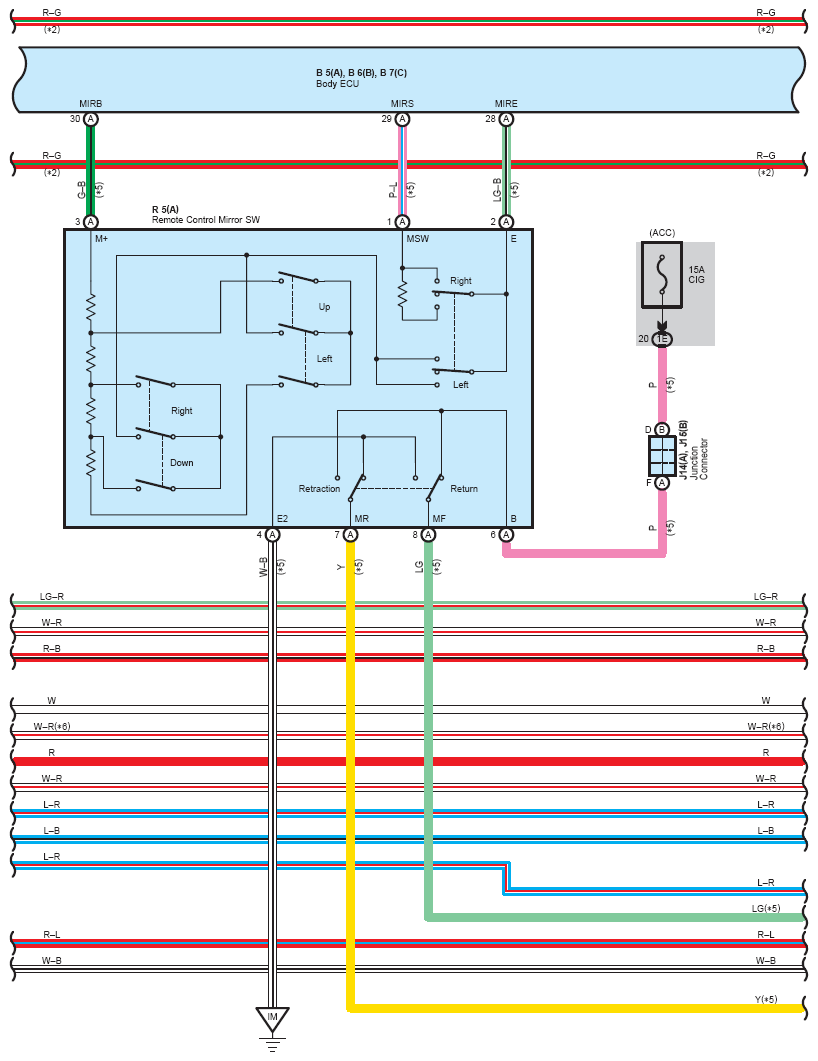

Fig 14: Multiplex Communication System (Bean) Wiring Diagram (14 Of 20)

G08861576

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

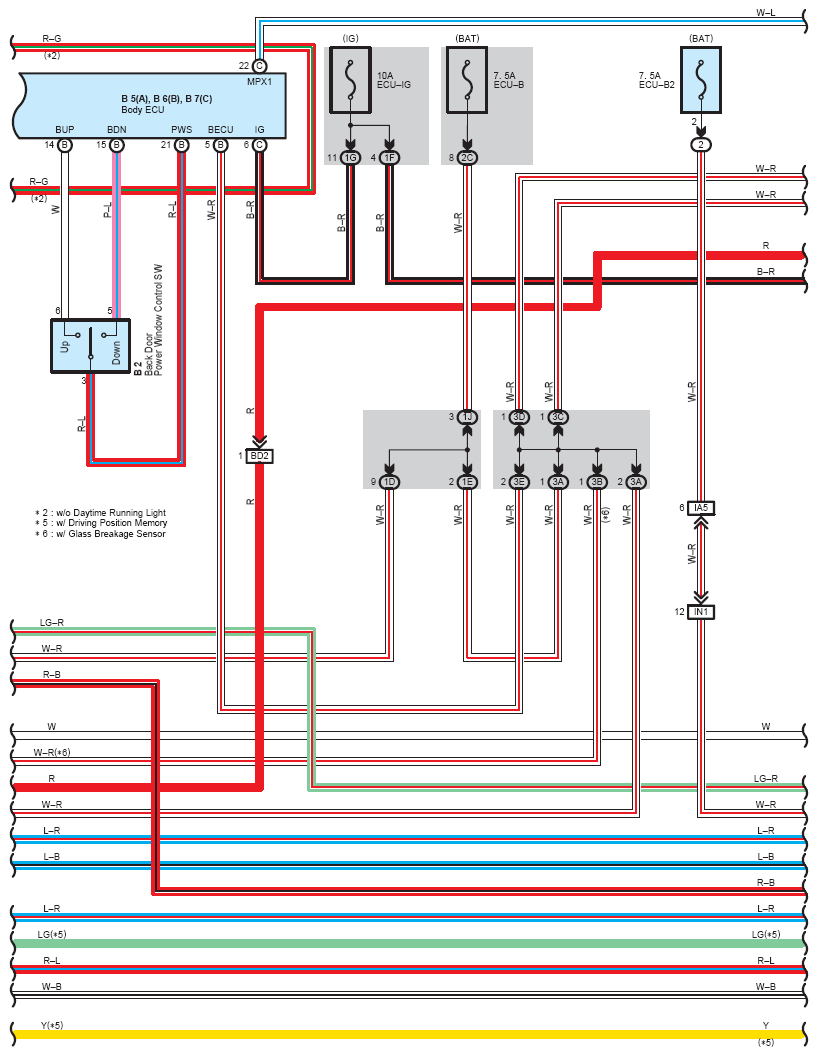

Fig 15: Multiplex Communication System (Bean) Wiring Diagram (15 Of 20)

G08861577

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

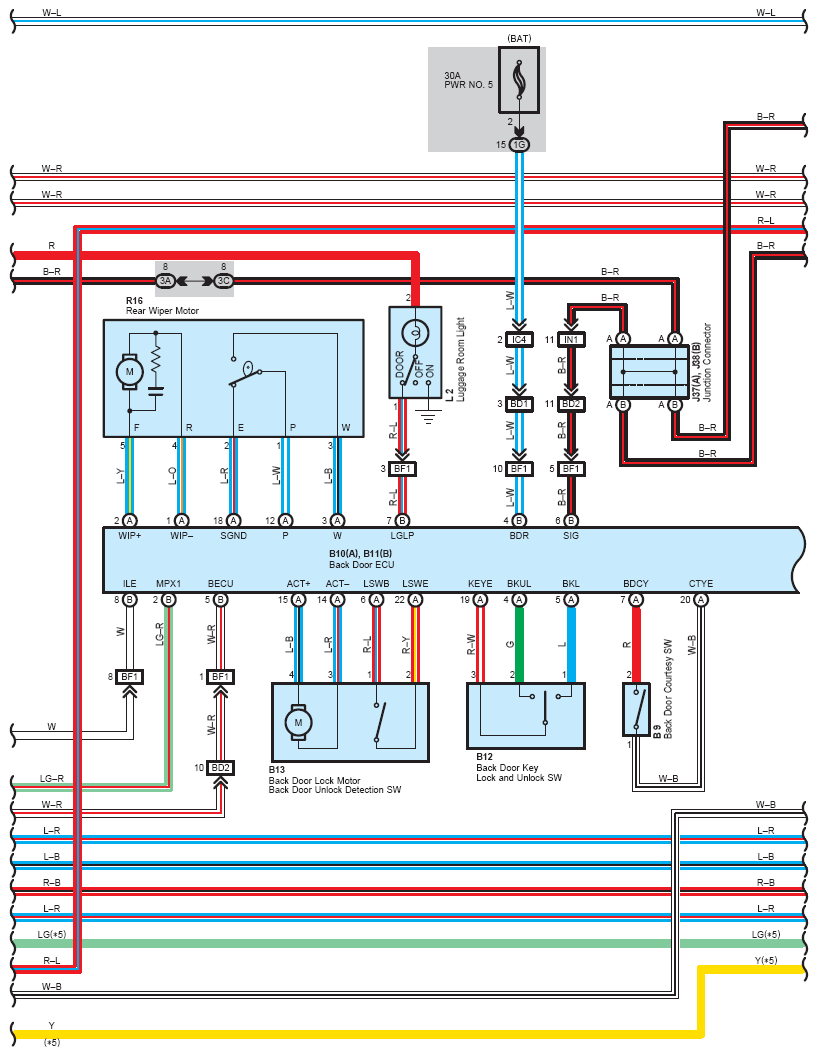

Fig 16: Multiplex Communication System (Bean) Wiring Diagram (16 Of 20)

G08861578

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Multiplex Communication System (Bean) Wiring Diagram (17 Of 20)

G08861579

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

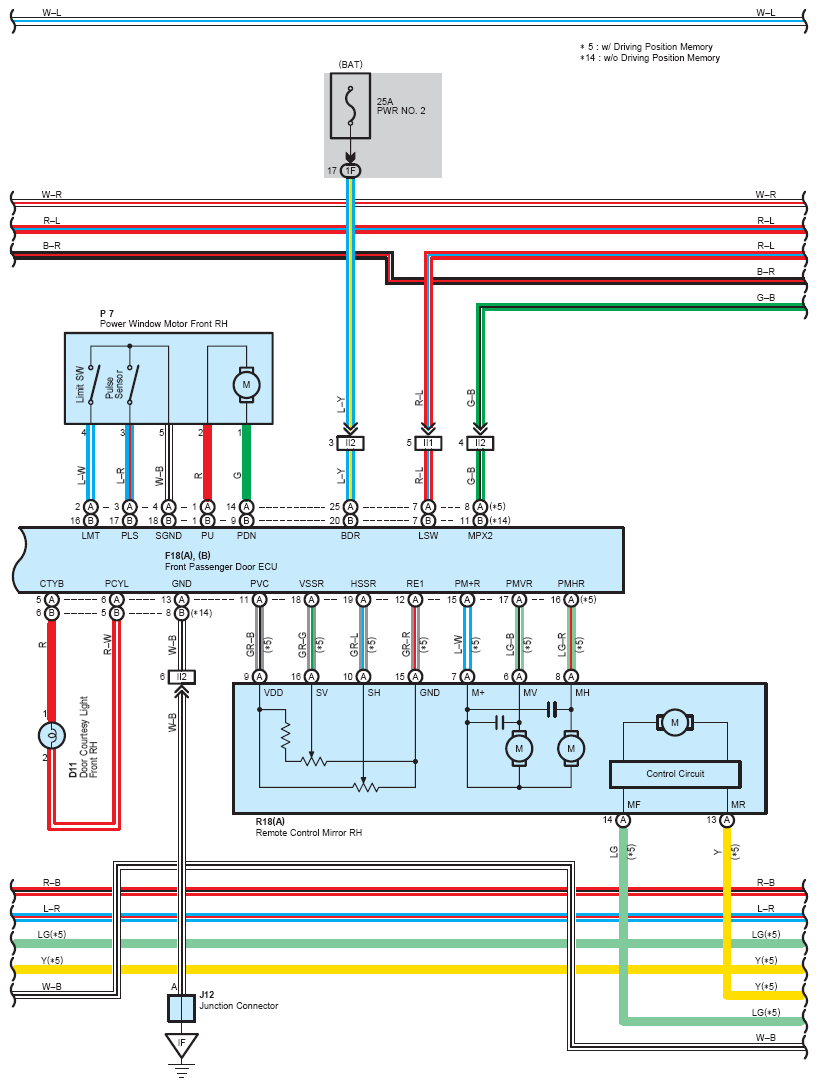

Fig 18: Multiplex Communication System (Bean) Wiring Diagram (18 Of 20)

G08861580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

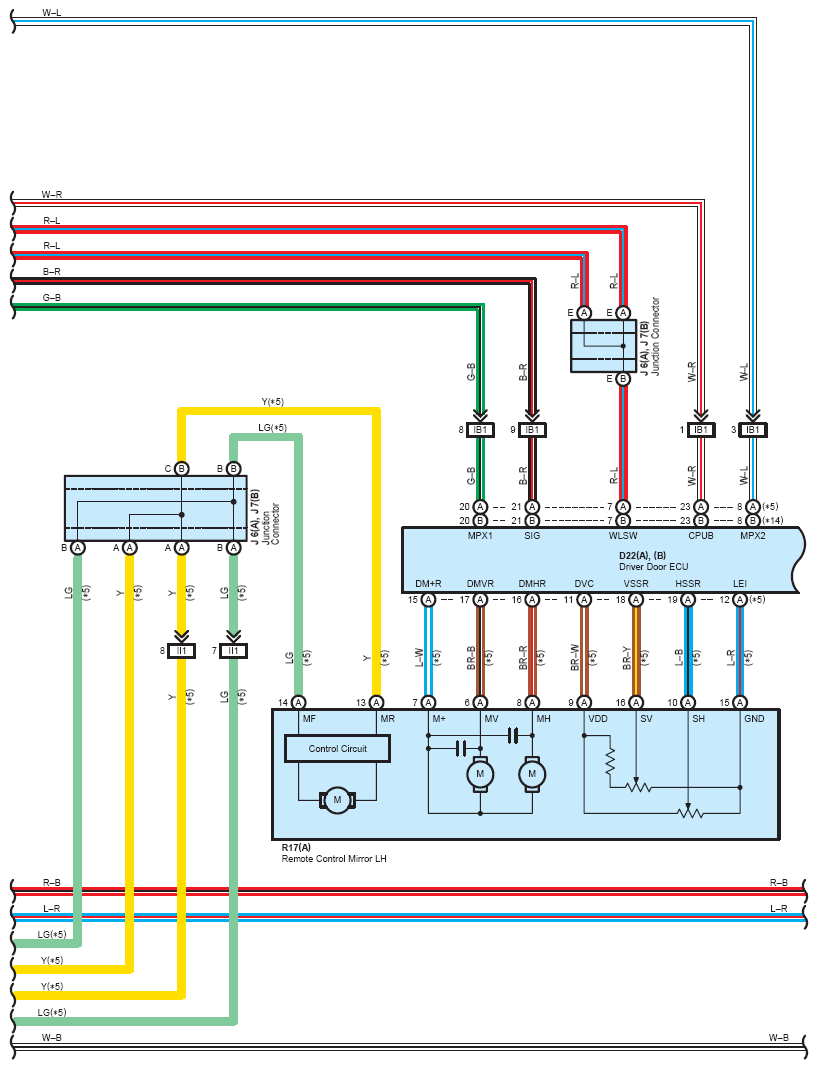

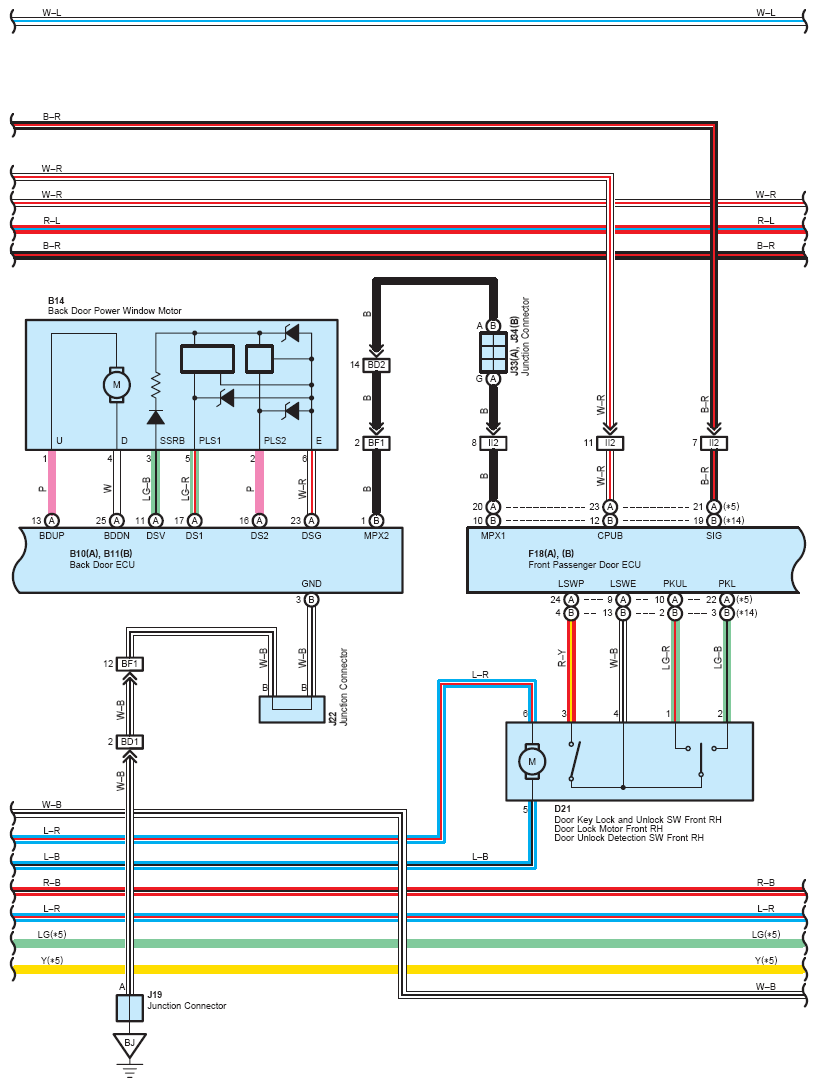

Fig 19: Multiplex Communication System (Bean) Wiring Diagram (19 Of 20)

G08861581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

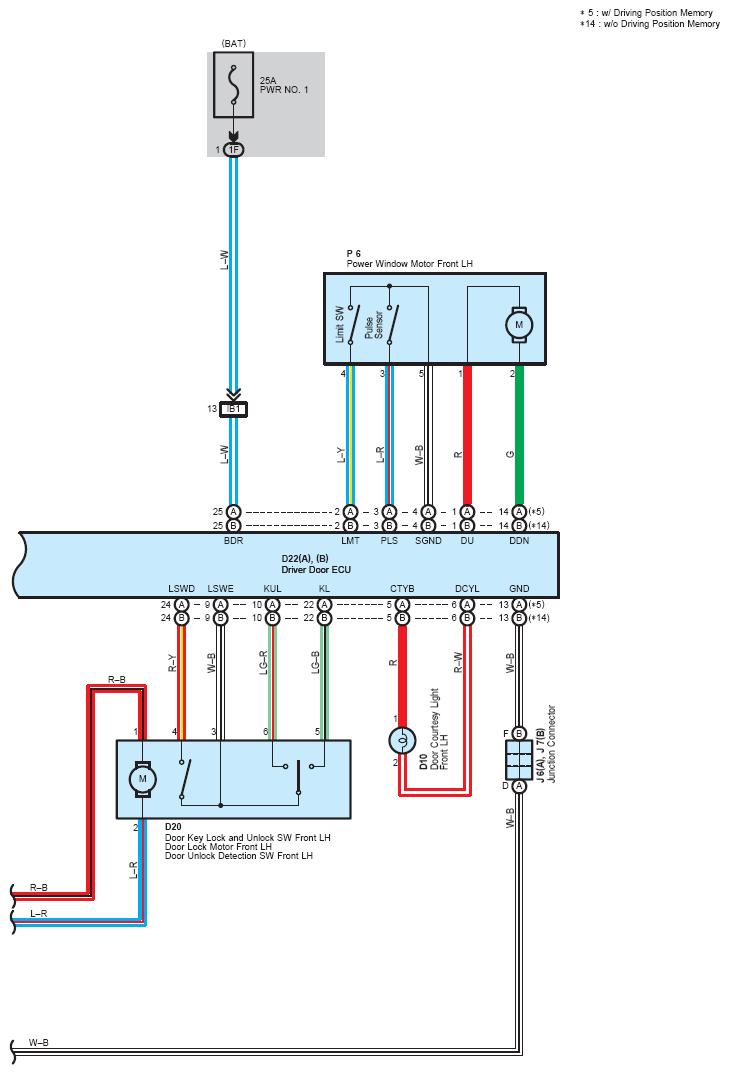

Fig 20: Multiplex Communication System (Bean) Wiring Diagram (20 Of 20)

G08861582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
