Multiplex Communication System - BEAN Bus: Notes

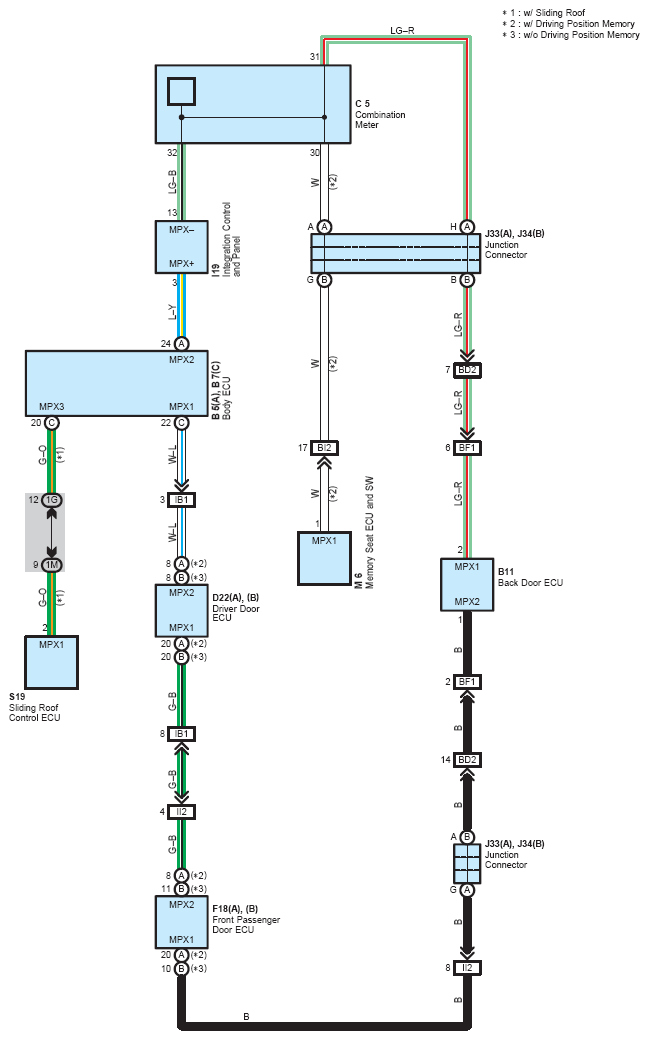

Fig 1: Multiplex Communication System Wiring Diagram (BEAN Bus)

G08861561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
