Electric Modulated Air Suspension: Notes

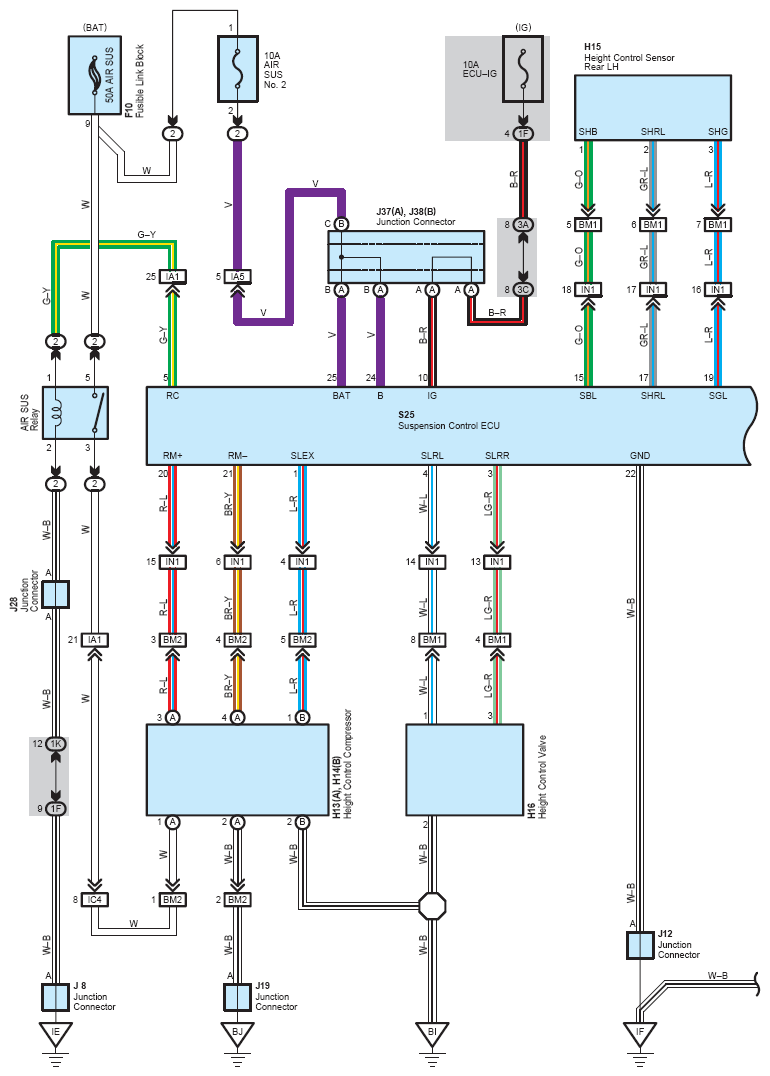

Fig 1: Electric Modulated Air Suspension System Wiring Diagram (1 Of 3)
G08861628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

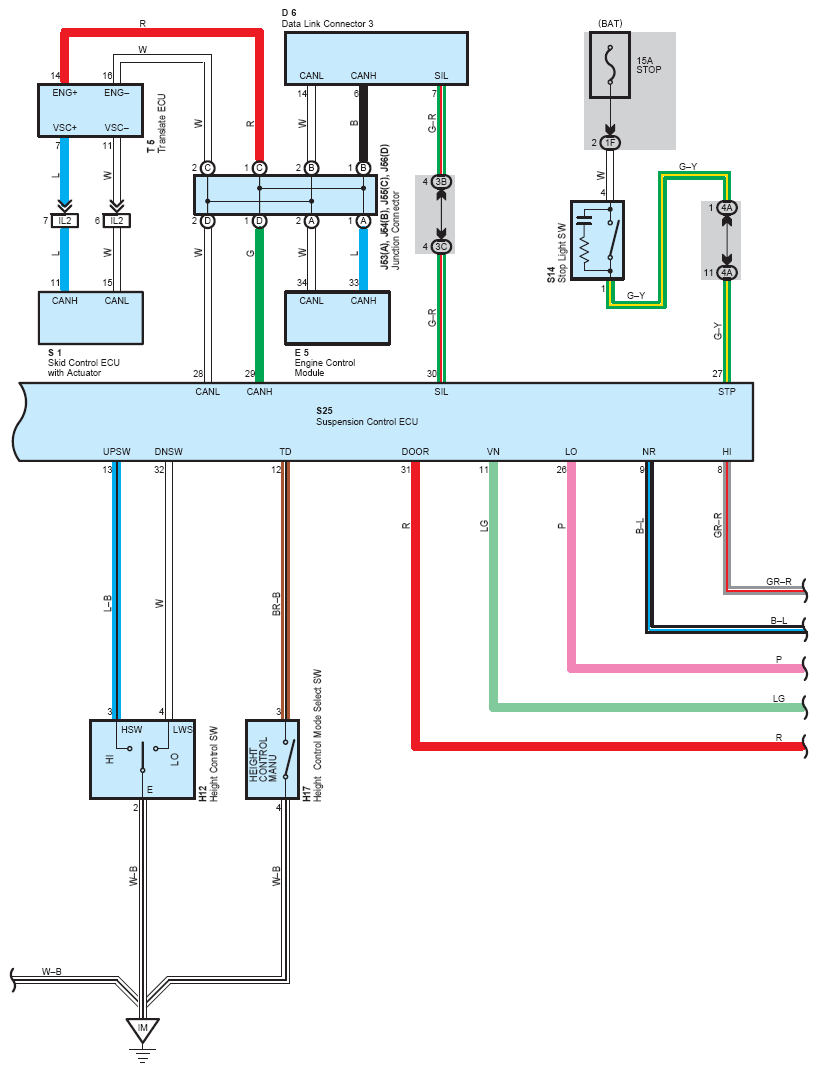

Fig 2: Electric Modulated Air Suspension System Wiring Diagram (2 Of 3)
G08861629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

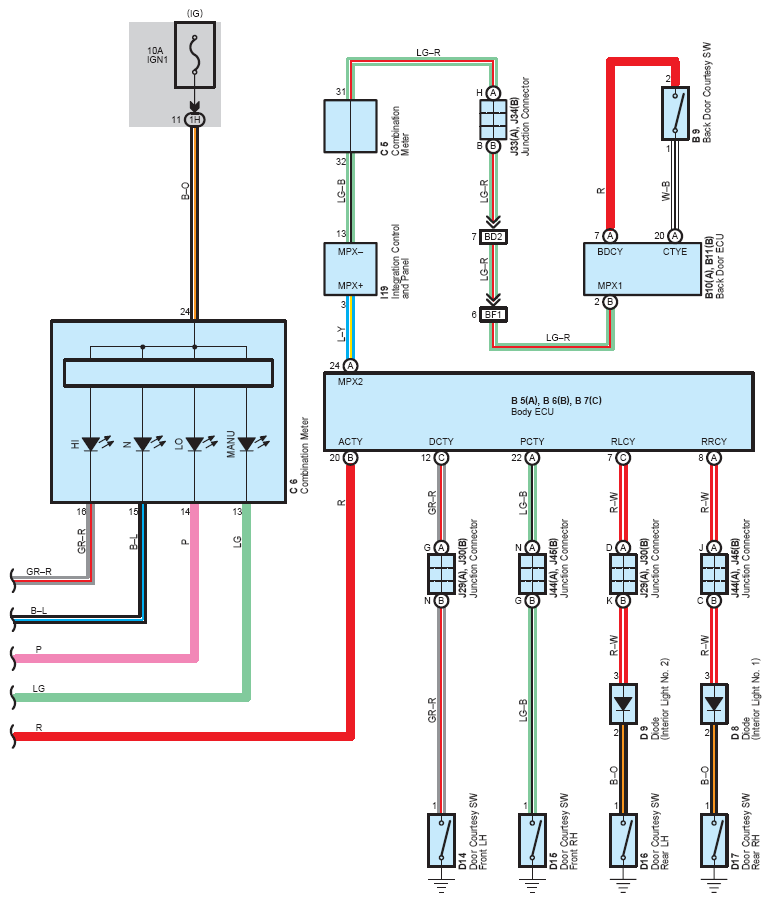

Fig 3: Electric Modulated Air Suspension System Wiring Diagram (3 Of 3)
G08861630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
