Audio System with 10 Speaker: Notes

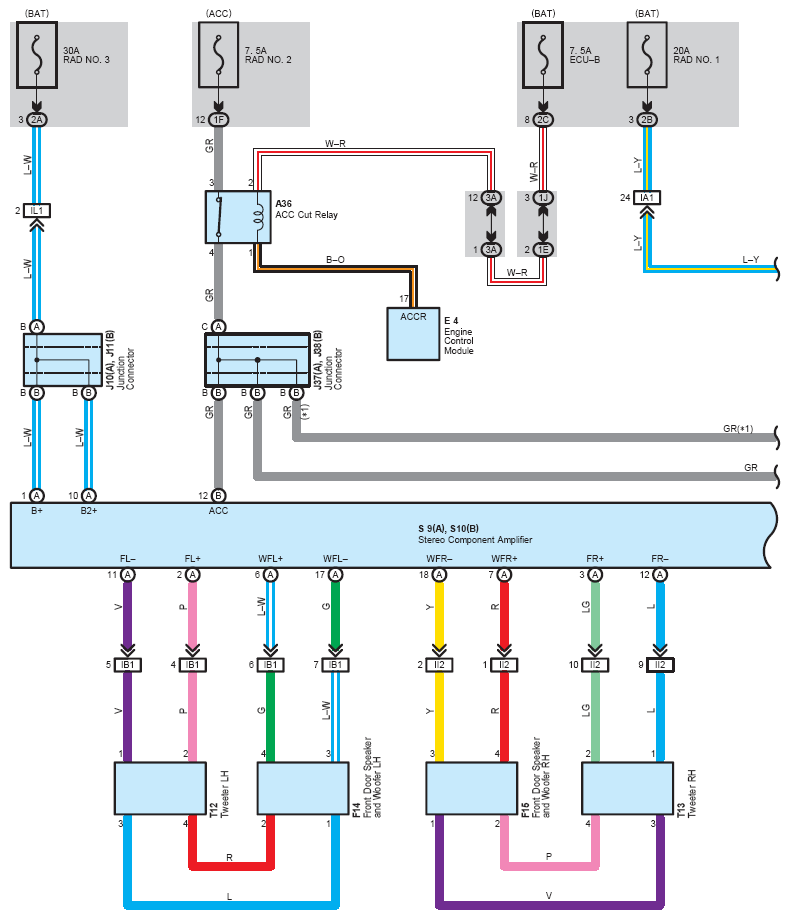

Fig 1: Audio System (With 10 Speaker) Wiring Diagram (1 Of 3)
G08861672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

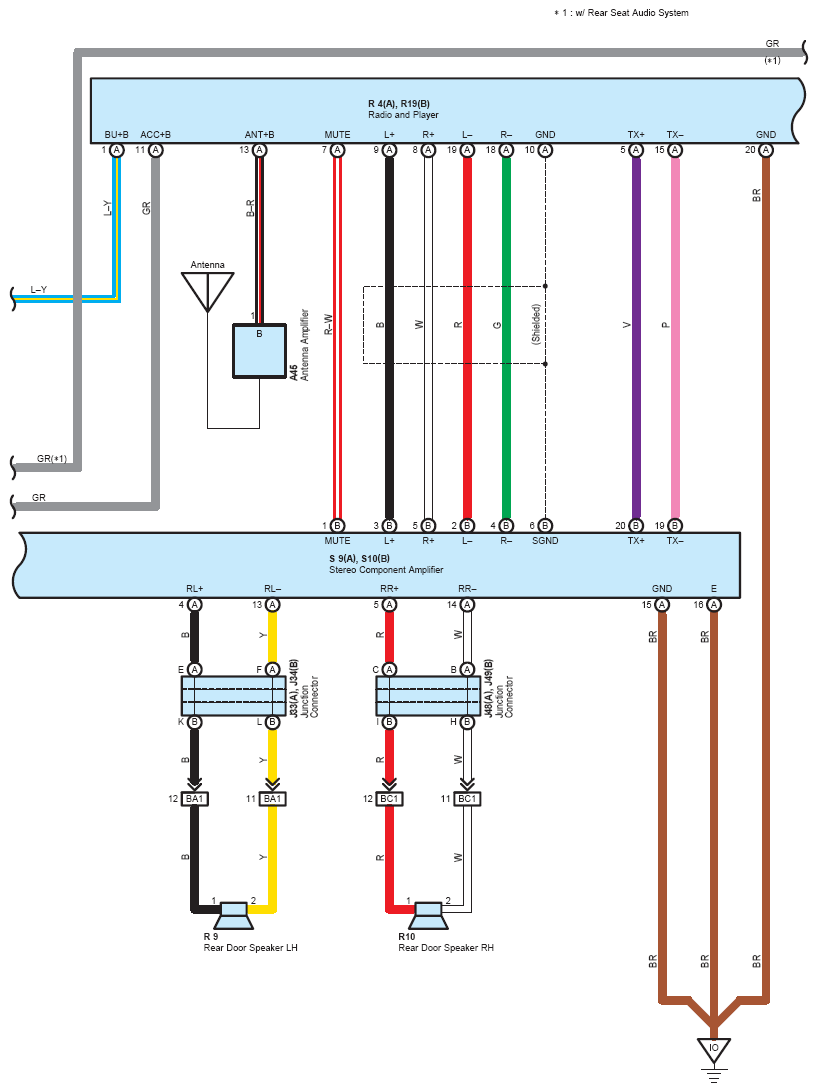

Fig 2: Audio System (With 10 Speaker) Wiring Diagram (2 Of 3)
G08861673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

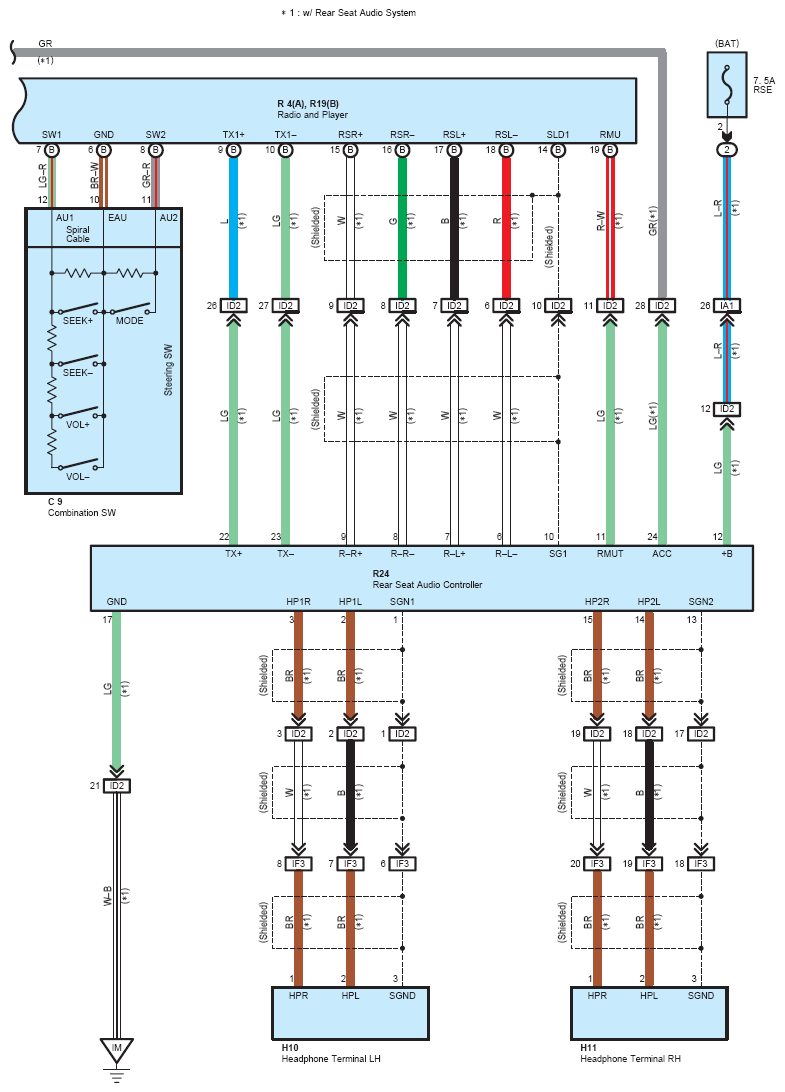

Fig 3: Audio System (With 10 Speaker) Wiring Diagram (3 Of 3)
G08861674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
