Front Passenger Side Door Jam Protection Limit Switch Circuit: Wiring Diagram

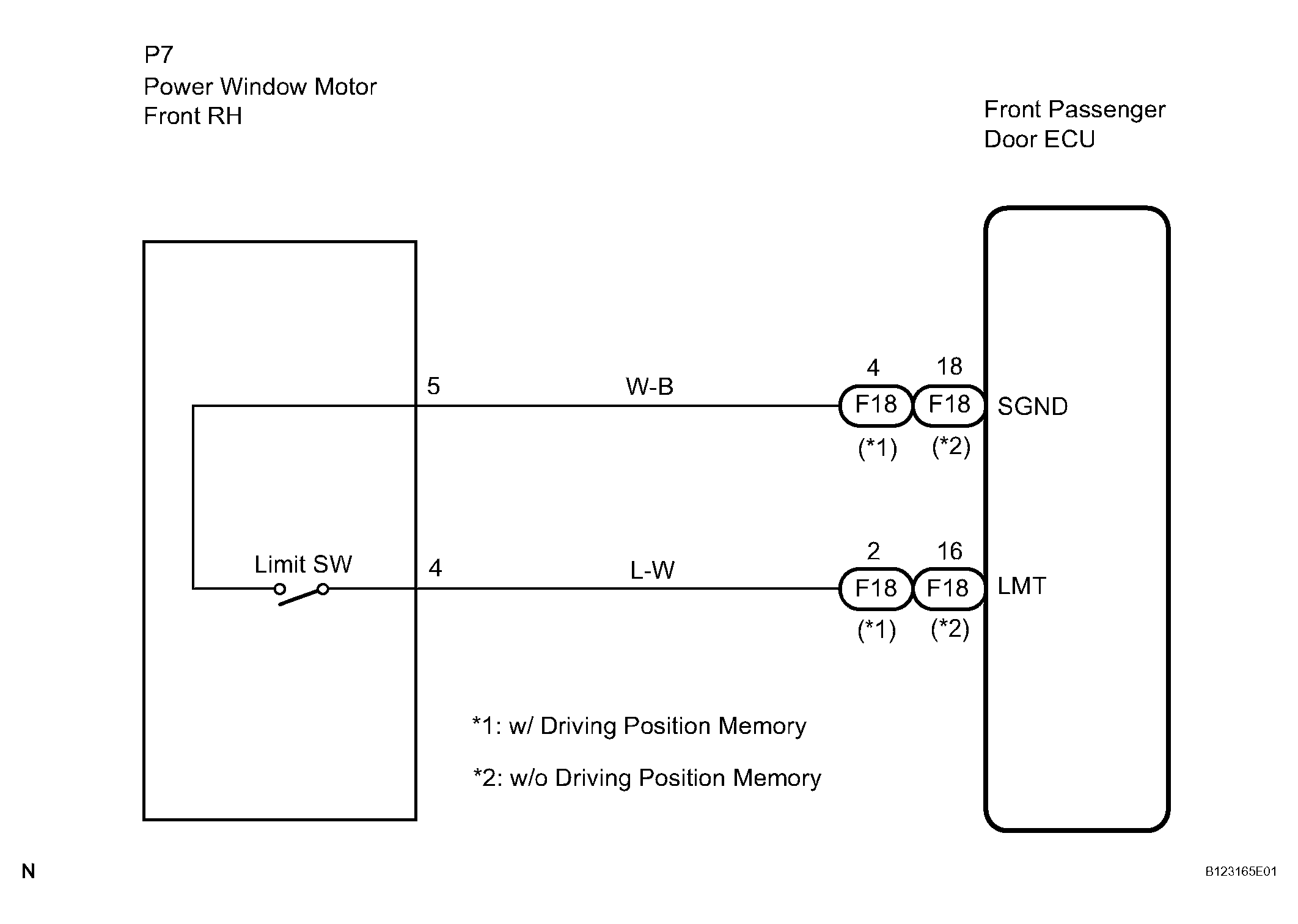

Fig 1: Front Passenger Side Door Jam Protection Limit Switch - Wiring Diagram
G04511036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
