Driver Side Door Jam Protection Pulse Switch Circuit: Wiring Diagram

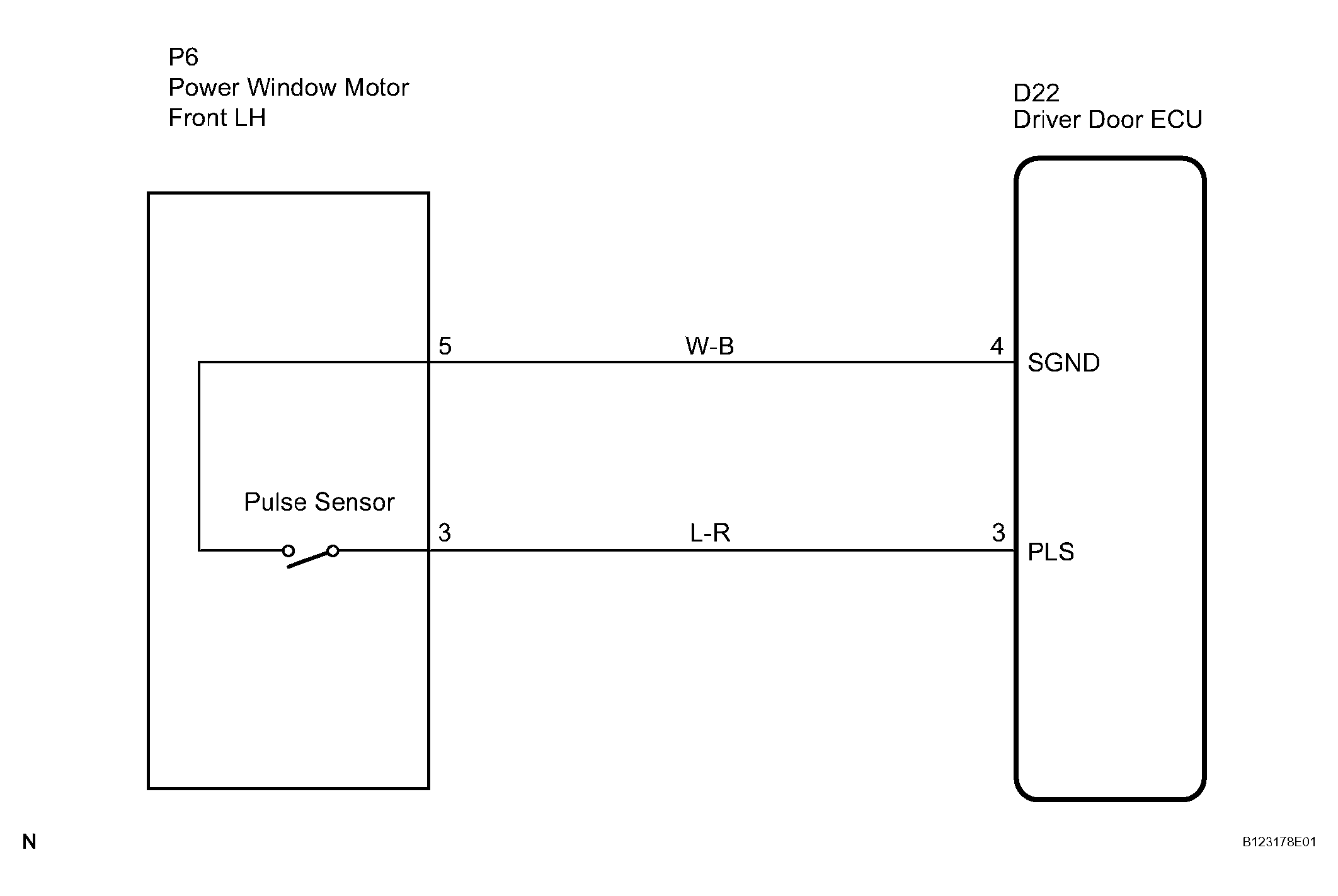

Fig 1: Driver Side Door Jam Protection Pulse Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
