Driver Side Door Window Lock Signal Circuit: Wiring Diagram

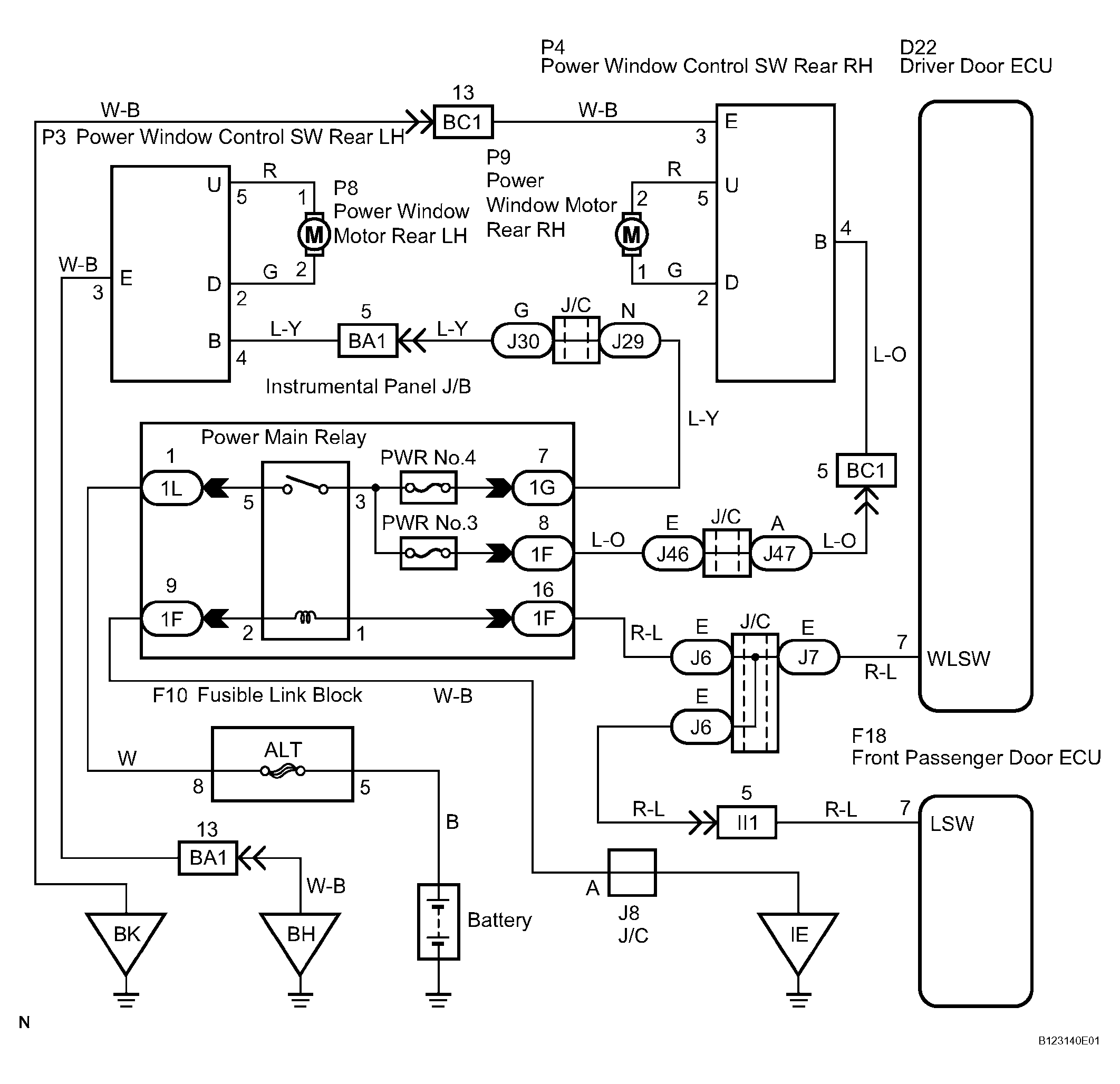

Fig 1: Driver Side Door Window Lock Switch - Wiring Diagram

G04511039

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
