Valve Body: Disassembly

REMOVE SHIFT SOLENOID VALVE SLT AND SL3
1. Remove the bolt, lock plate and shift solenoid valve SL3 and SLT from the valve body.

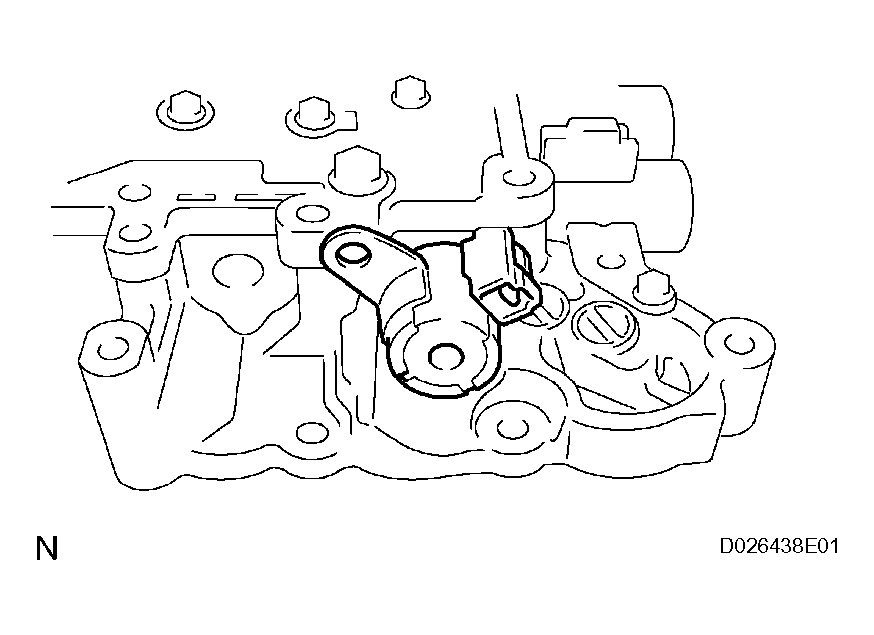

  Fig 1: Removing Bolt, Lock Plate And Shift Solenoid Valve Sl3 And SLT From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE S4
1. Remove the bolt and shift solenoid valve S4 from the valve body.

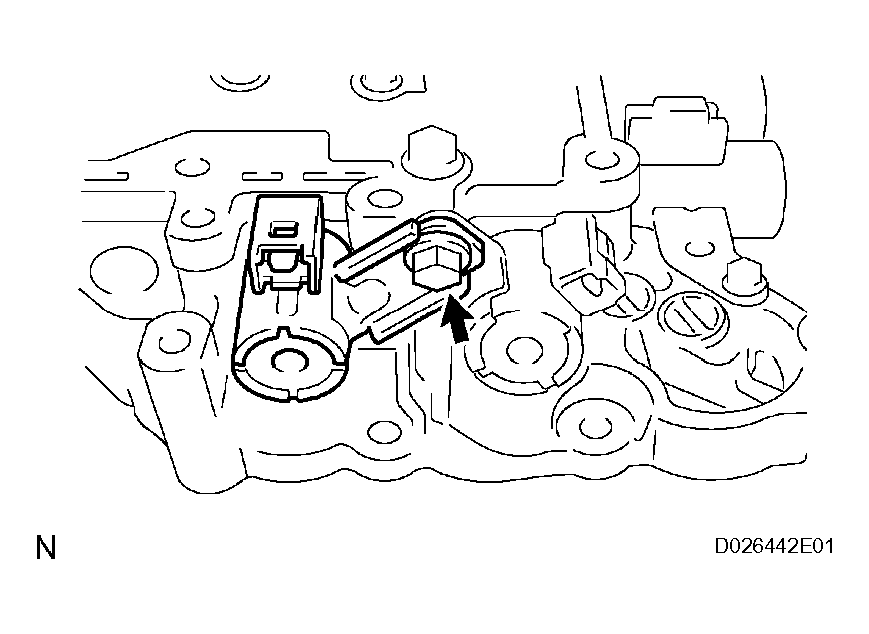

  Fig 2: Removing Bolt And Shift Solenoid Valve S4 From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SR
1. Remove the shift solenoid valve SR from the valve body.

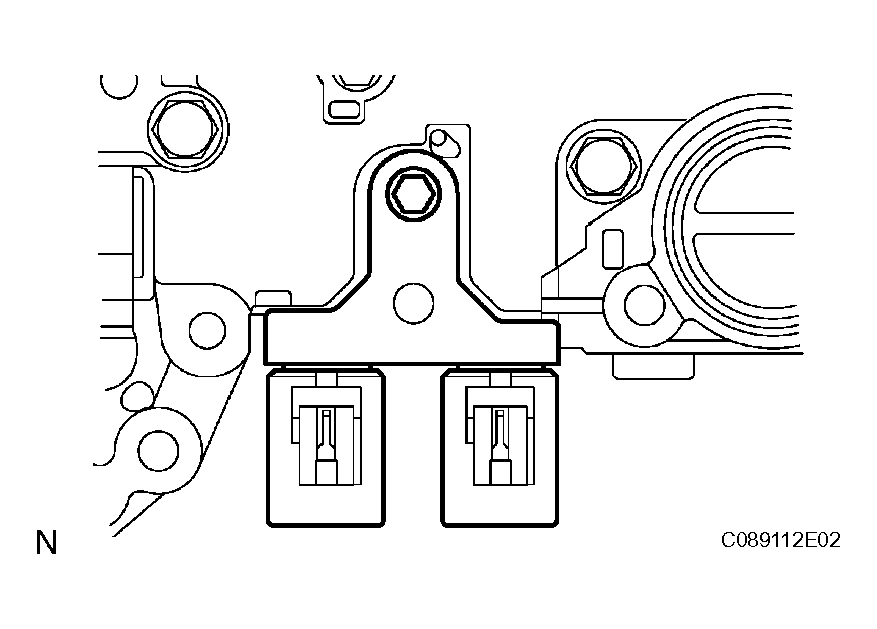

  Fig 3: Removing Shift Solenoid Valve SR From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE DSL
1. Remove the bolt and shift solenoid valve DSL from the valve body.

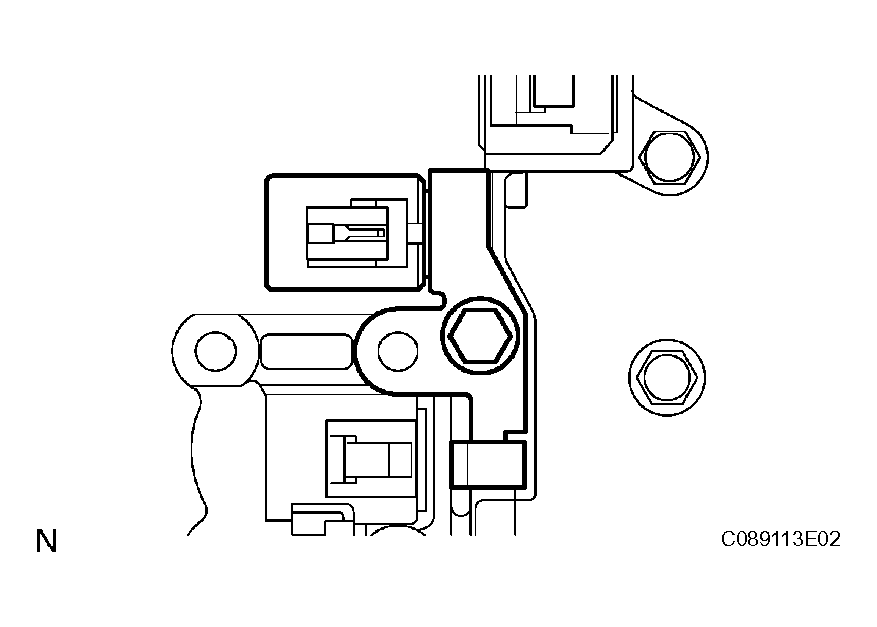

  Fig 4: Removing Bolt And Shift Solenoid Valve DSL From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL2
1. Remove the bolt, lock plate and shift solenoid valve SL2 from the valve body.

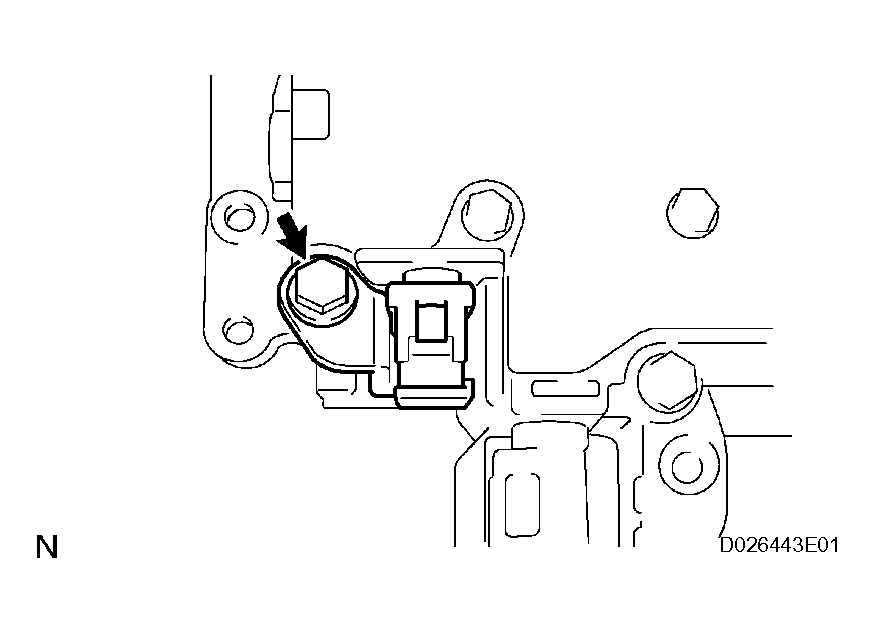

  Fig 5: Removing Bolt, Lock Plate And Shift Solenoid Valve Sl2 From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT SOLENOID VALVE SL1
1. Remove the bolt, lock plate and shift solenoid valve SL1 from the valve body.

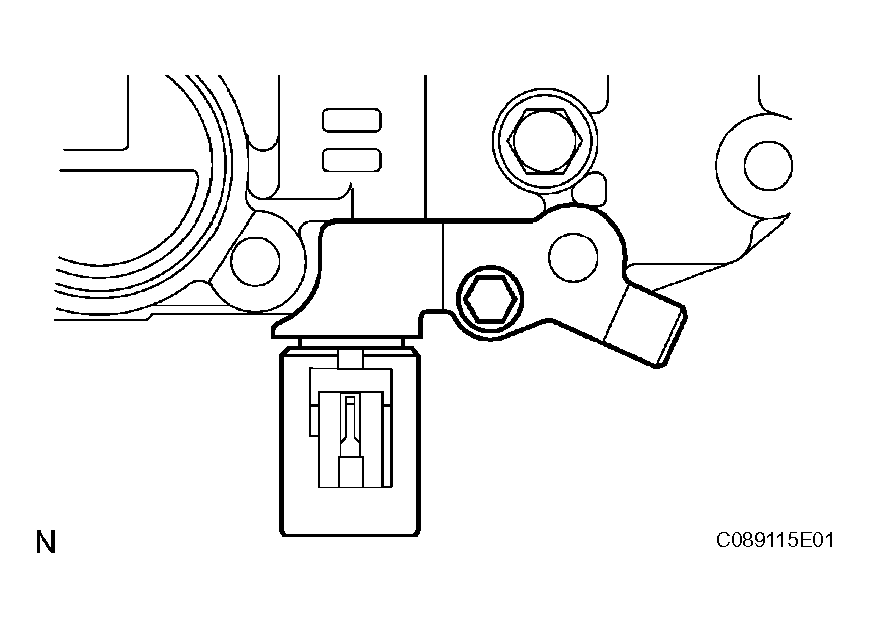

  Fig 6: Removing Bolt, Lock Plate And Shift Solenoid Valve SL1 From Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
