Valve Body Assembly: Installation

1. Install the spring and check ball body.

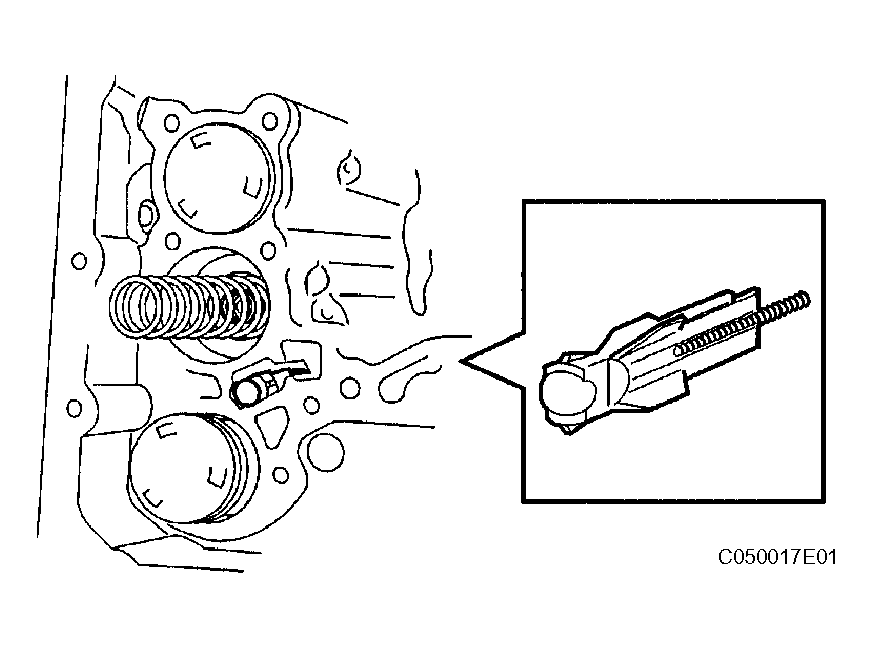

   Fig 1: Installing Spring And Check Ball Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the groove of the manual valve with the pin of the lever.
3. Apply ATF to the 17 bolts.
4. Install the 17 bolts.

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

   NOTE:

   • Push the valve body against the accumulator piston spring and the check ball body to install it.
   • Tighten the bolts marked by * in the illustration first temporarily because they are positioning bolts.

   HINT:

   Each bolt length is indicated below.

   Bolt length:

   25 mm (0.984 in.) for bolt A

   57 mm (2.244 in.) for bolt B

   41 mm (1.614 in.) for bolt C

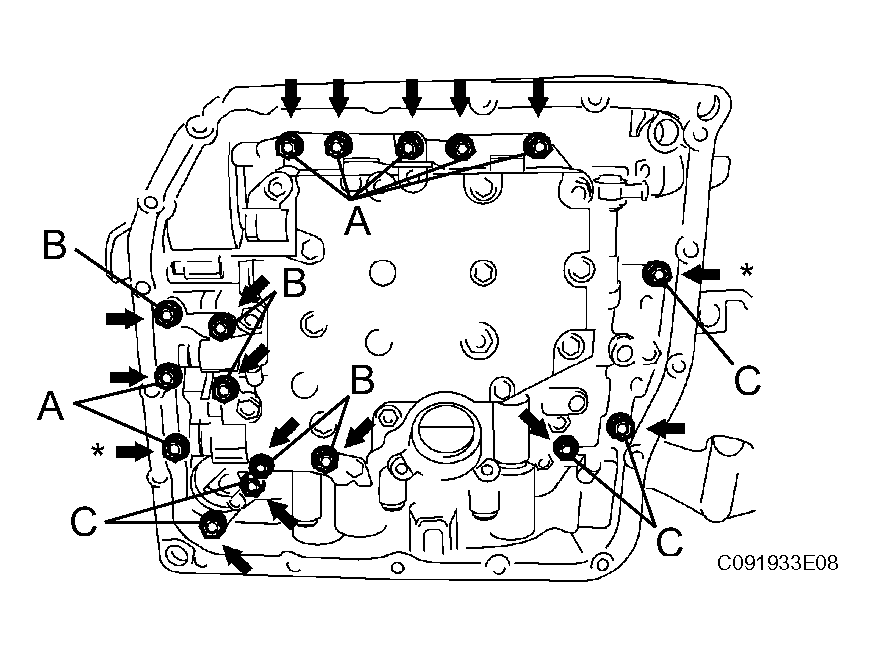

   Fig 2: Installing ATF With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the O-ring with ATF.
2. Apply ATF to the bolt.
3. Install the ATF temperature sensor with the lock plate and bolt.

   Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

4. Connect the 7 shift solenoid valve connectors.

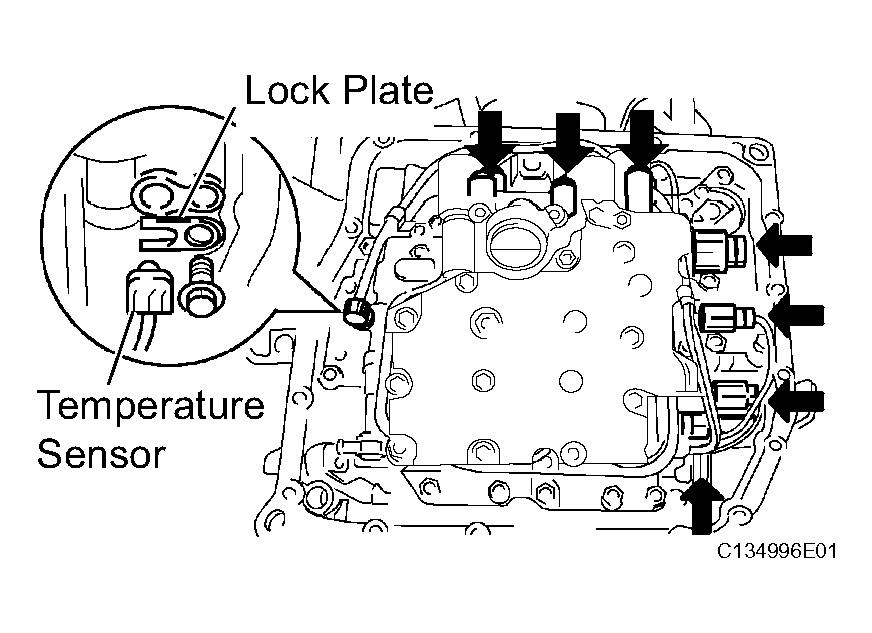

   Fig 3: Installing ATF Temperature Sensor With Lock Plate And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat a new O-ring with ATF.
2. Install the O-ring to the oil strainer.
3. Apply ATF to the 3 bolts.

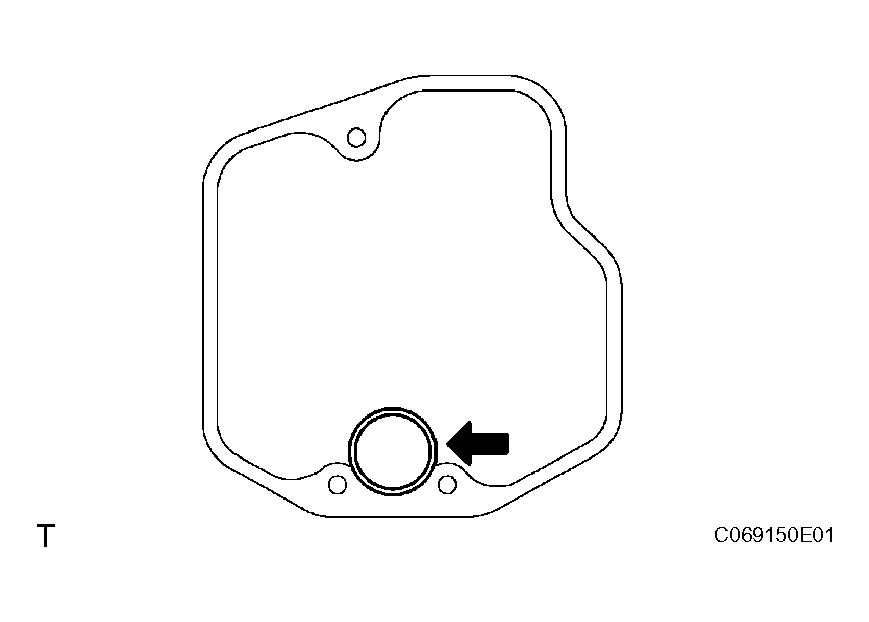

   Fig 4: Installing O-Ring To Oil Strainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the oil strainer with the 3 bolts.

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

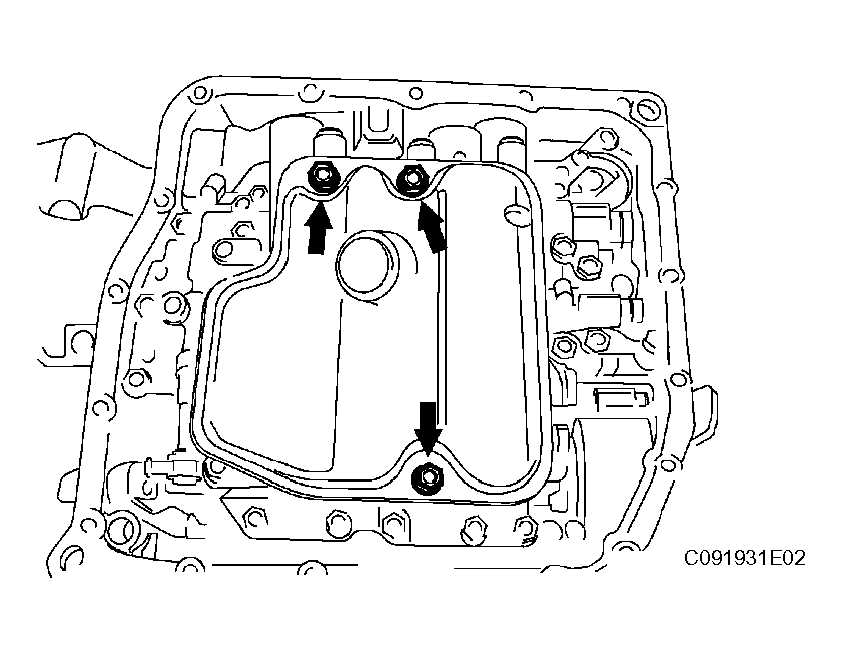

   Fig 5: Installing Oil Strainer With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 magnets in the oil pan.
   Fig 6: Locating Magnets In Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket and the oil pan with the 18 bolts.

   Torque: 7.6 N*m (77 kgf*cm, 67 in.*lbf)

Fluid type: Toyota Genuine ATF WS

1. Inspect the fluid level (see INSPECTION PROCEDURE  ).

1. Perform the RESET MEMORY procedures (A/T initialization) (see INITIALIZATION  ).

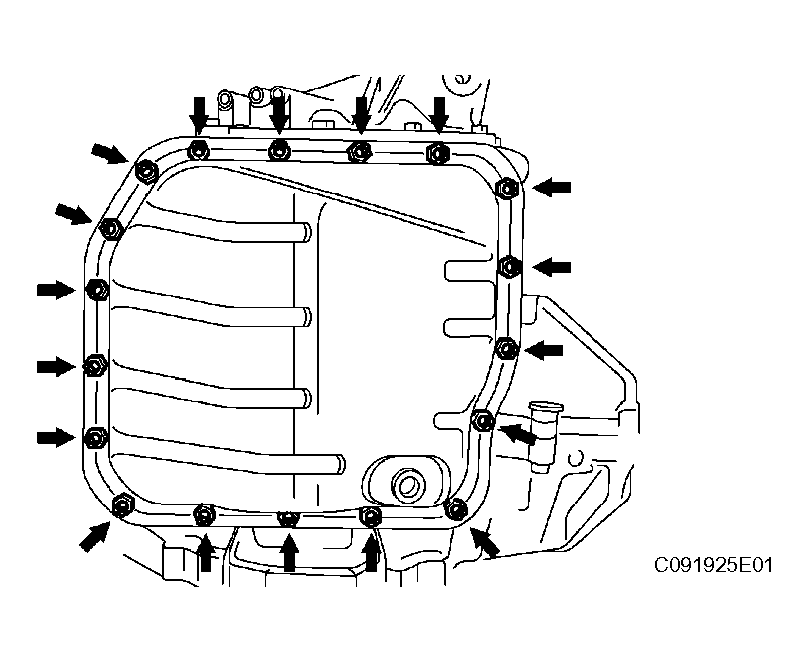

   Fig 7: Installing Oil Pan Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
