Valve Body Assembly: Components

Fig 1: Valve Body Assembly Components & Torque Specification (1 Of 2)
G04487595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

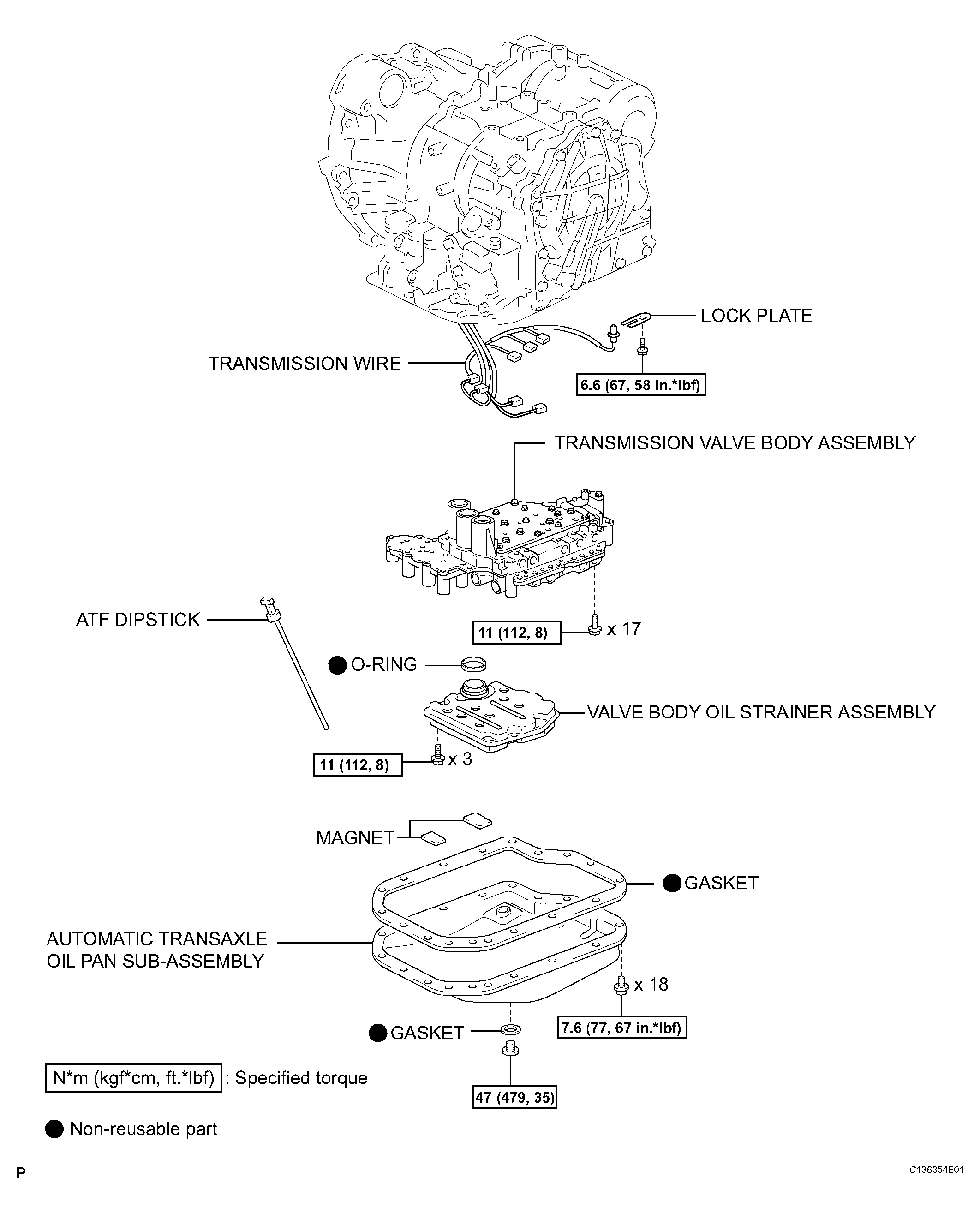

Fig 2: Valve Body Assembly Components & Torque Specification (2 Of 2)
G04487596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
