UNDERDRIVE Planetary Gear: Components

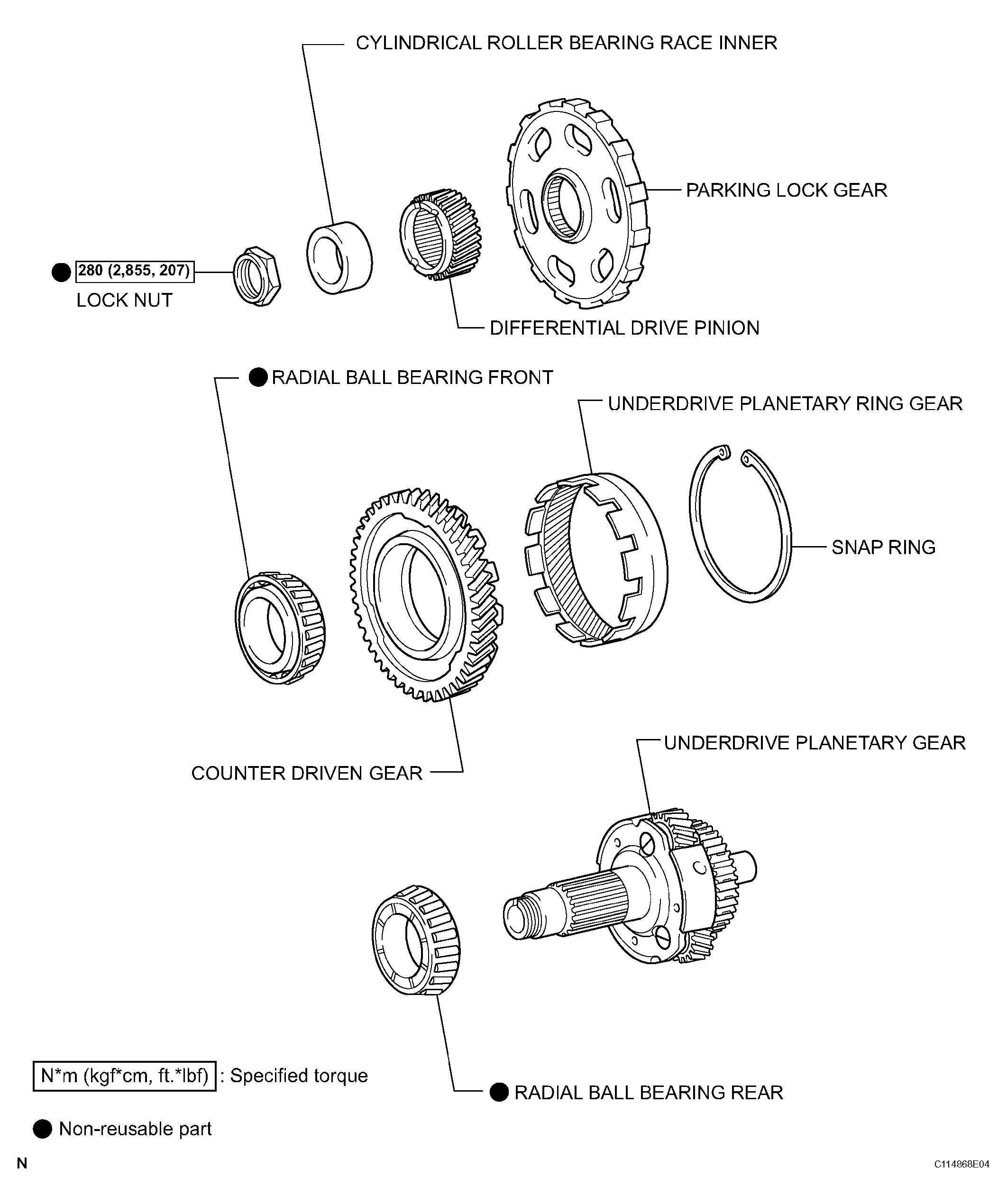

Fig 1: Underdrive Planetary Gear Replacement Components & Torque Specification

G04488024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
