Transmission Wire: Components

Fig 1: Transmission Wire Components & Torque Specification (1 Of 2)
G04487582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

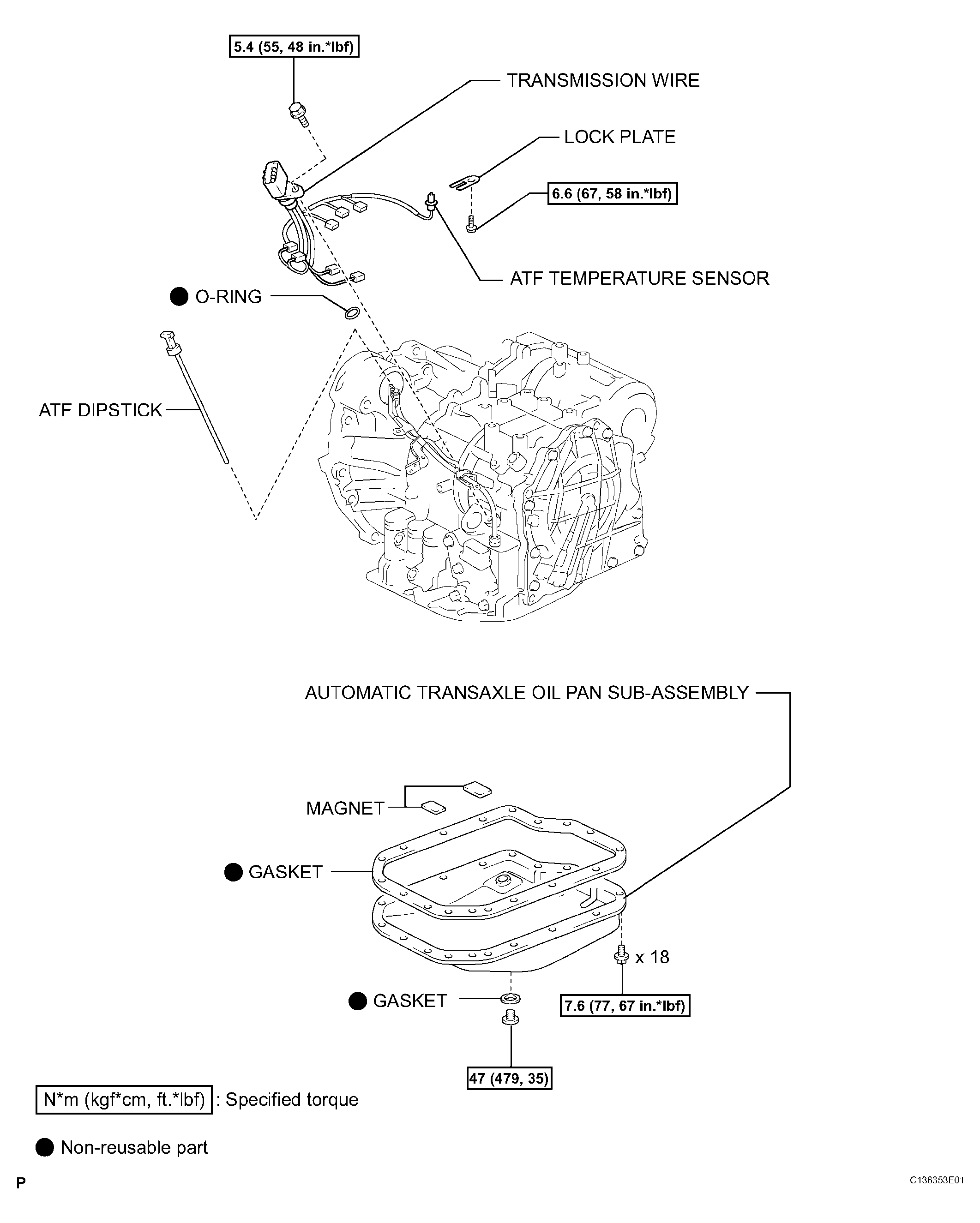

Fig 2: Transmission Wire Components & Torque Specification (2 Of 2)
G04487583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
