Shift Lock System: Inspection

INSPECT KEY INTERLOCK SOLENOID
1. Disconnect the solenoid connector.
2. Connect the battery's positive (+) lead to terminal 1 (UN+) and the battery's negative (-) lead to terminal 2 (UN-). Check that the operating noise of the solenoid can be heard.
  If the result is not as specified, replace the solenoid.

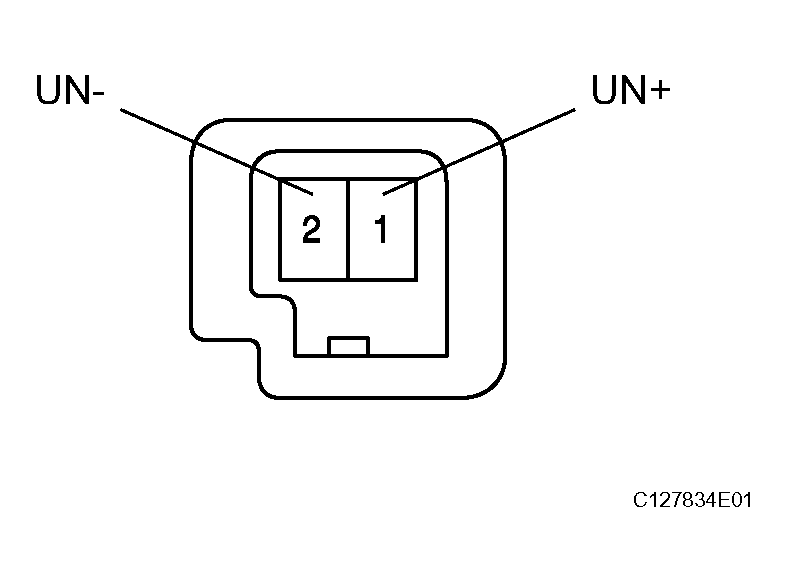

  Fig 1: Identifying Key Interlock Solenoid Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
