Oil Pump: Components

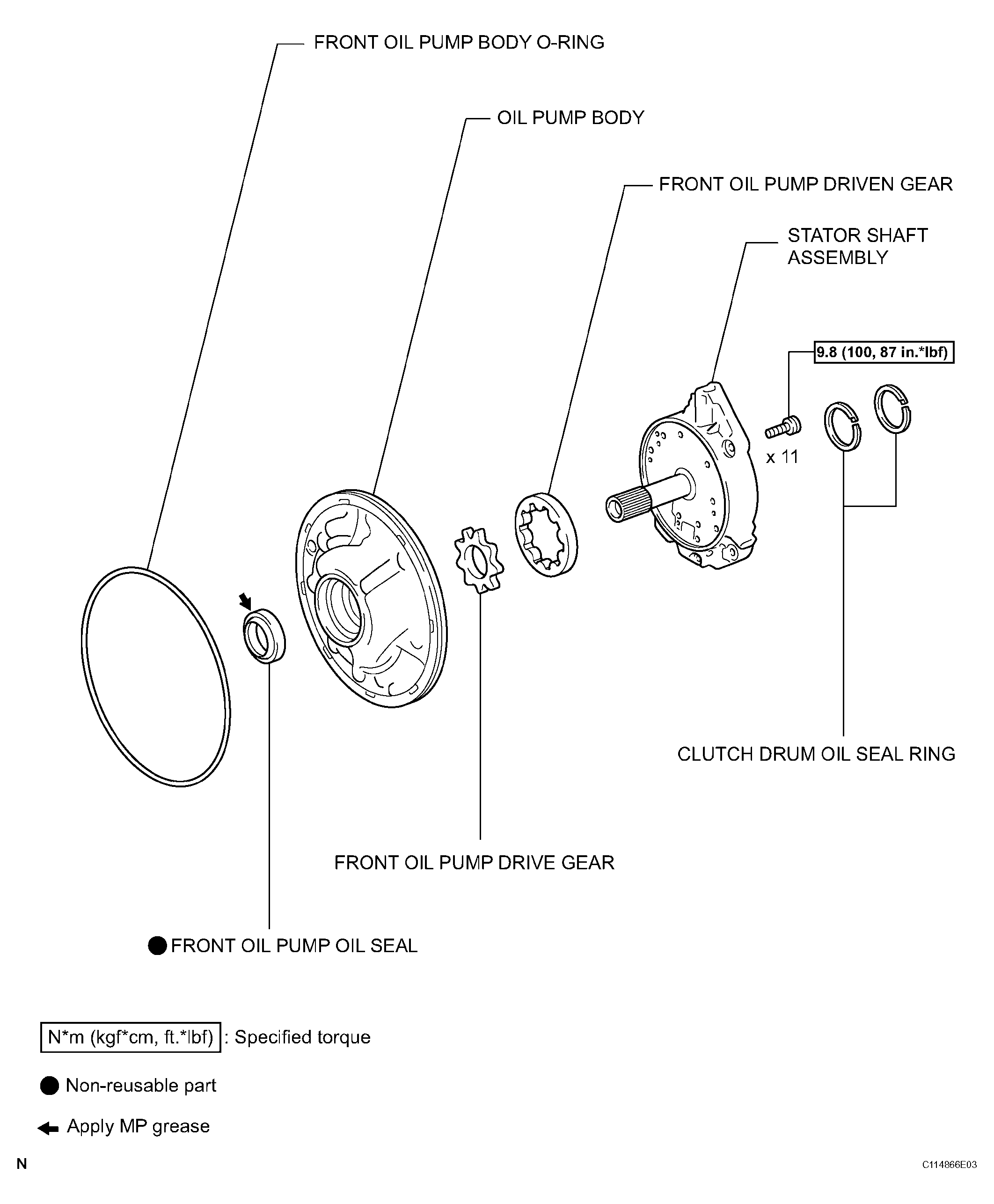

Fig 1: Oil Pump Components & Torque Specification

G04487945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
