Floor Shift Assembly: Reassembly

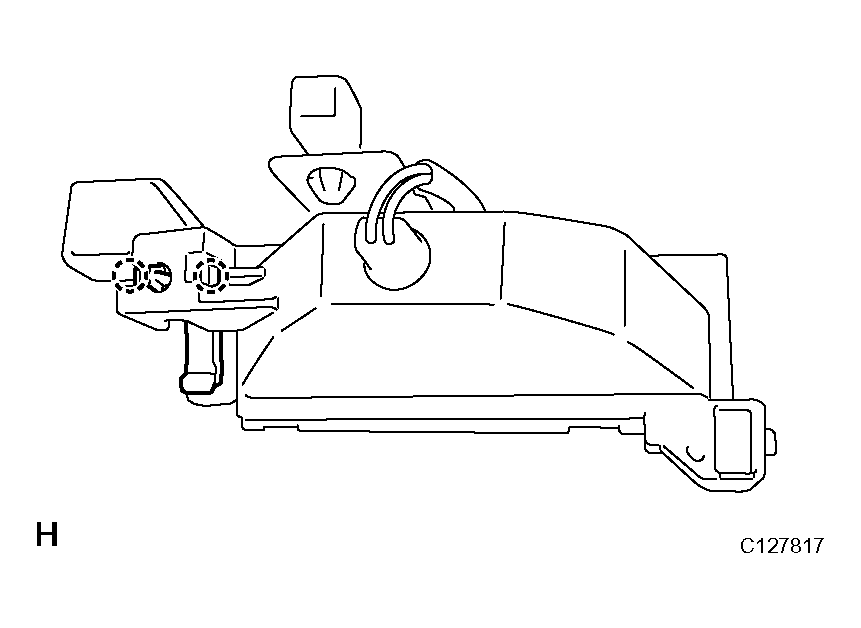

INSTALL SHIFT LOCK RELEASE BUTTON
1. Install the spring and button and attach the claws to the position indicator light housing.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

Fig 1: Installing Shift Lock Release Button
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

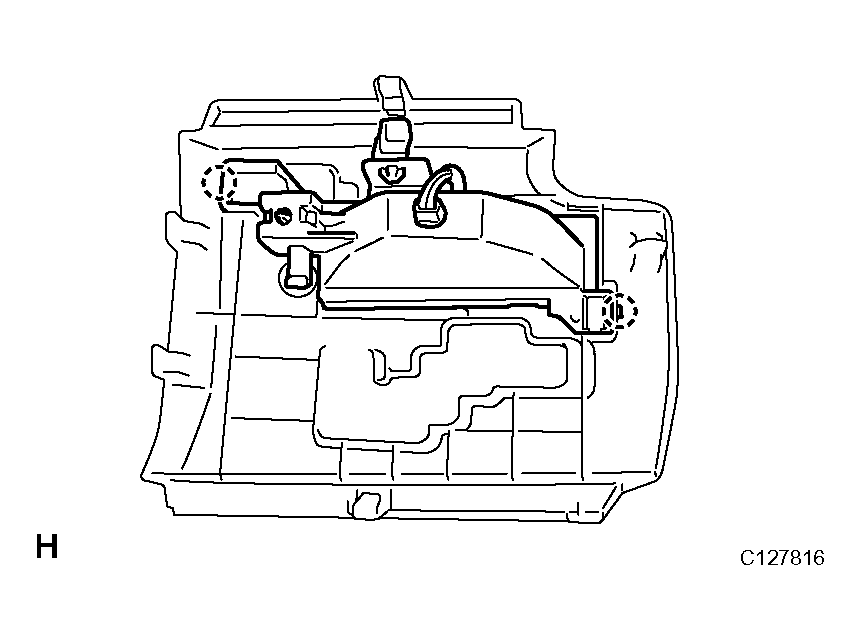

INSTALL POSITION INDICATOR LIGHT HOUSING
1. Install the indicator light housing and attach the 2 claws to the shift position indicator housing.

  Fig 2: Installing Indicator Light Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER POSITION INDICATOR HOUSING
1. Install the position indicator slide cover with slide No. 2 cover to the indicator housing.
2. Install the housing and attach the 4 claws to the floor shift assembly.

  Fig 3: Installing Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
