Differential Case: Inspection

INSPECT DIFFERENTIAL SIDE GEAR BACKLASH
1. Using a dial indicator, measure the backlash of the side gear.
  Standard backlash: 0.05 to 0.20 mm (0.0020 to 0.0070 in.)

  Standard thrust washer thickness:

  1.625 mm (0.0640 in.)

  1.725 mm (0.0679 in.)

  1.825 mm (0.0719 in.)

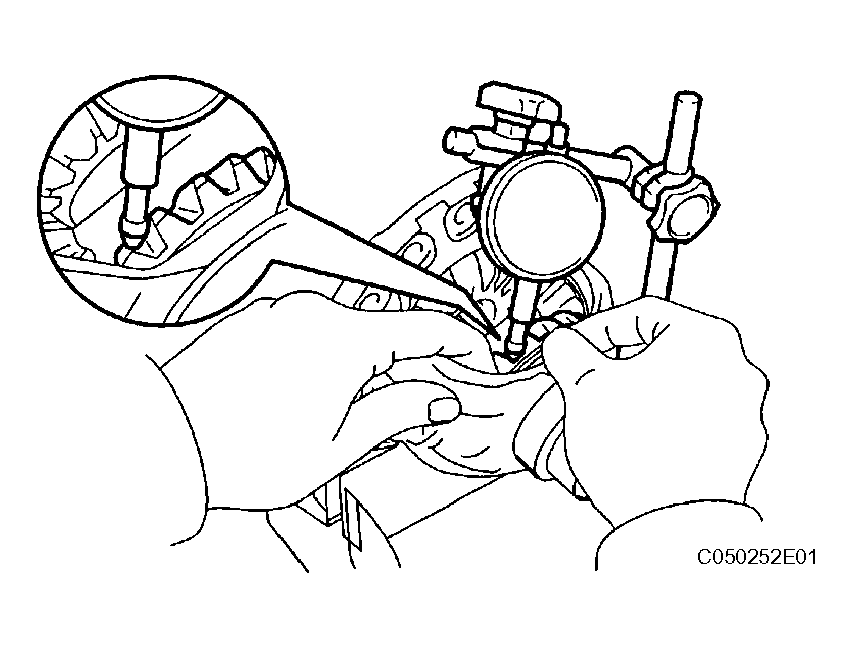

  Fig 1: Measuring Backlash Of Side Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
