Differential Case: Components

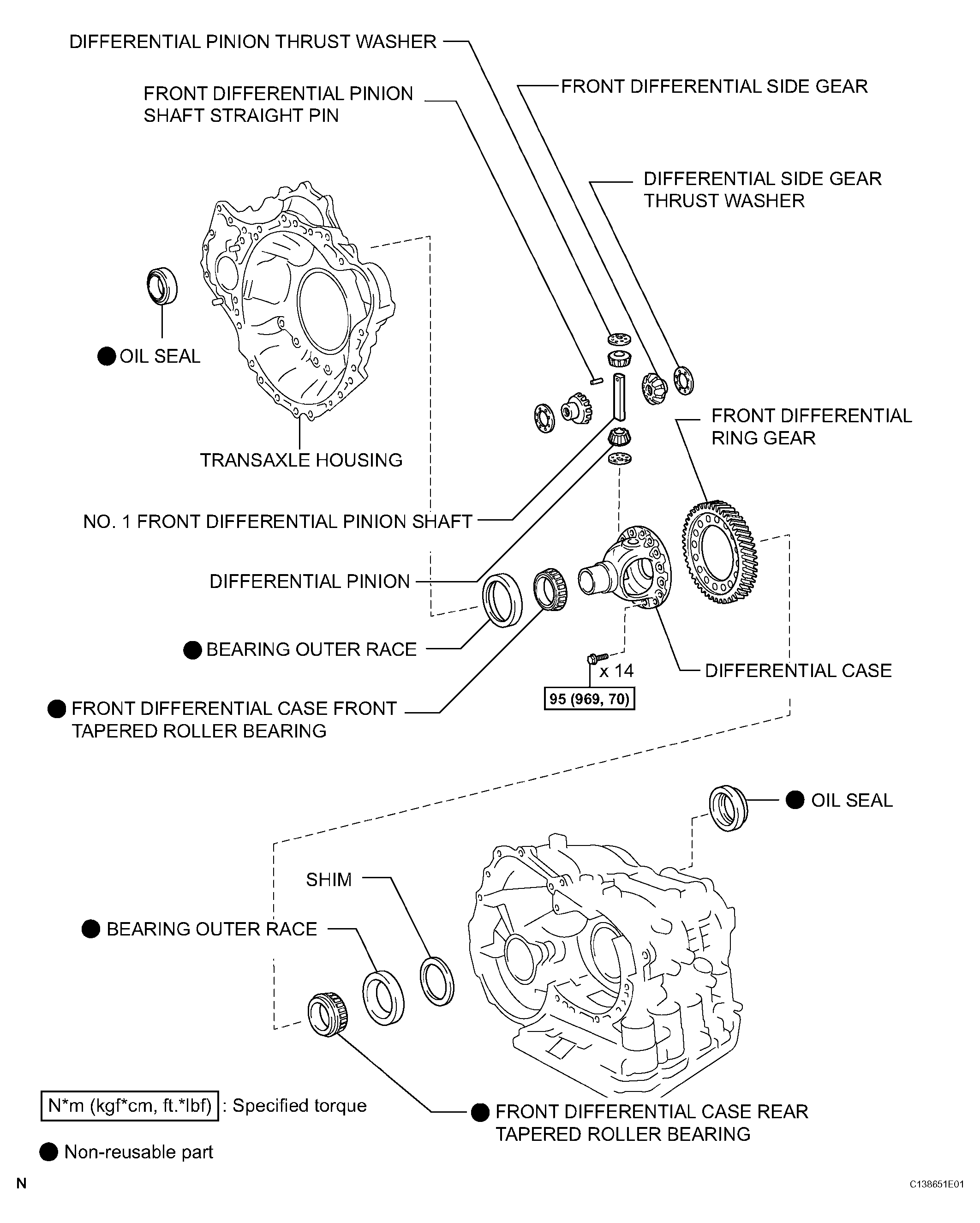

Fig 1: Differential Case Components & Torque Specification

G04488081

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
