Automatic Transaxle Unit: Components

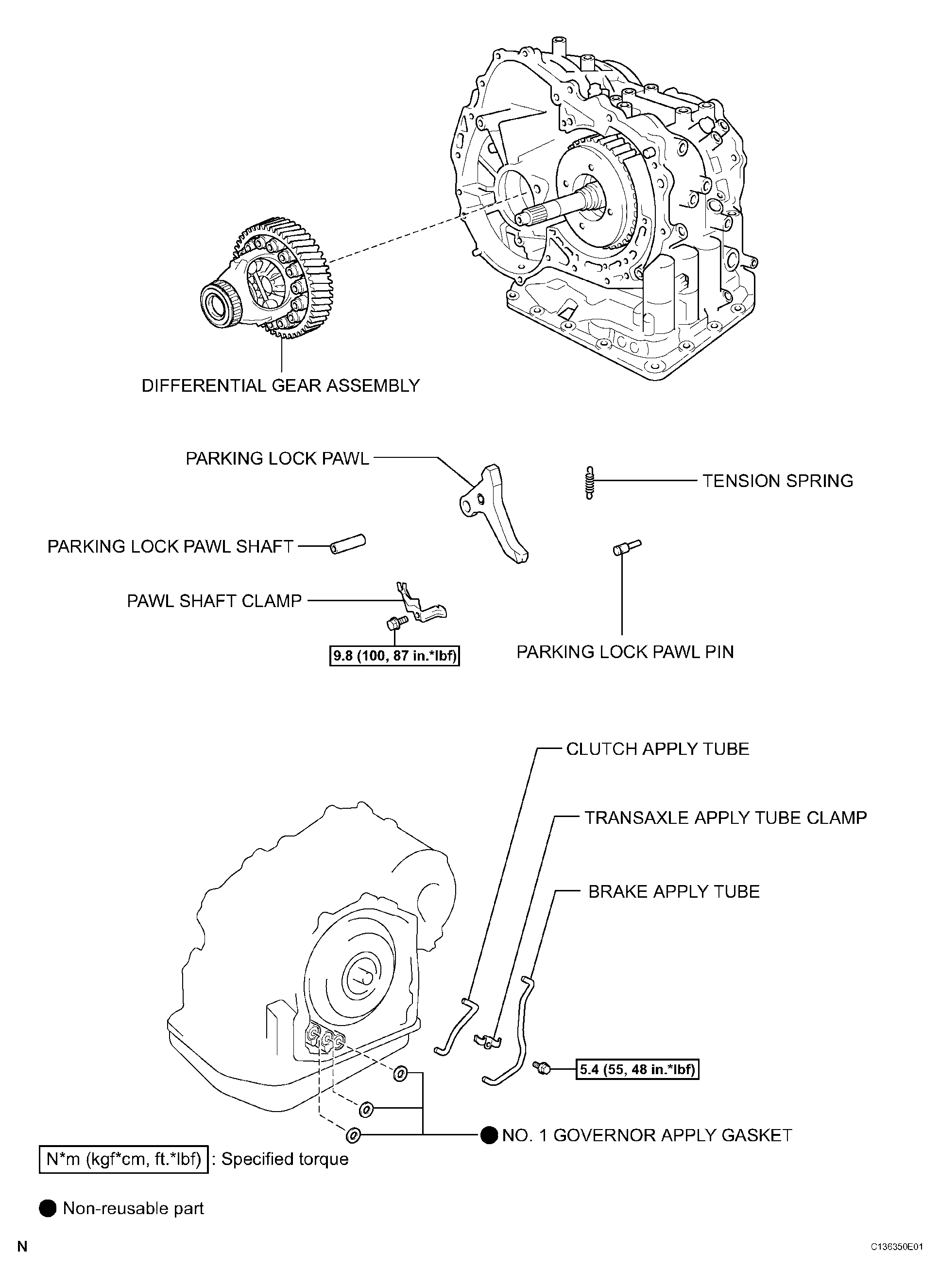

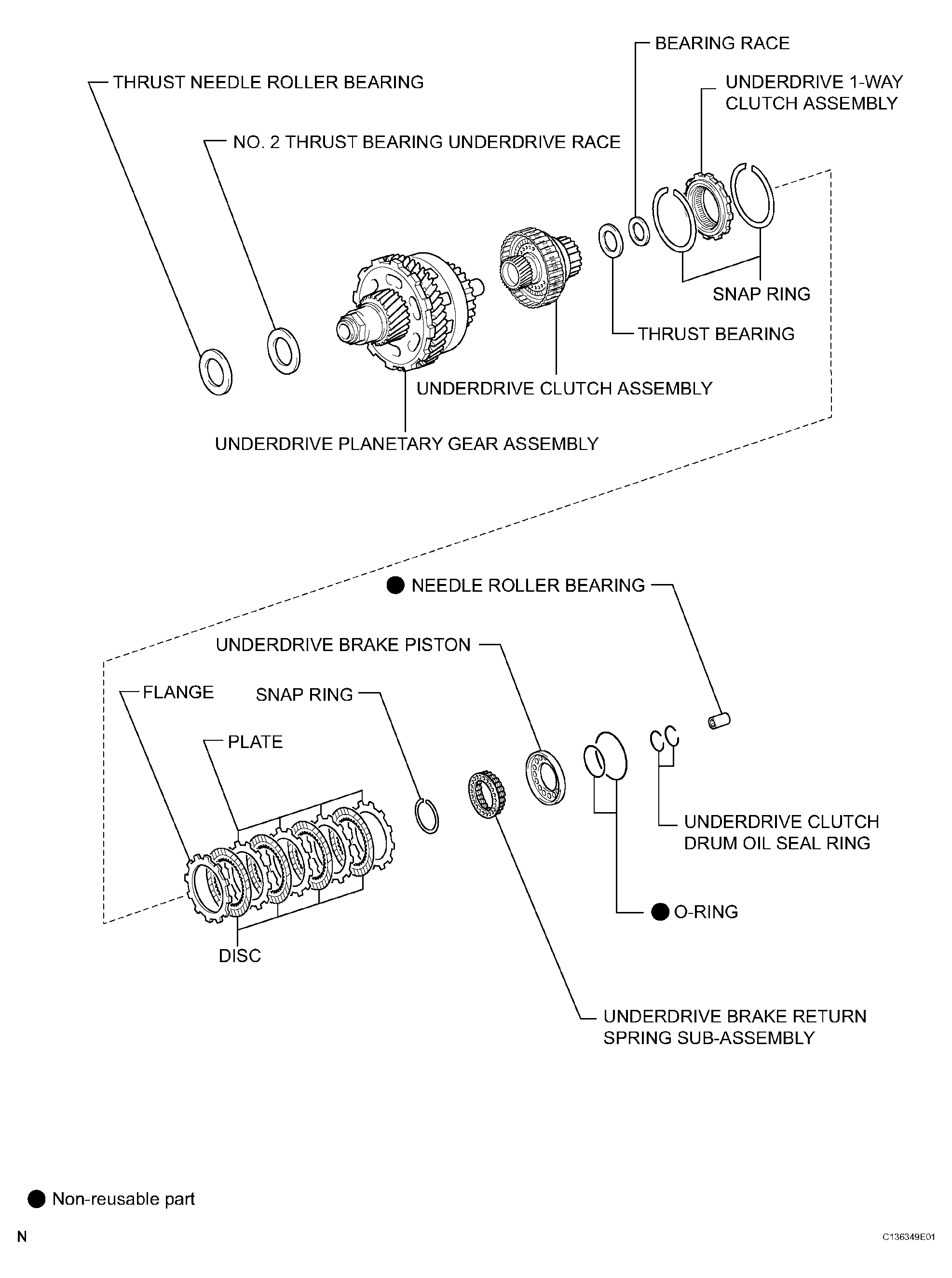

Fig 1: Automatic Transaxle Unit Components & Torque Specification (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

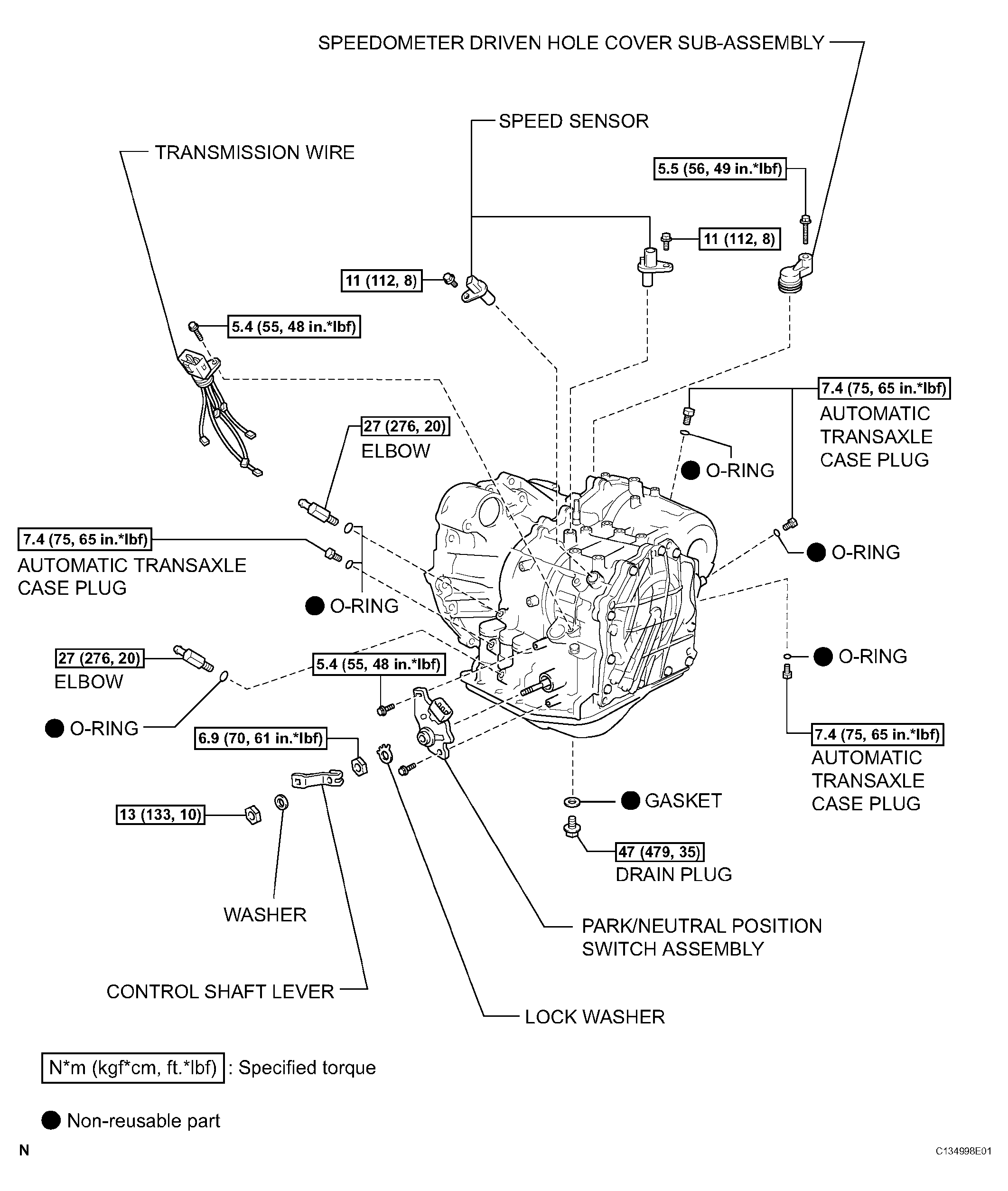

Fig 2: Automatic Transaxle Unit Components & Torque Specification (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

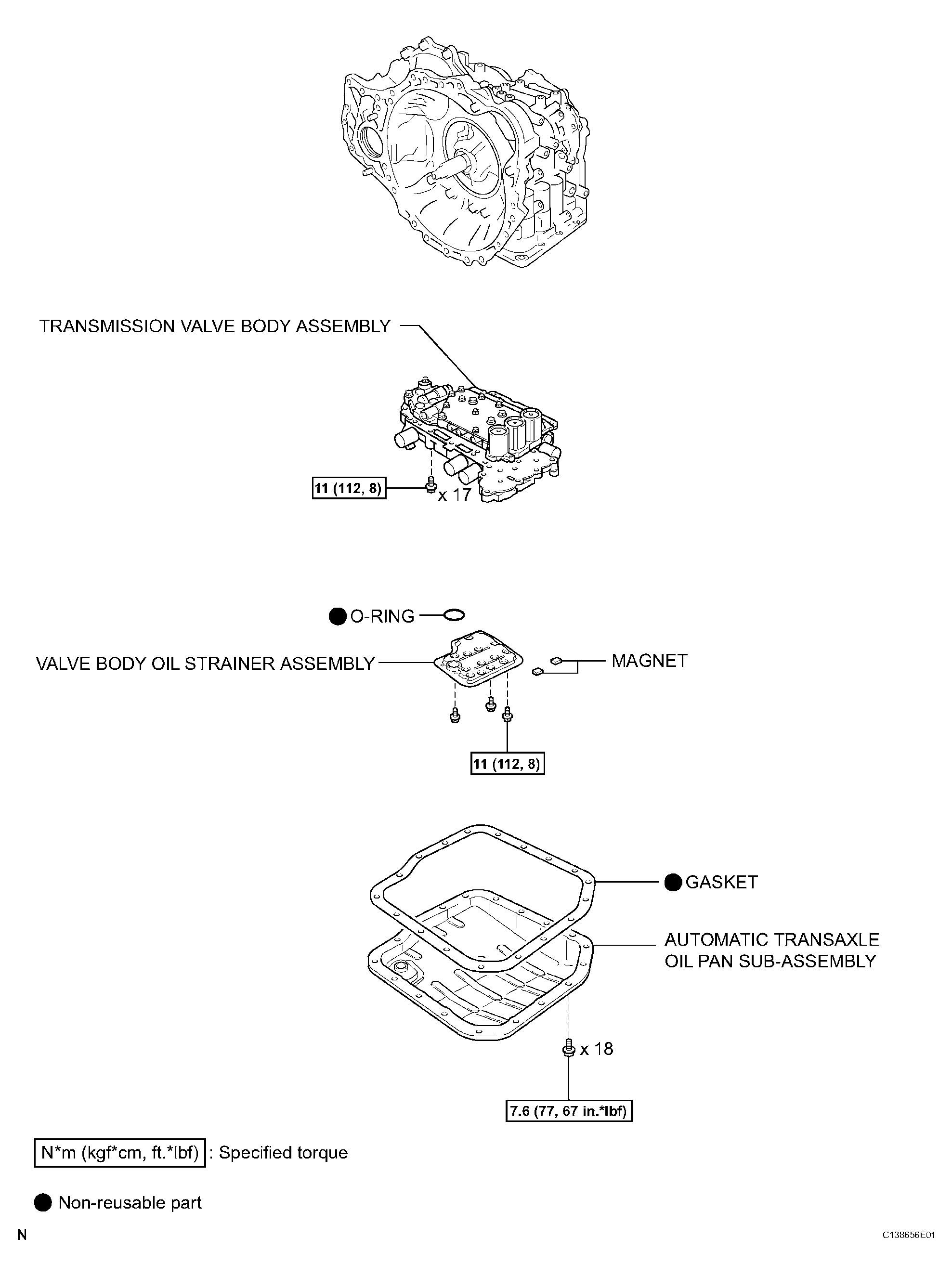

Fig 3: Automatic Transaxle Unit Components & Torque Specification (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

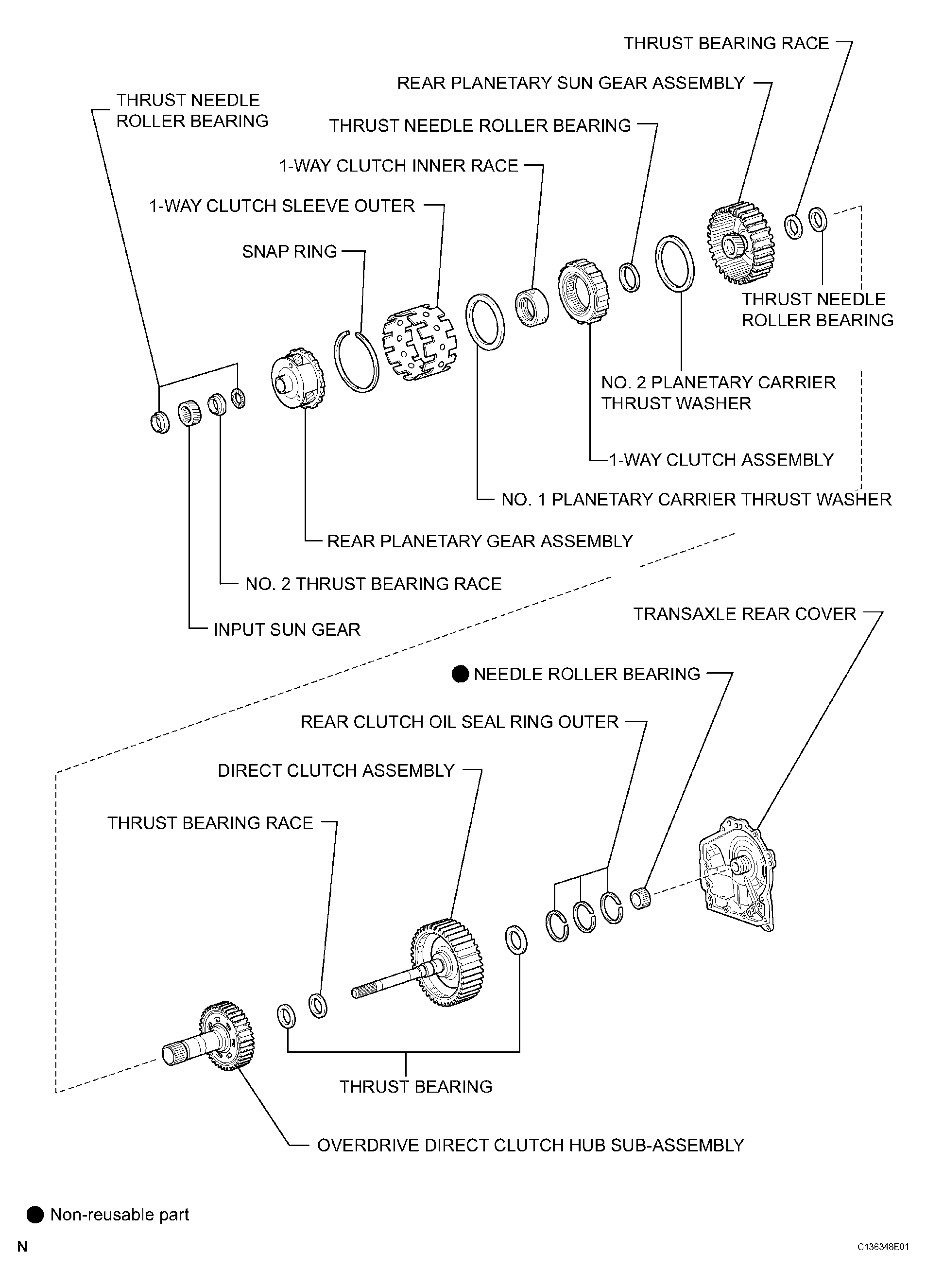

Fig 4: Automatic Transaxle Unit Components & Torque Specification (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

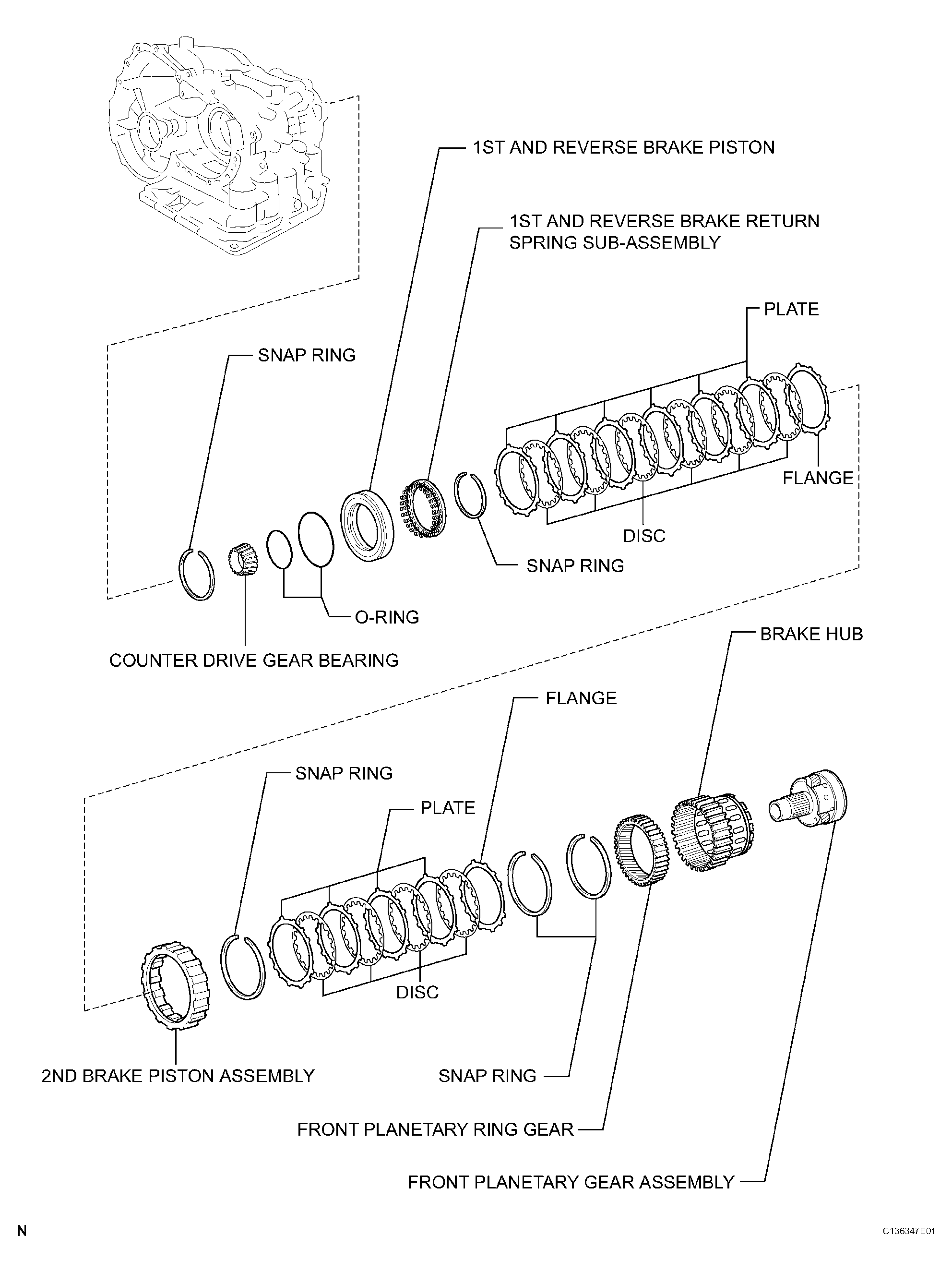

Fig 5: Automatic Transaxle Unit Components & Torque Specification (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

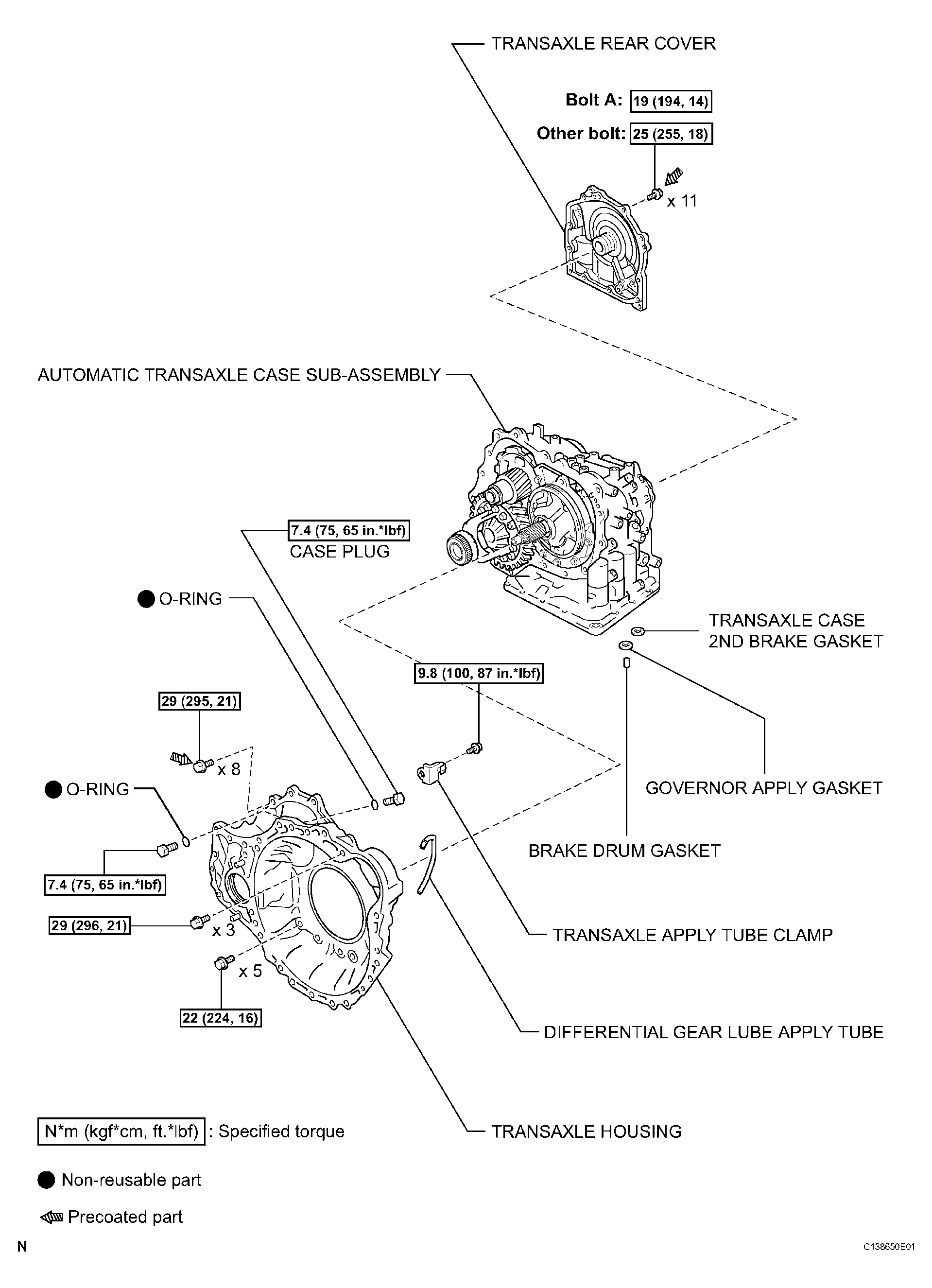

Fig 6: Automatic Transaxle Unit Components & Torque Specification (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

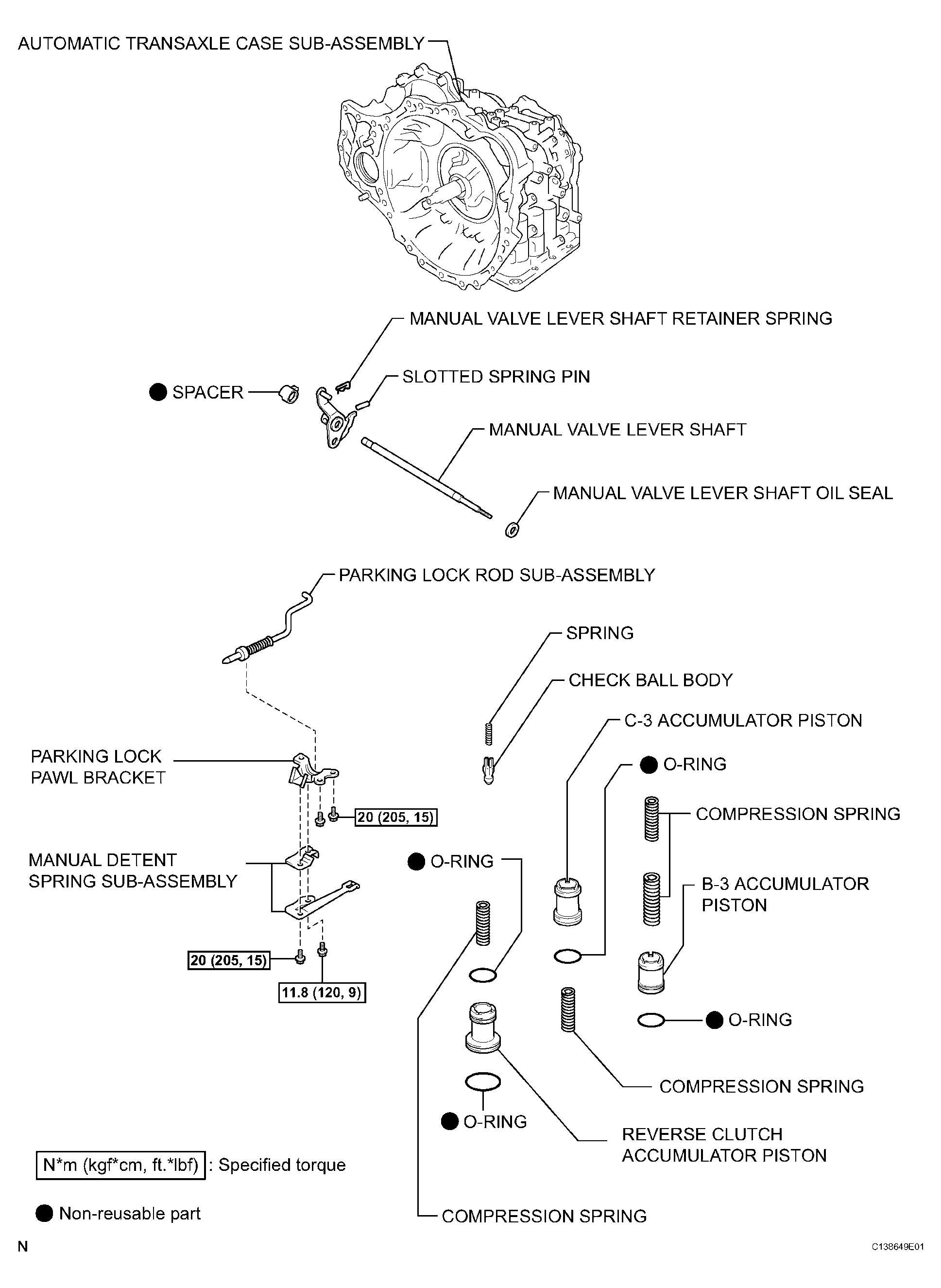

Fig 7: Automatic Transaxle Unit Components & Torque Specification (7 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

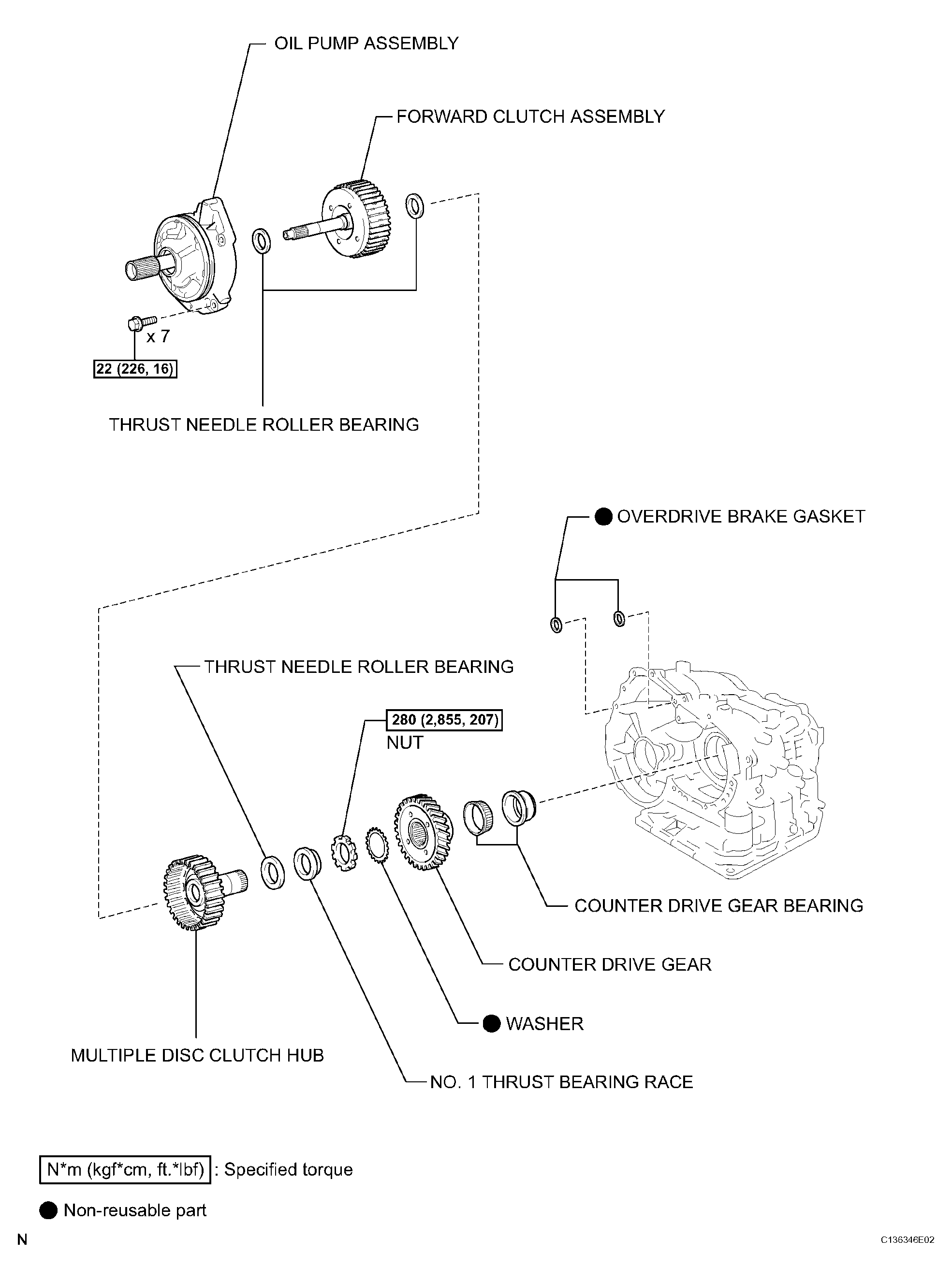

Fig 8: Automatic Transaxle Unit Components & Torque Specification (8 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Automatic Transaxle Unit Components & Torque Specification (9 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
