Parts Location

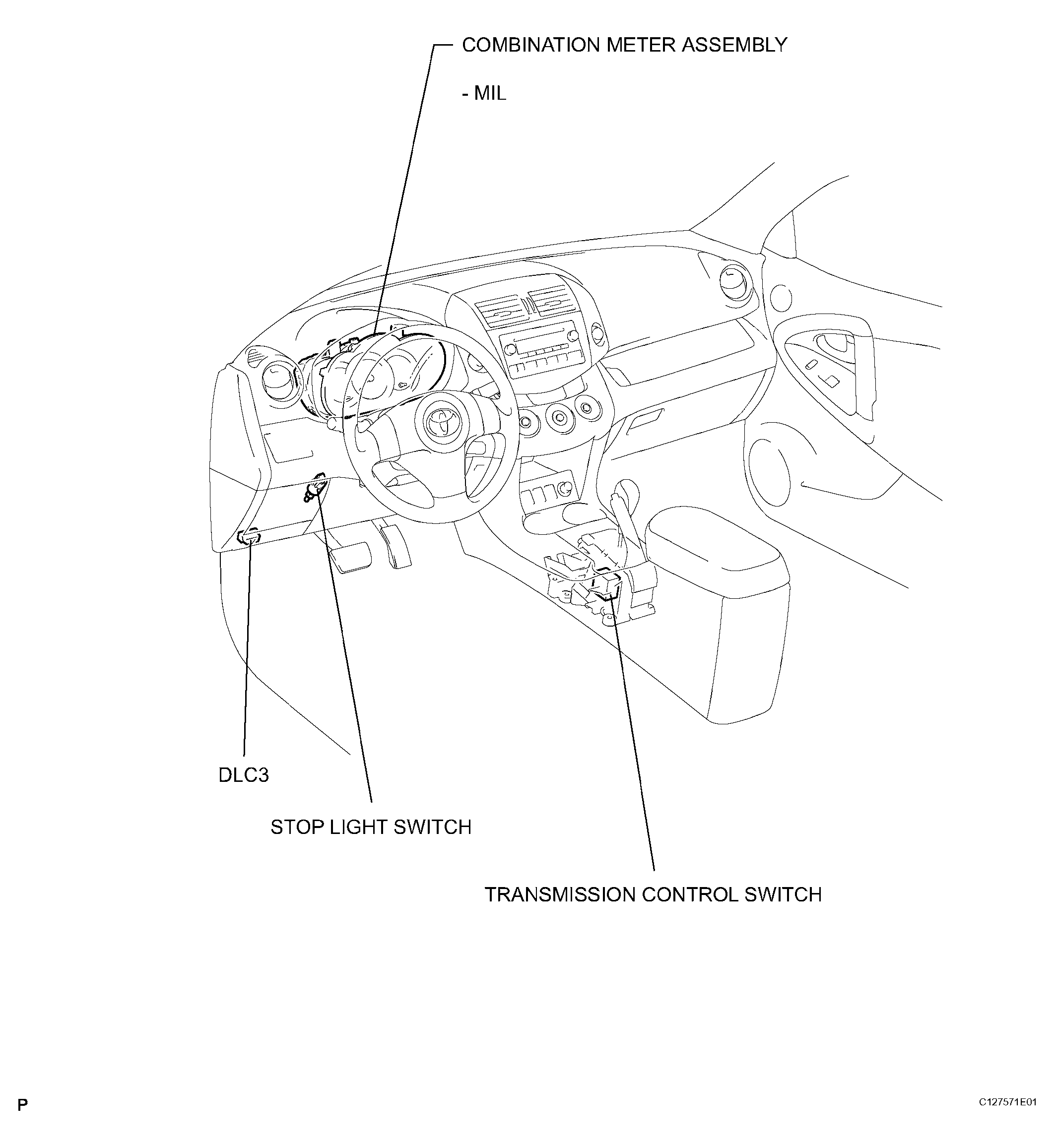

Fig 1: Identifying Automatic Transaxle System Parts Location (1 Of 2)
G04487474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

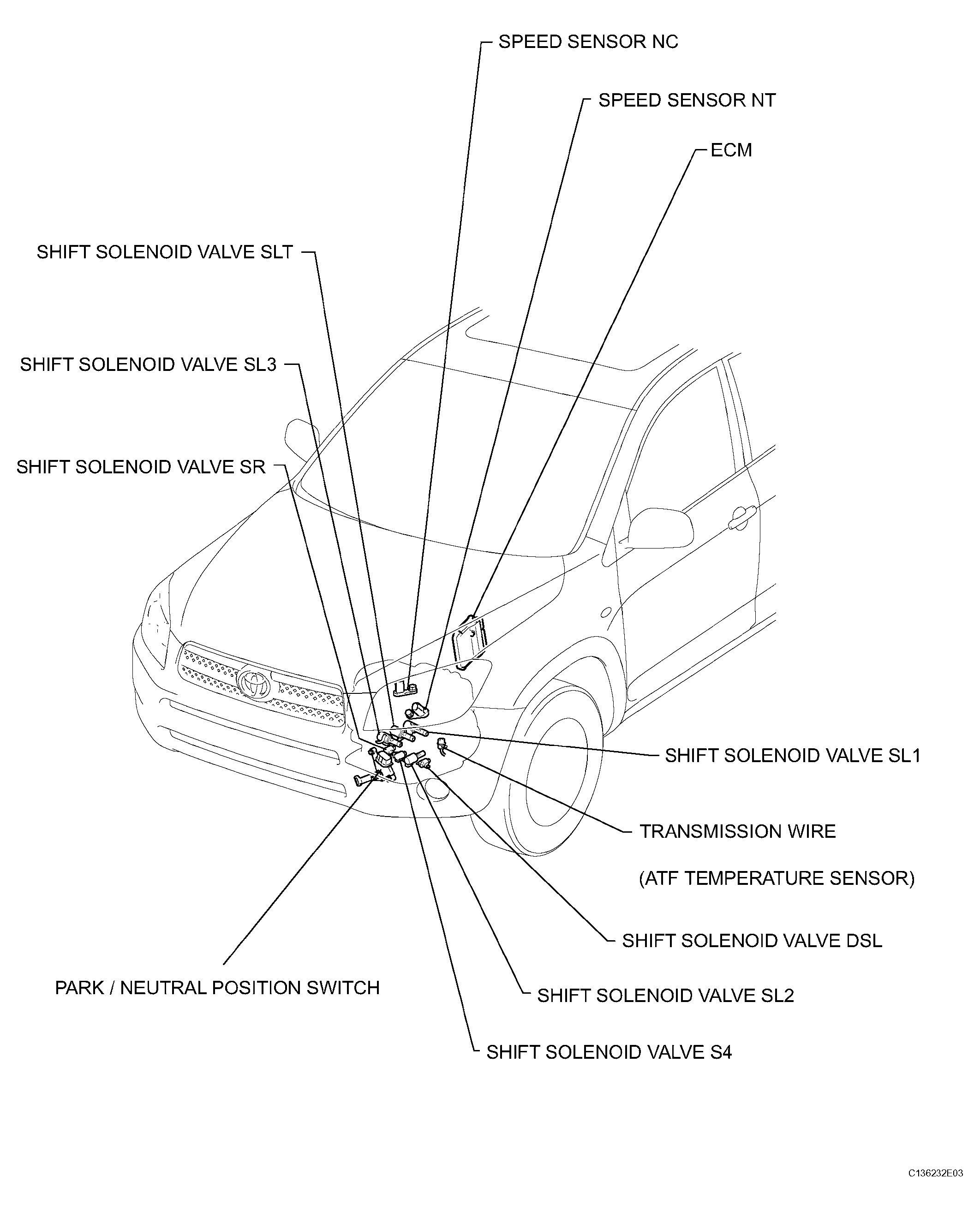

Fig 2: Identifying Automatic Transaxle System Parts Location (2 Of 2)
G04487475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
