Automatic Transaxle Assembly: Components

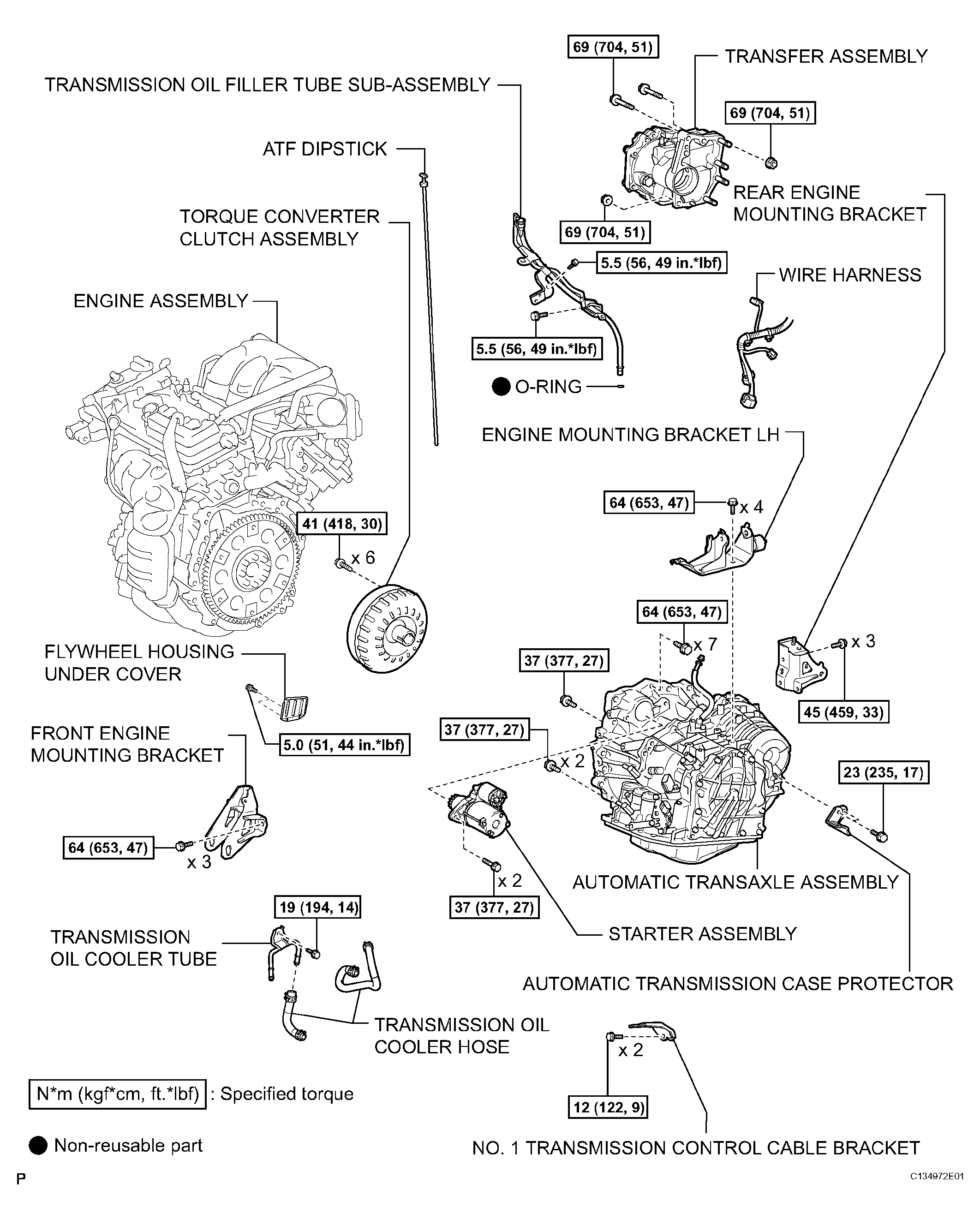

Fig 1: Automatic Transaxle Assembly Components & Torque Specification

G04487670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
