Navigation Receiver: Installation: Installation

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 RADIO BRACKET
1. w/ CD Player:
  1. Install the No. 2 radio bracket to the navigation receiver with the 4 screws.

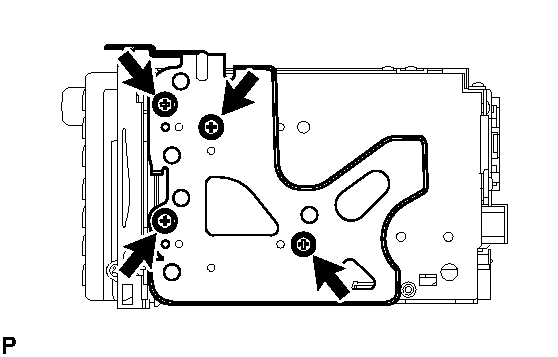

    Fig 1: Locating Radio Receiver Bracket Screws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ DVD Player:
  1. Install the No. 2 radio bracket to the navigation receiver with the 4 screws.

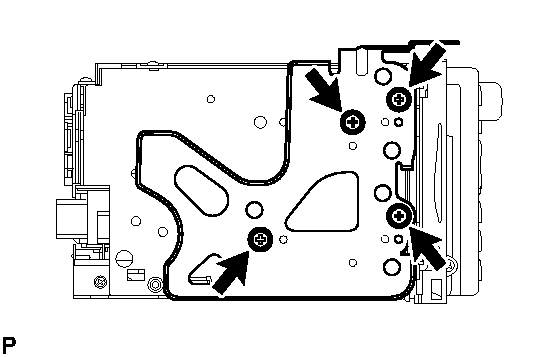

    Fig 2: Locating No. 2 Radio Bracket Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RADIO BRACKET
1. w/ CD Player:
  1. Install the No. 1 radio bracket to the navigation receiver with the 4 screws.

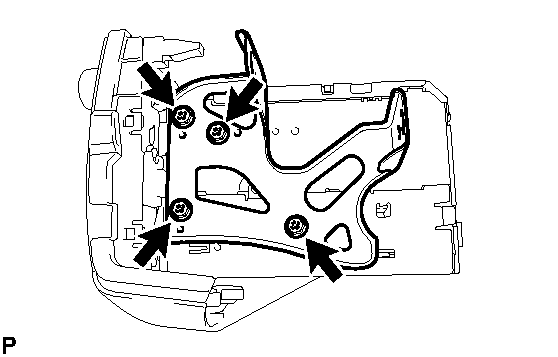

    Fig 3: Locating Radio Receiver Bracket Screws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ DVD Player:
  1. Install the No. 1 radio bracket to the navigation receiver with the 4 screws.

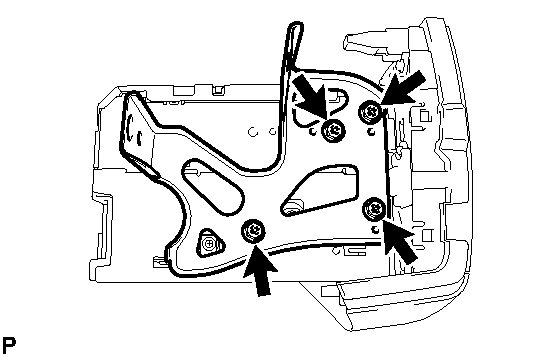

    Fig 4: Locating No. 1 Radio Bracket Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
1. Attach the 4 claws to install the instrument cluster finish panel.

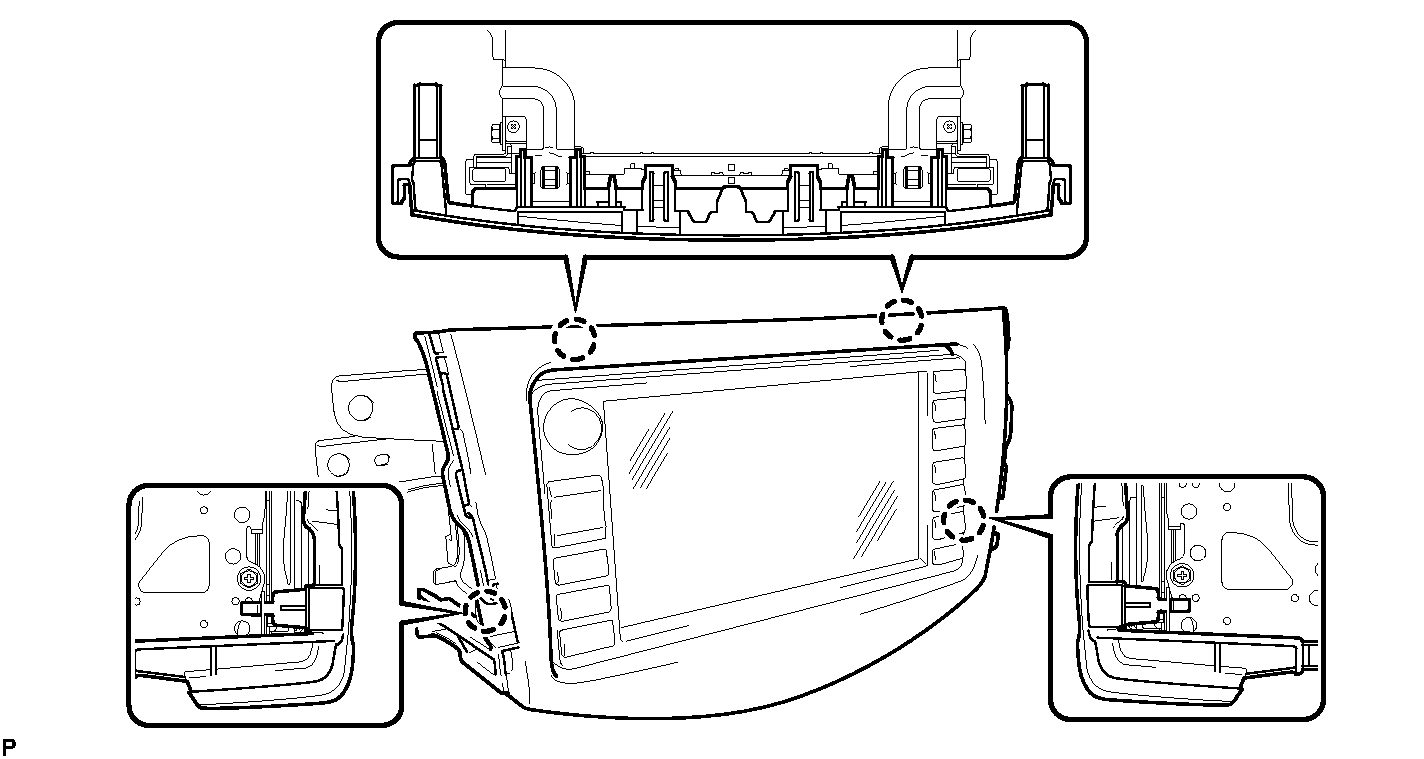

  Fig 5: Identifying Instrument Cluster Finish Panel Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET
1. w/ CD Player:
  1. Connect all the connectors to install the navigation receiver.

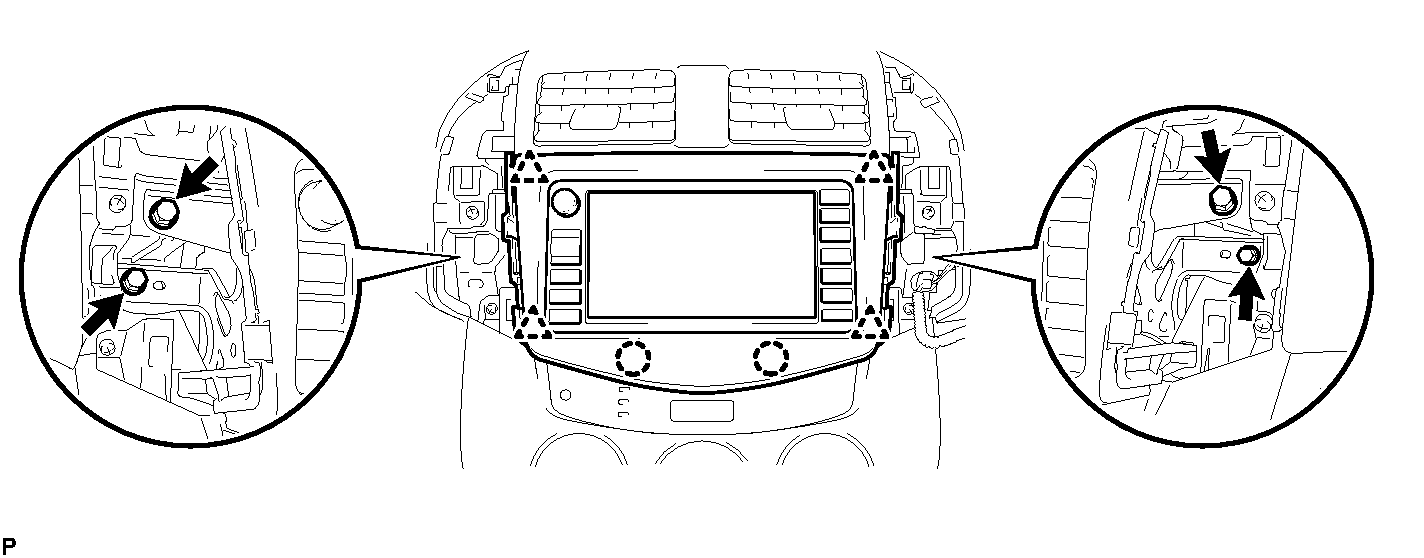

    Fig 6: Locating Navigation Receiver Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Insert the navigation receiver to attach the 2 claws and 4 clips on its backside.
  3. Install the 4 bolts.
    Torque: 12.8 N*m (130 kgf*cm, 9 ft.*lbf)
2. w/ DVD Player:
  1. Connect all connectors to install the navigation receiver.

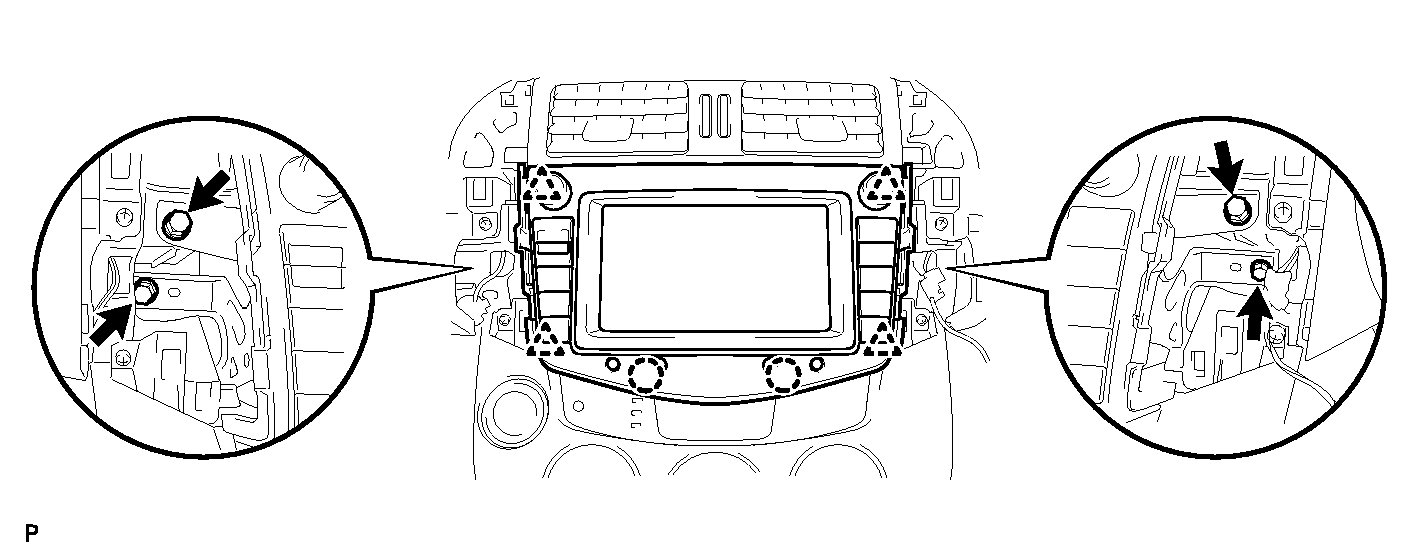

    Fig 7: Identifying Navigation Receiver Assembly With Bracket
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Insert the navigation receiver to attach the 2 claws and 4 clips on its backside.
  3. Install the 4 bolts.
    Torque: 12.8 N*m (130 kgf*cm, 9 ft.*lbf)
INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER . Refer to INSTALLATION - Step 8
INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER . Refer to INSTALLATION - Step 9
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
