Lower Instrument Panel: Disassembly

  1. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
  2. REMOVE STEREO JACK ADAPTER ASSEMBLY
    1. Detach the 2 claws and remove the stereo jack adapter.

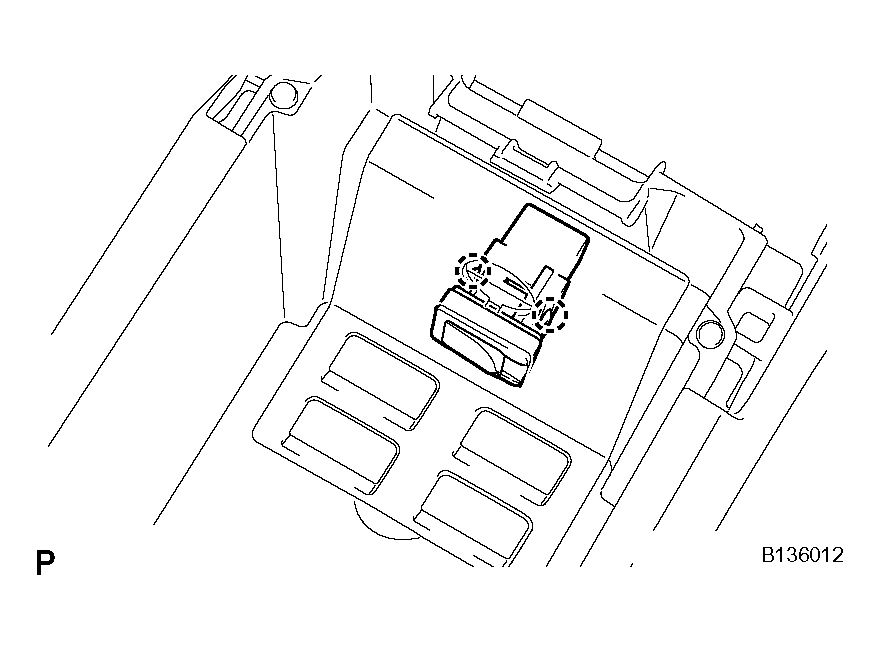

      Fig 1: Removing Stereo Jack Adapter Assembly
      G04491567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
