Valve Body: Components

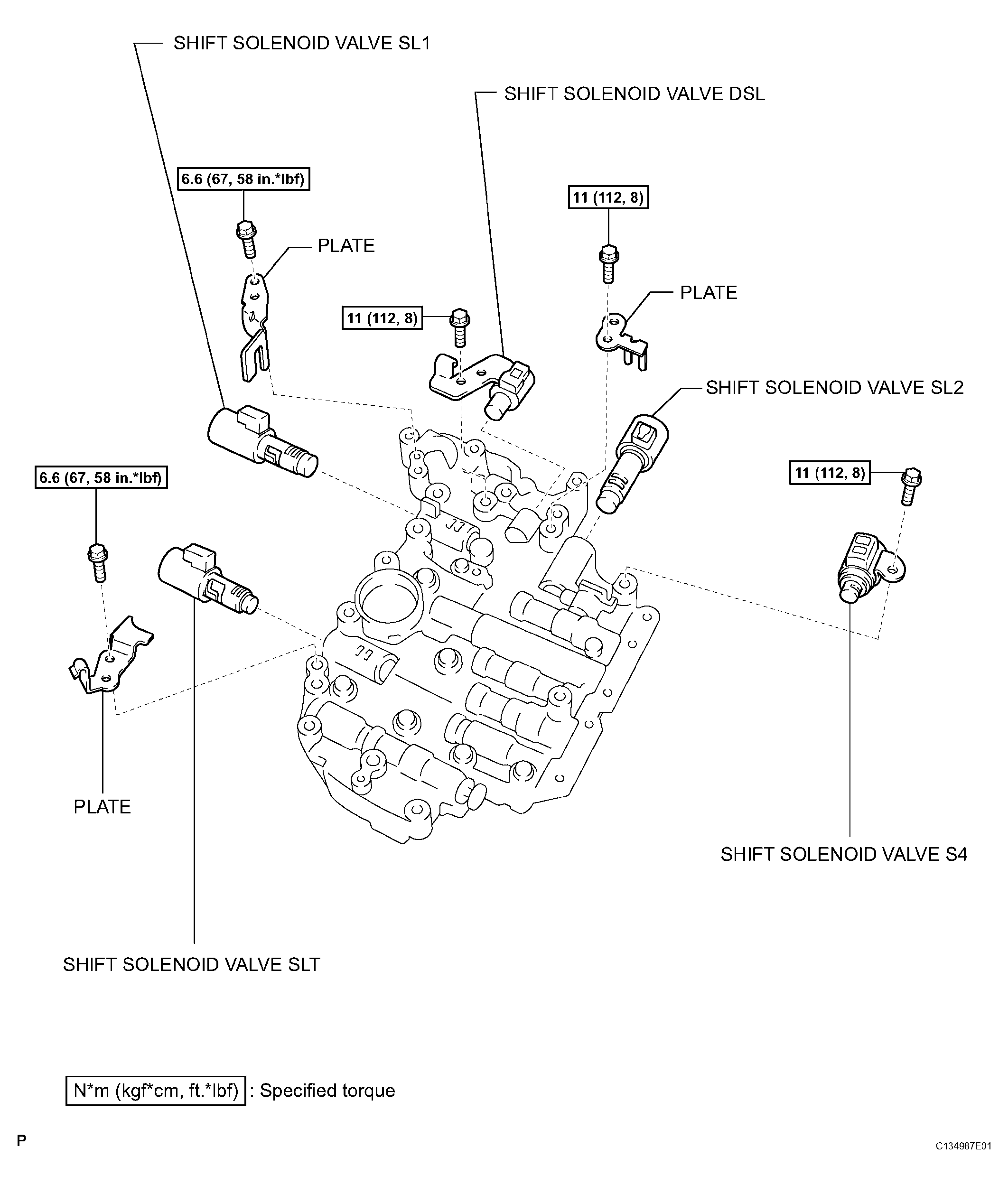

Fig 1: Valve Body Replacement Components & Torque Specification

G04488684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
