Valve Body Assembly: Components

Fig 1: Valve Body Assembly Replacement Components & Torque Specification (1 Of 2)
G04488223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

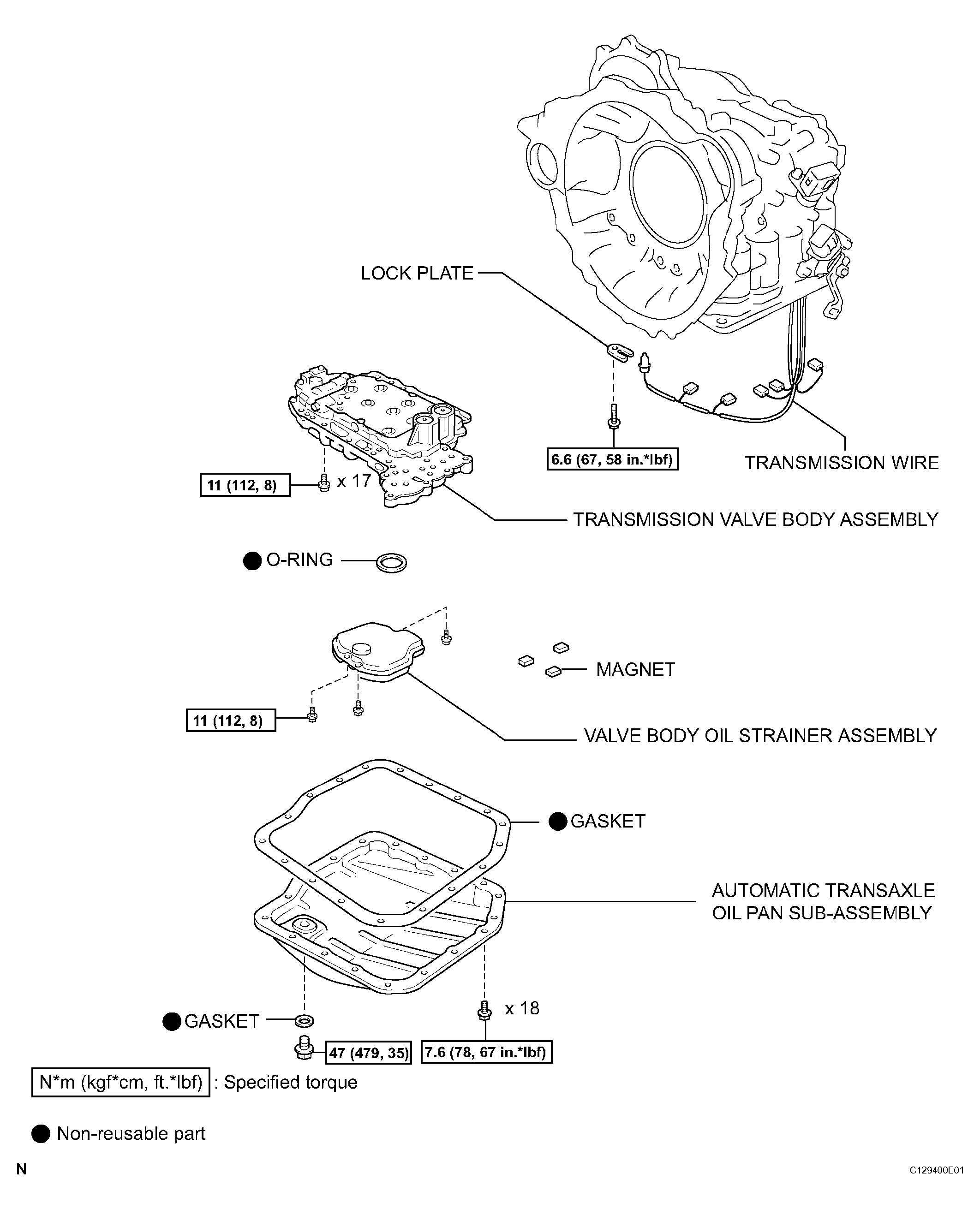

Fig 2: Valve Body Assembly Replacement Components & Torque Specification (2 Of 2)
G04488224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
