UNDERDRIVE Clutch: Components

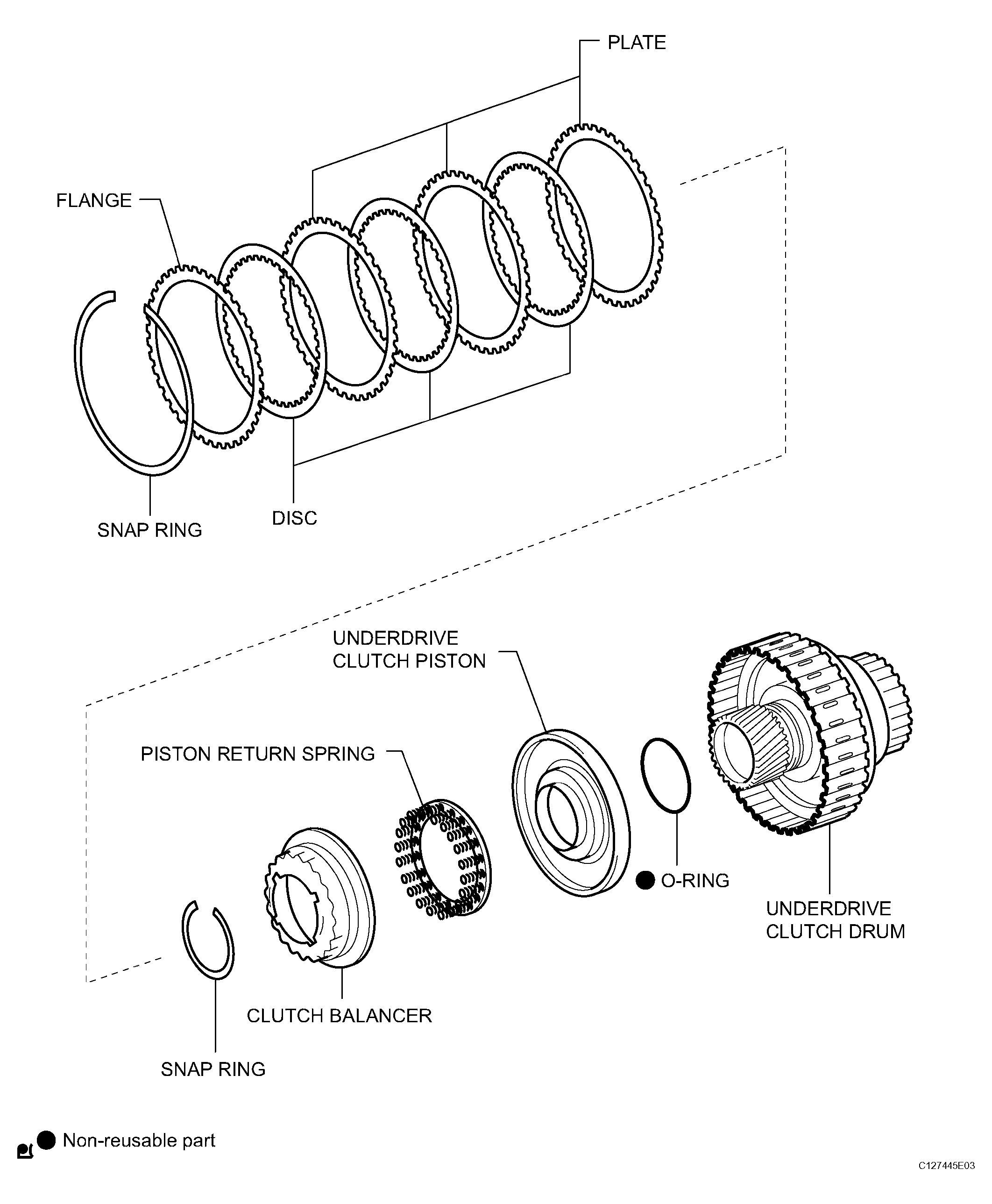

Fig 1: Identifying Underdrive Clutch Components

G04488663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
