Transmission Wire: Components

Fig 1: Transmission Wire Replacement Components & Torque Specification (1 Of 2)
G04488210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

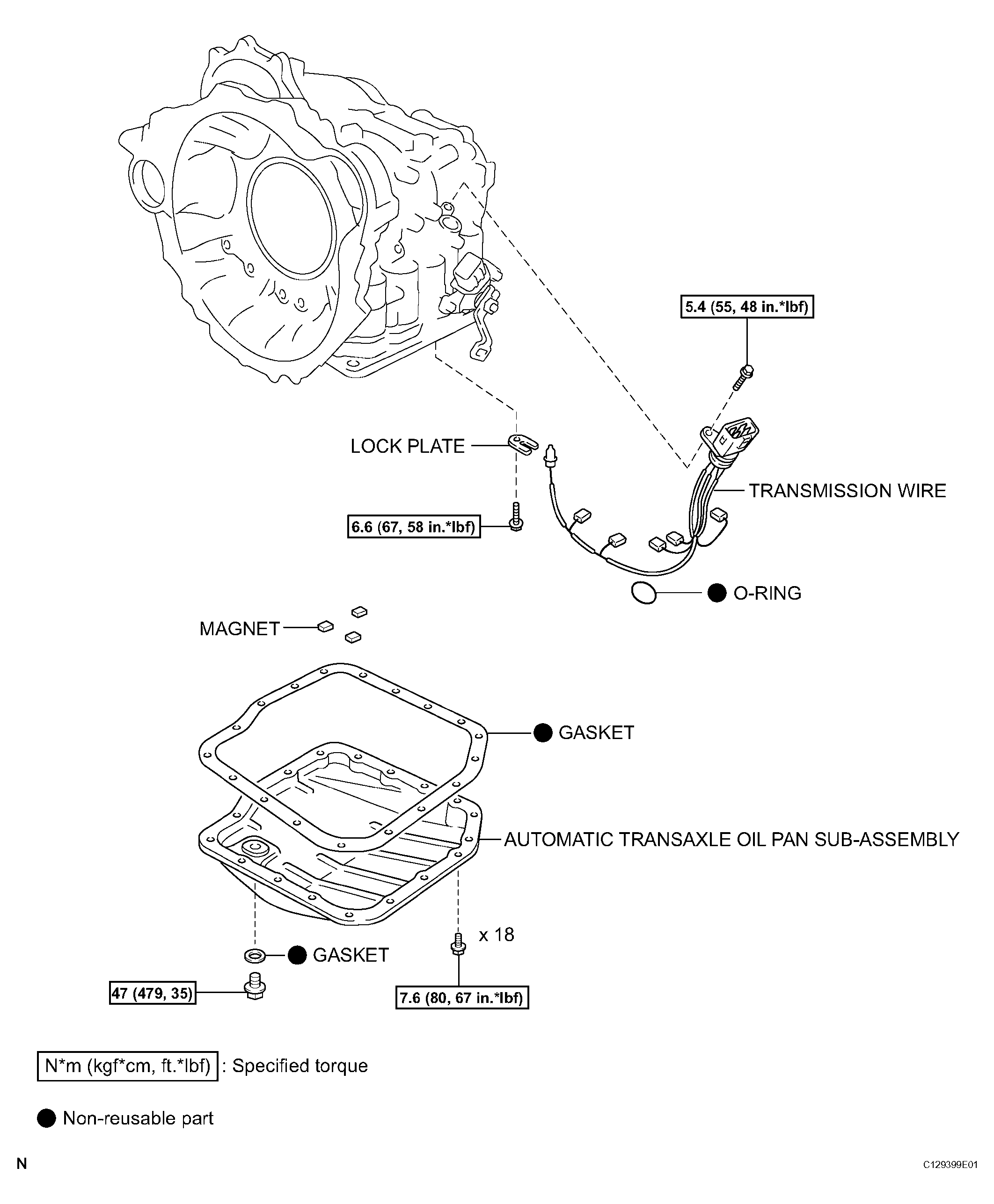

Fig 2: Transmission Wire Replacement Components & Torque Specification (2 Of 2)
G04488211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
