Oil Pump: Components

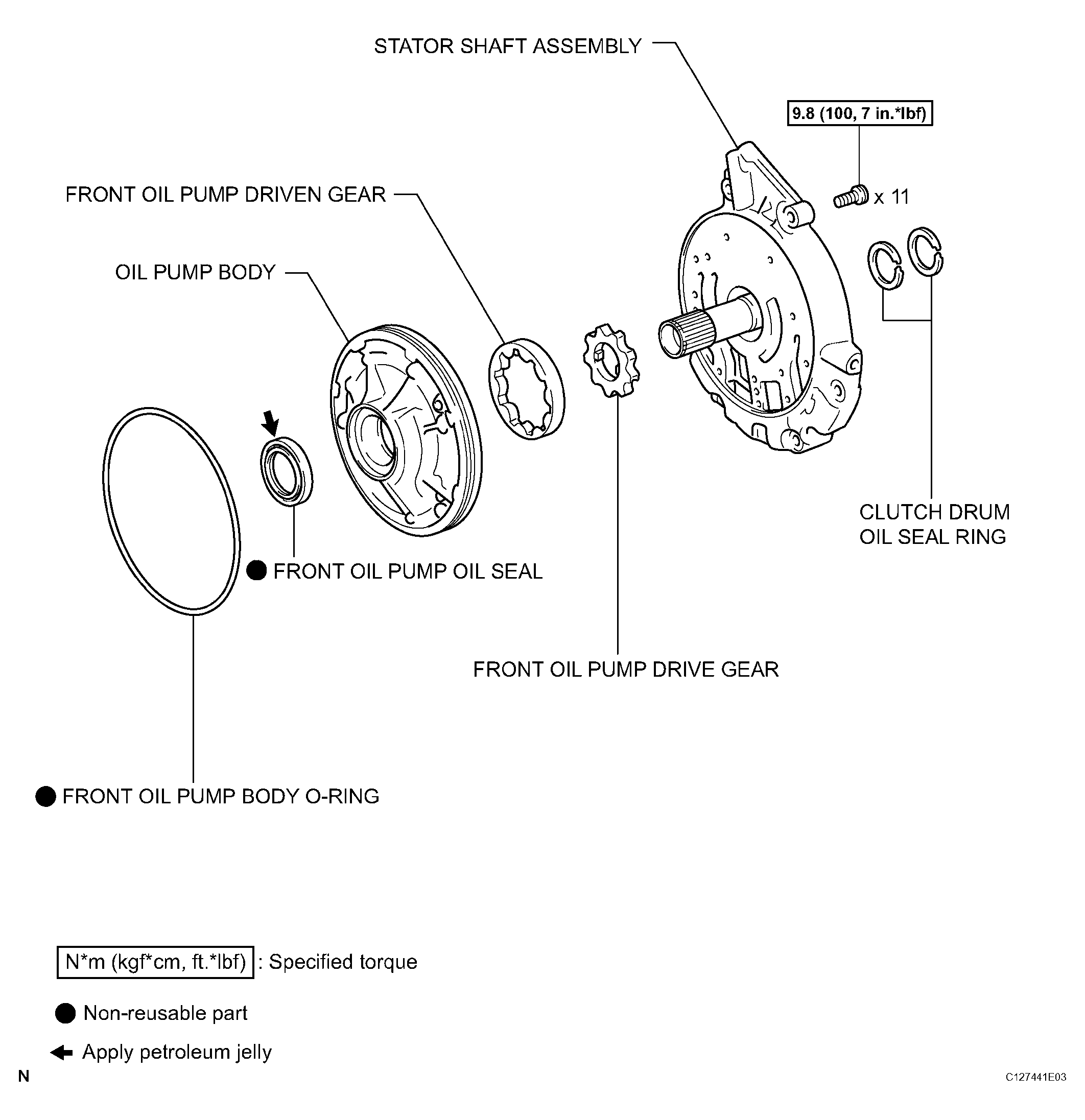

Fig 1: Oil Pump Replacement Components & Torque Specification

G04488571

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
