Home >> Toyota >> 2007 >> RAV4 Base, 2.4 D, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U241E >> Forward Clutch >> Components

Forward Clutch: Components

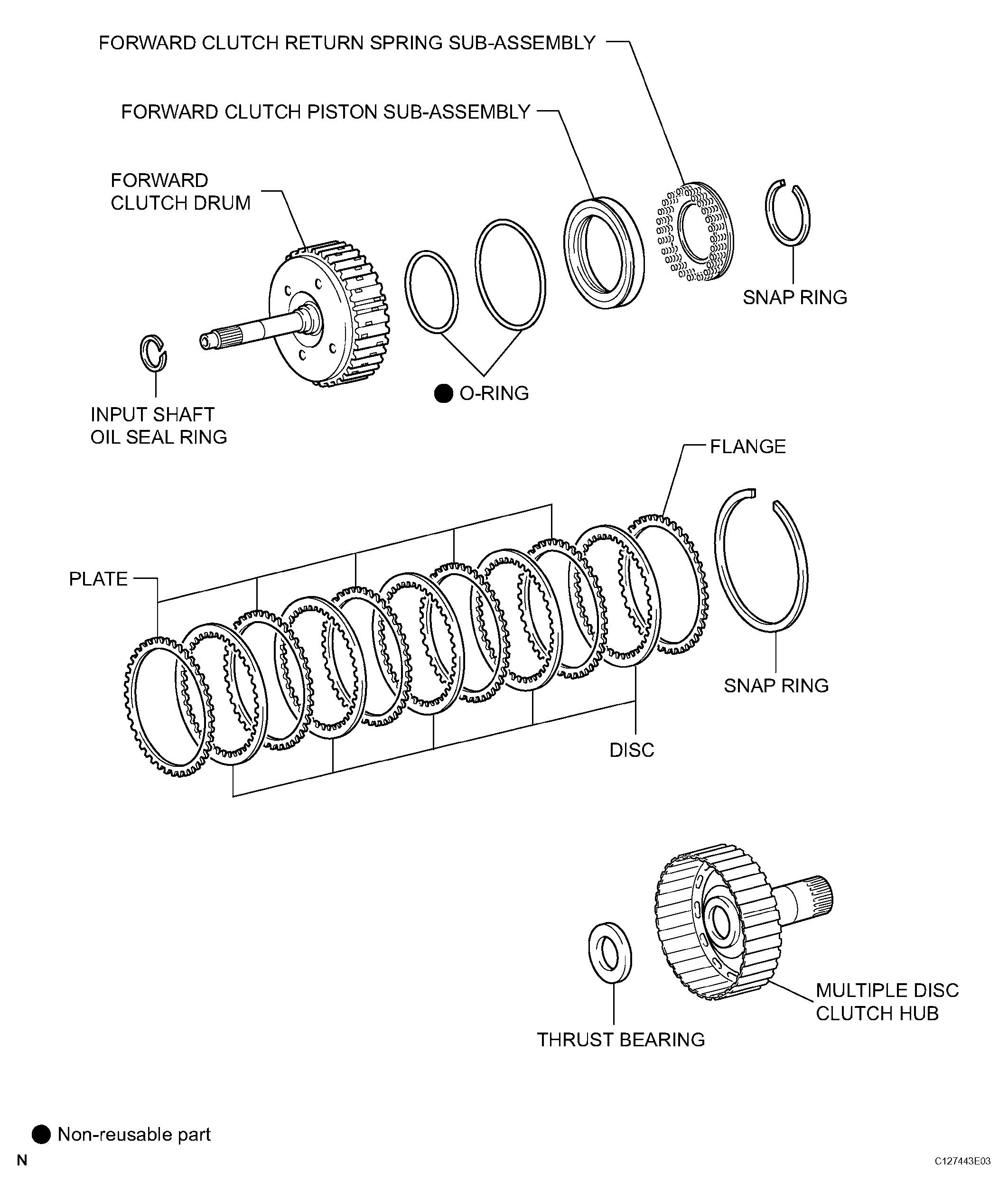

Fig 1: Identifying Forward Clutch Components

G04488600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
