Floor Shift Assembly: Reassembly

INSTALL SHIFT LOCK RELEASE BUTTON
1. Install the spring and button and attach the claws to the position indicator light housing.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

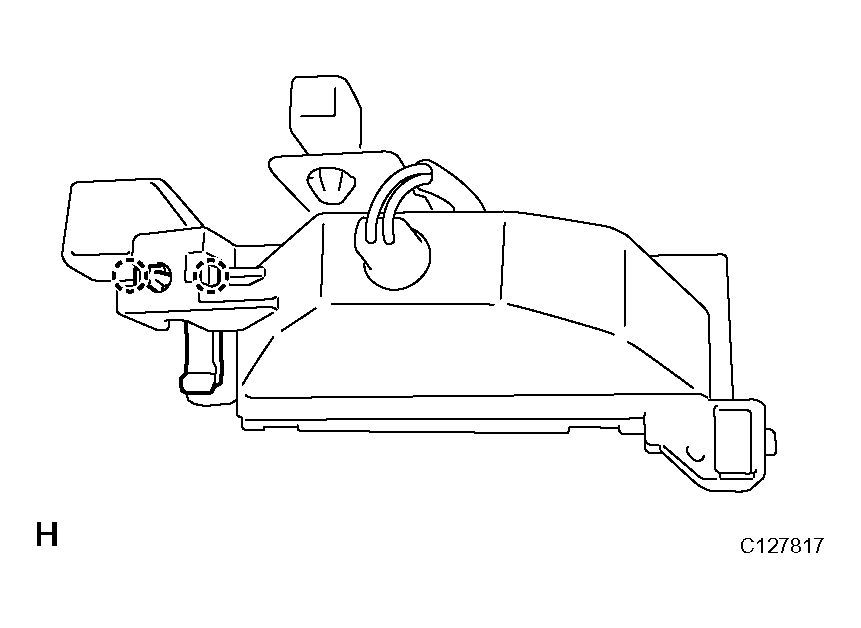

Fig 1: Attaching Claws To Position Indicator Light Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR LIGHT HOUSING
1. Install the indicator light housing and the 2 claws to the shift position indicator housing.

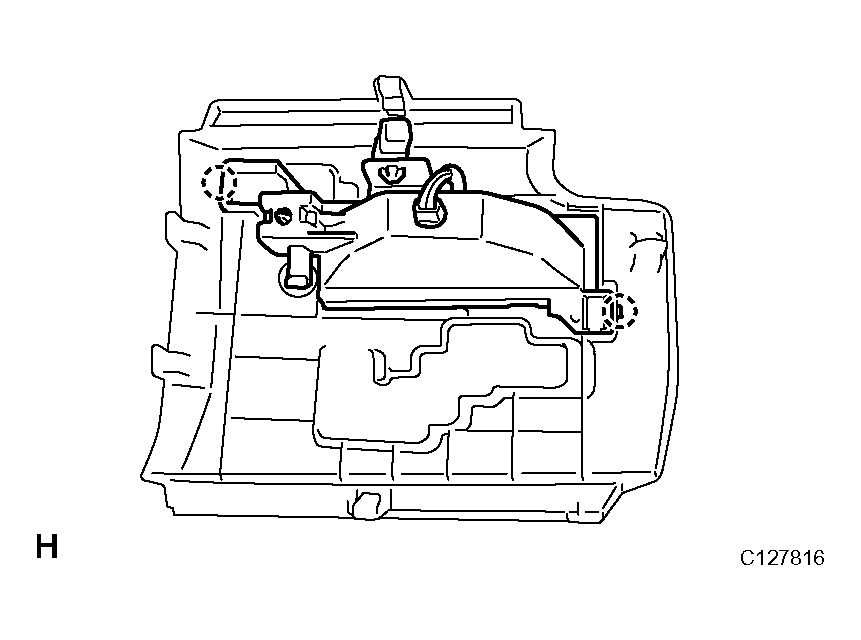

  Fig 2: Installing Indicator Light Housing And Claws To Shift Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER POSITION INDICATOR HOUSING
1. Install the position indicator slide cover with slide cover No. 2 to the indicator housing.
2. Install the housing and attach the 4 claws to the floor shift assembly.

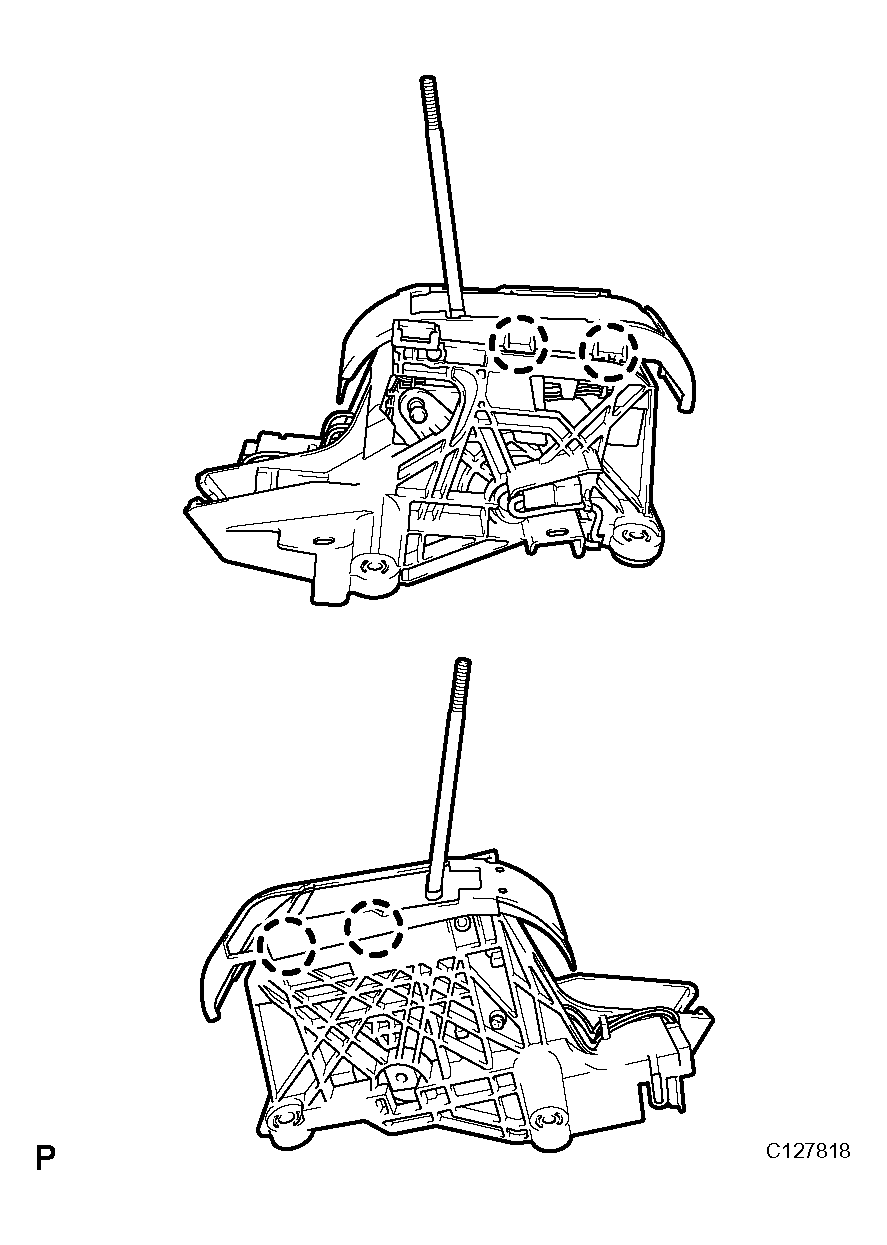

  Fig 3: Installing Housing And Attach Claws To Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
