Floor Shift Assembly: Components

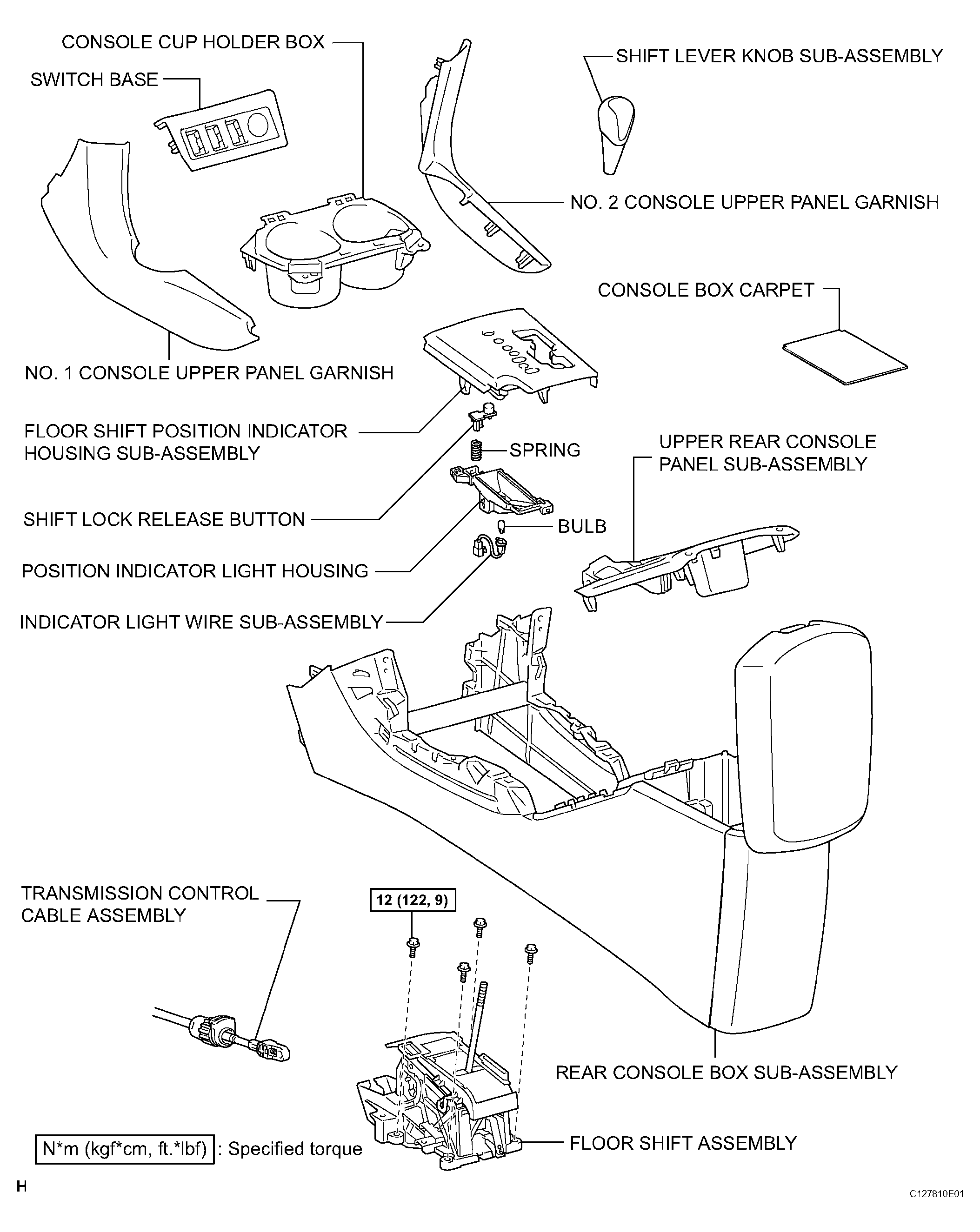

Fig 1: Floor Shift Assembly Replacement Components & Torque Specification (1 Of 2)
G04488271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

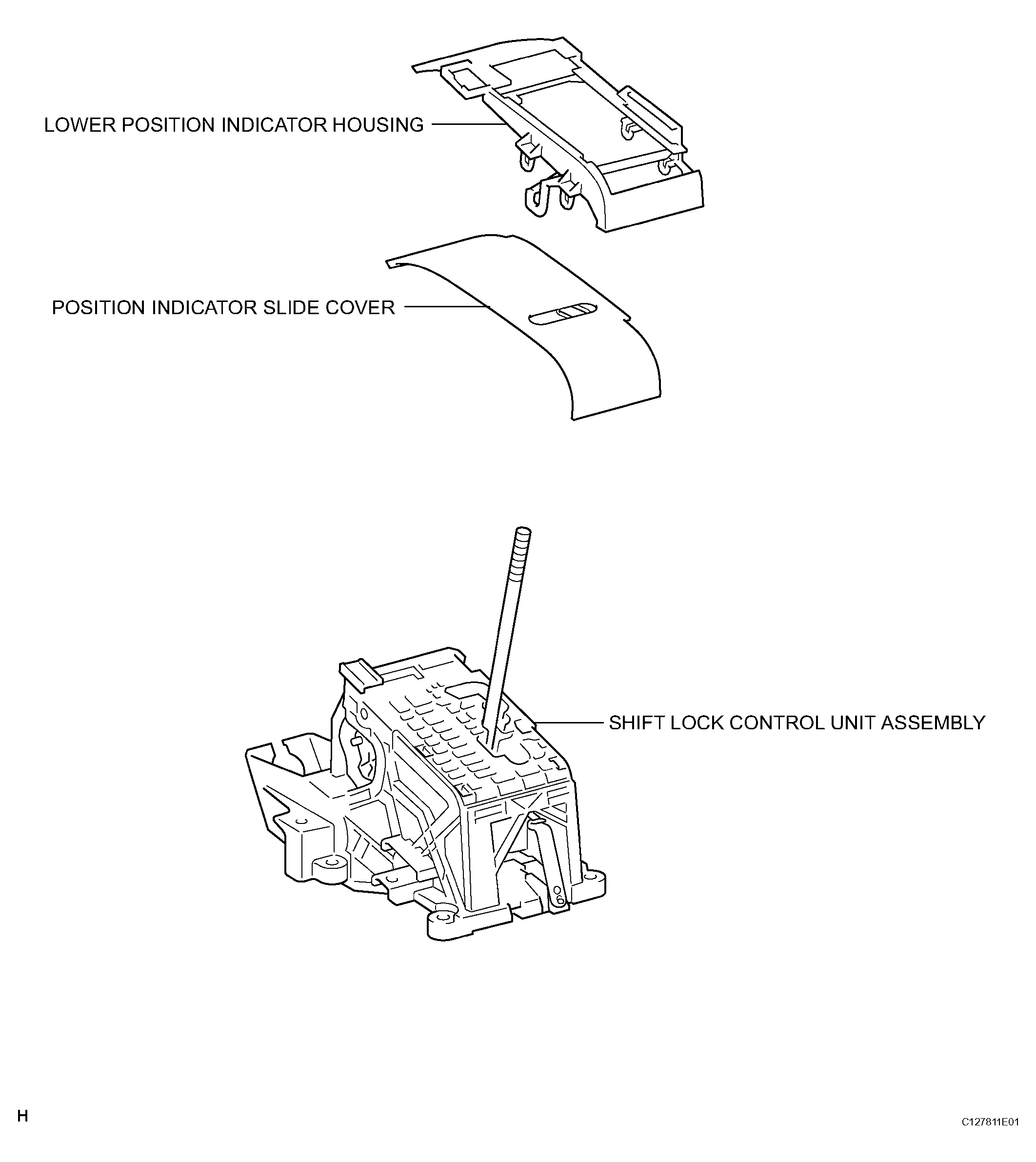

Fig 2: Floor Shift Assembly Replacement Components & Torque Specification (2 Of 2)
G04488272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
