Differential Case: Components

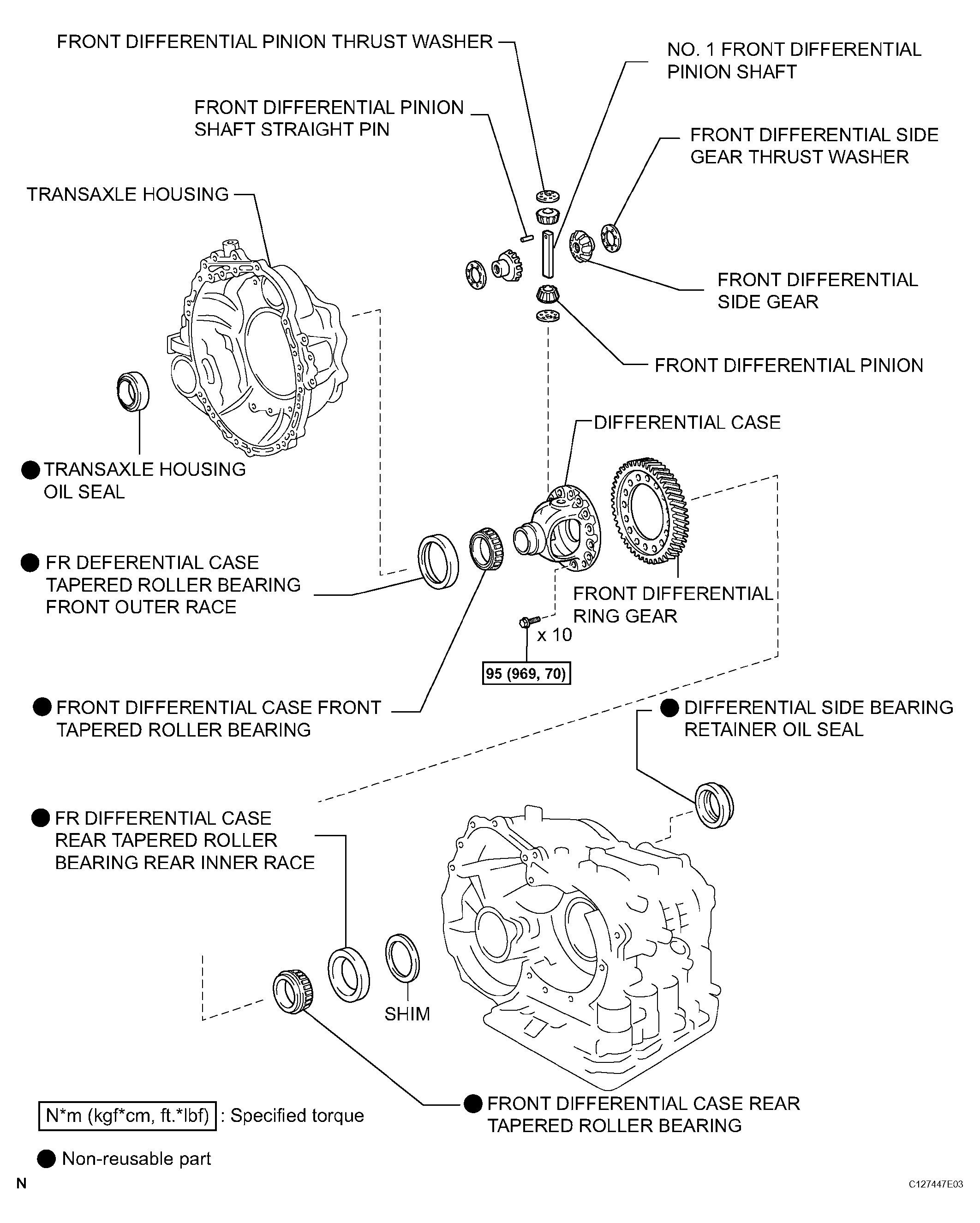

Fig 1: Differential Case Replacement Components & Torque Specification
G04488695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
