System Diagram

The configuration of the electronic control system in the U241E automatic transaxle is as shown in the following chart.

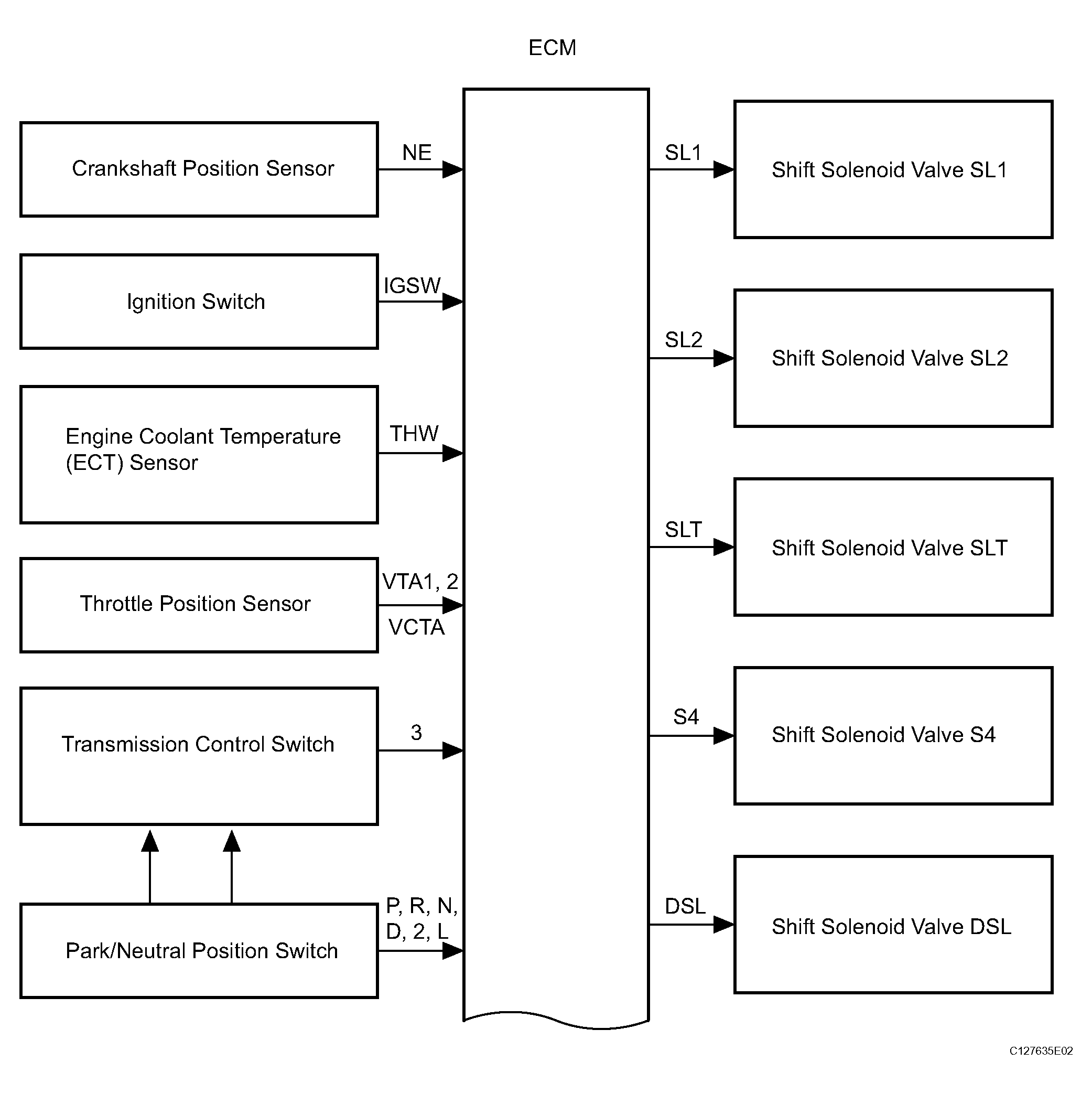

Fig 1: U241E Automatic Transaxle System Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

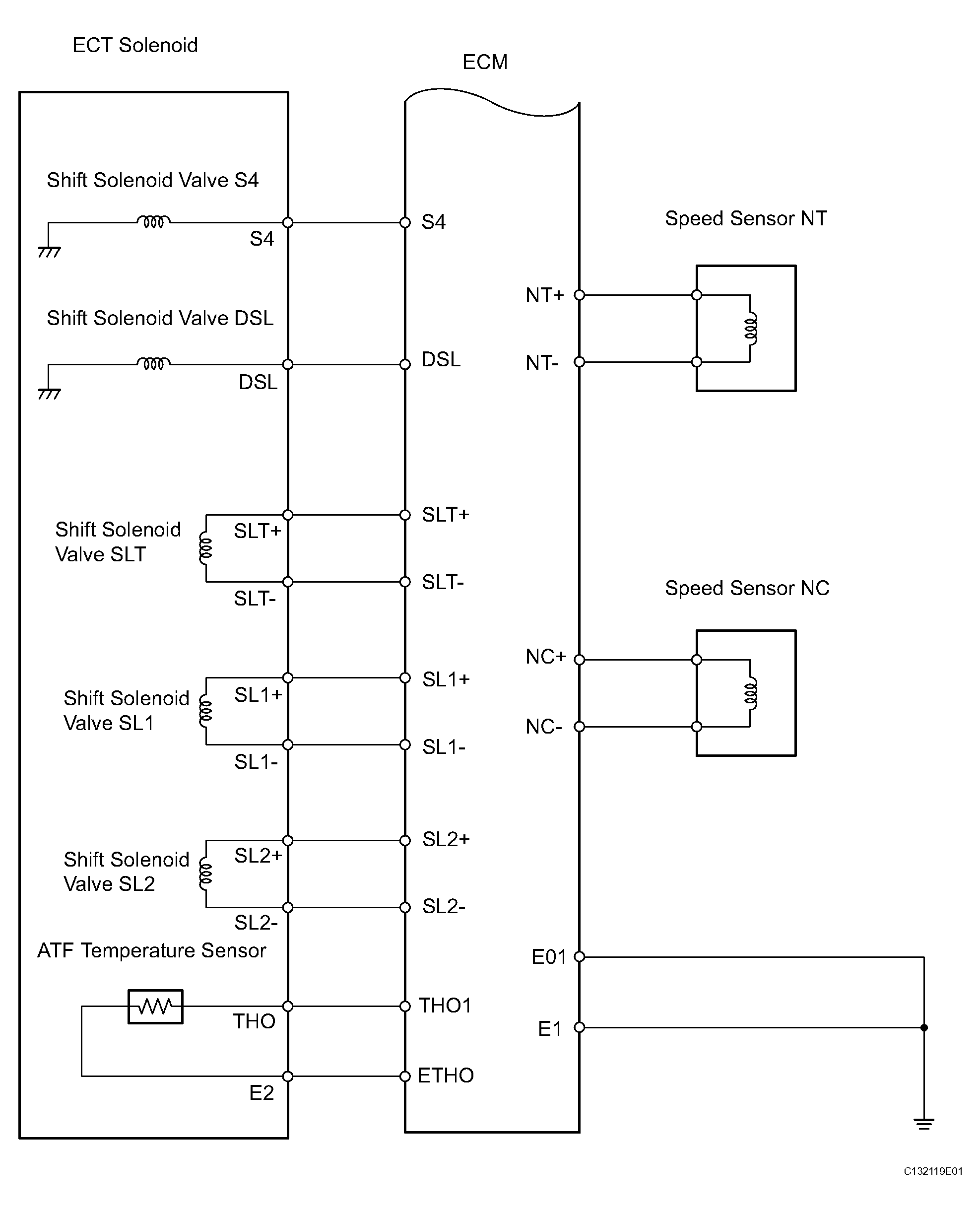

Fig 2: U241E Automatic Transaxle System Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

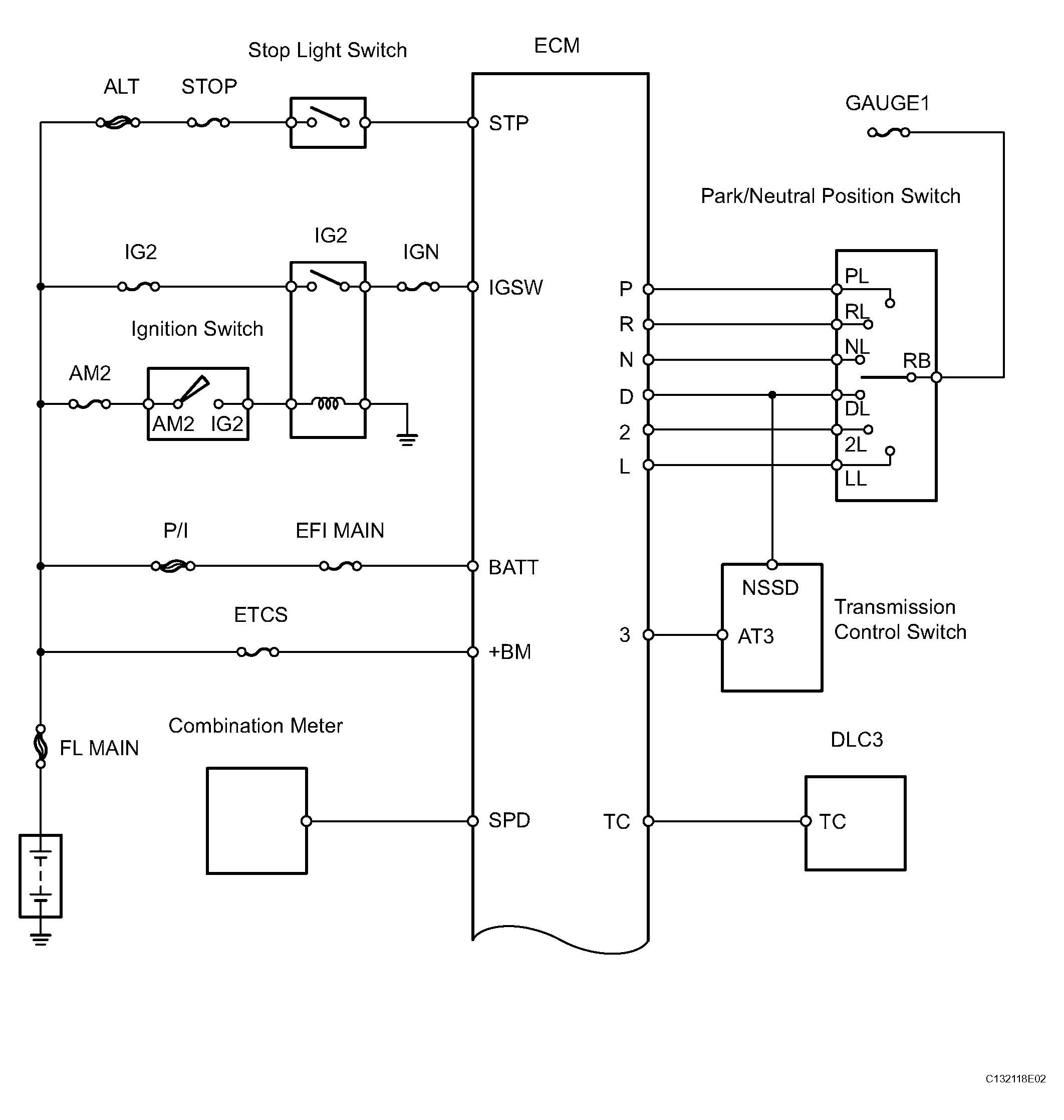

Fig 3: U241E Automatic Transaxle System Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

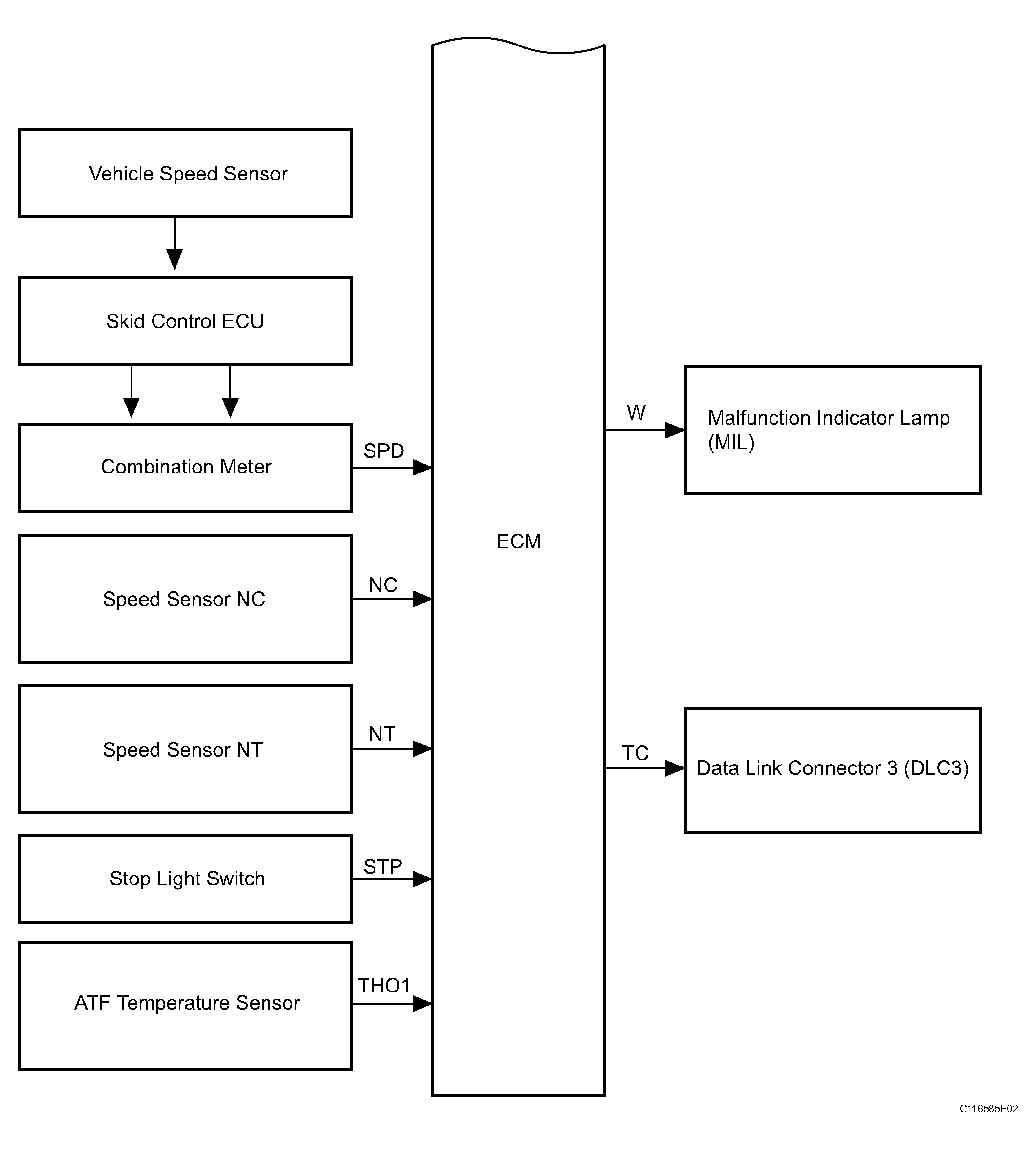

Fig 4: U241E Automatic Transaxle System Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
