Automatic Transaxle Assembly: Components

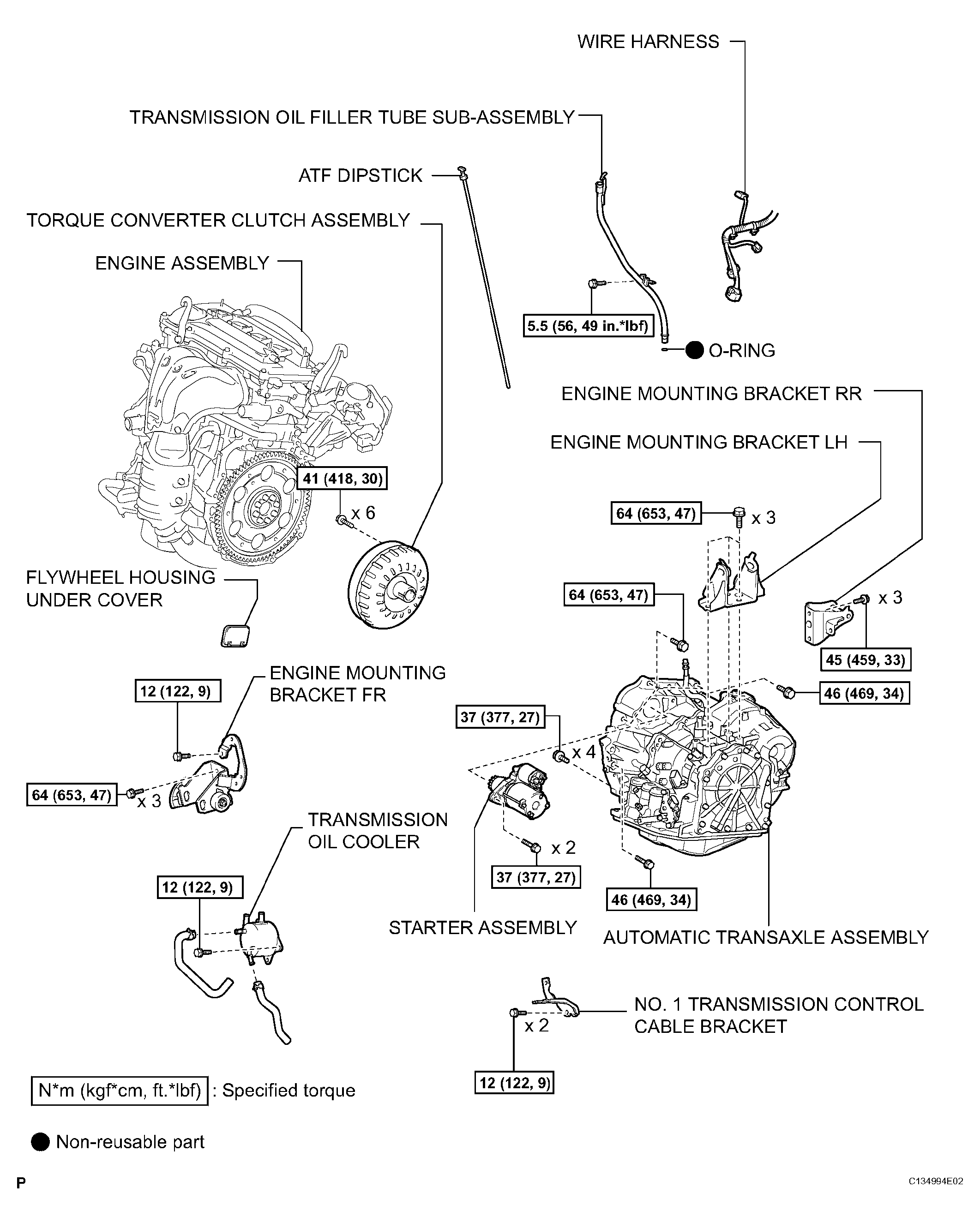

Fig 1: Automatic Transaxle Assembly Replacement Components & Torque Specification

G04488296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
