Rear Upper Control Arm: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. TEMPORARILY INSTALL REAR UPPER CONTROL ARM LH
   1. Temporarily install the control arm with the 2 bolts and 2 nut.

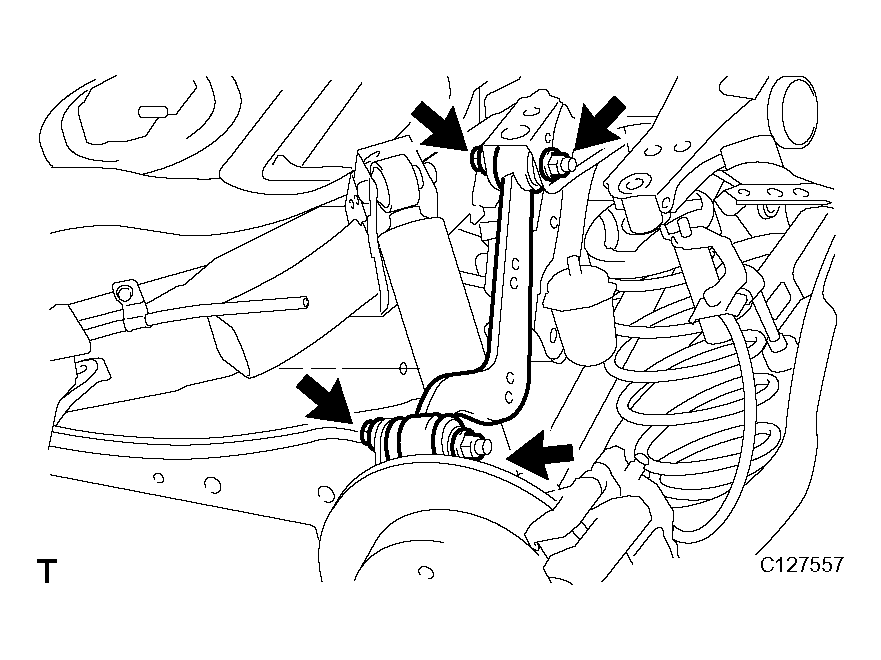

      Fig 1: Installing Control Arm With 2 Bolts And 2 Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Fix the nuts in place and temporarily tighten the bolts.

2. CONNECT SKID CONTROL SENSOR WIRE (for 2WD) (See  INSTALLATION  )
3. CONNECT REAR SPEED SENSOR LH (for 4WD) (See  INSTALLATION  )
4. INSTALL REAR WHEEL
   1. Install the wheel.

      Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

5. TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH
   1. Fix the 2 nuts in place and tighten the 2 bolts.

      Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)
