Rear Trailing Arm: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. TEMPORARILY TIGHTEN REAR TRAILING ARM ASSEMBLY LH
   1. Temporarily install the trailing arm with the 3 bolts and nut to the axle carrier and suspension arm bracket.

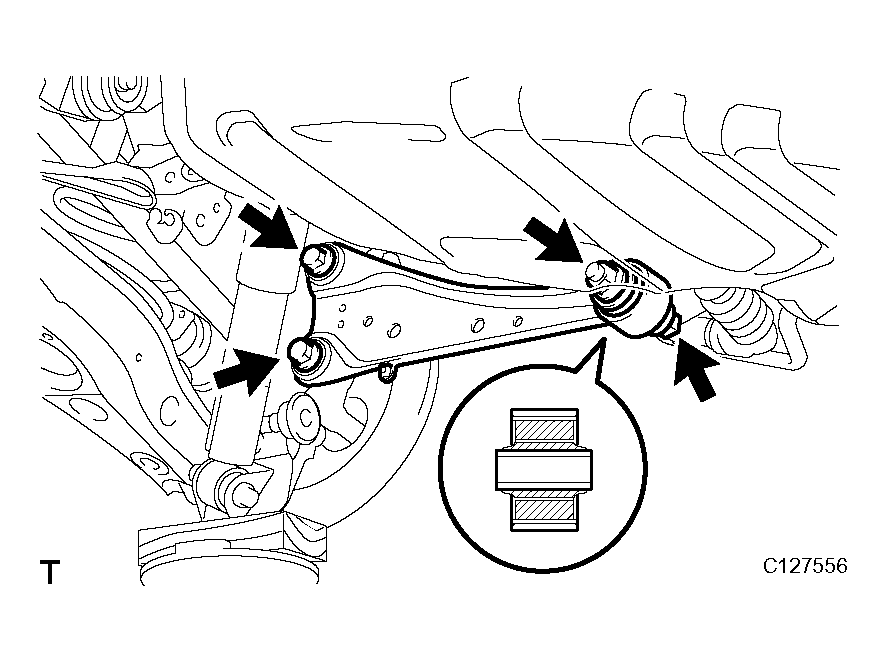

      Fig 1: Installing Trailing Arm With 3 Bolts And Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      While fixing the nut in place, tighten the bolt.

2. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY (See  INSTALLATION  )
3. INSTALL REAR WHEEL

   Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

4. TIGHTEN REAR TRAILING ARM ASSEMBLY LH
   1. Tighten the 3 bolts and nut.

      Torque:

      200 N*m (2,039 kgf*cm, 148 ft.*lbf) for axle carrier

      150 N*m (1,530 kgf*cm, 111 ft.*lbf) for suspension arm bracket

5. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
   1. Inspect and adjust the rear wheel alignment (see REAR WHEEL ALIGNMENT ).
