Rear Shock Absorber: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR SHOCK ABSORBER ASSEMBLY LH
   1. Support the No. 2 suspension arm LH with a jack.
      NOTE: Place a wooden or rubber block between the jack and arm.

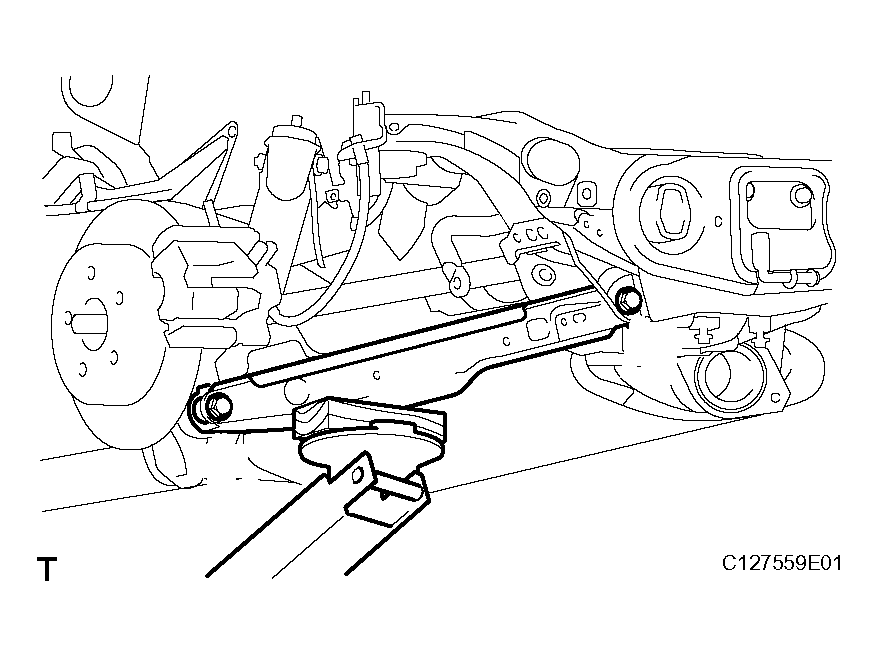

      Fig 1: Supporting No. 2 Suspension Arm LH With Jack

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the bolt and 2 nuts from the suspension member and axle carrier.
   3. Remove the 2 bolts and disconnect the shock absorber with the bracket.

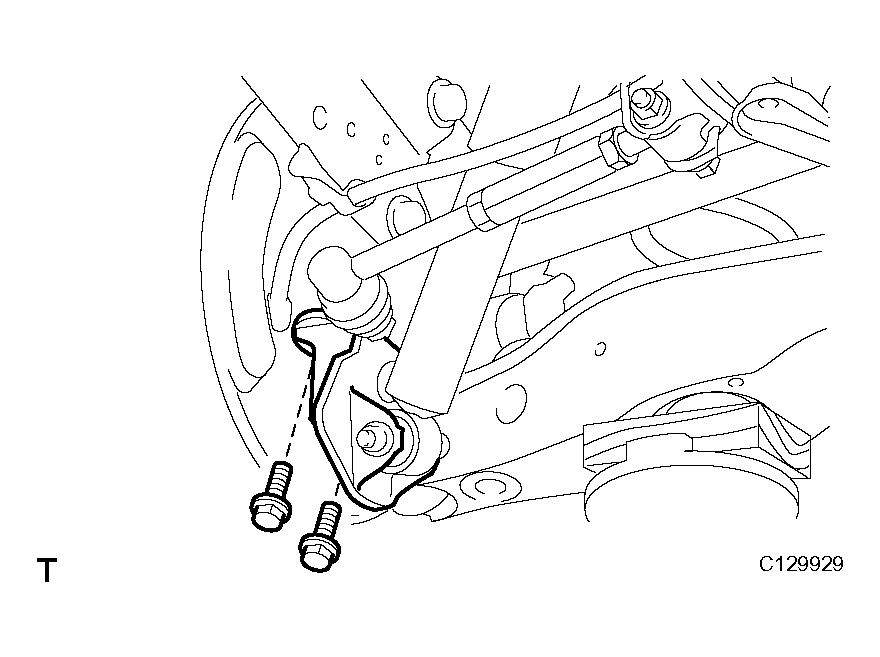

      Fig 2: Removing 2 Bolts And Disconnecting Shock Absorber With Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the nut and bolt from the shock absorber upper side.

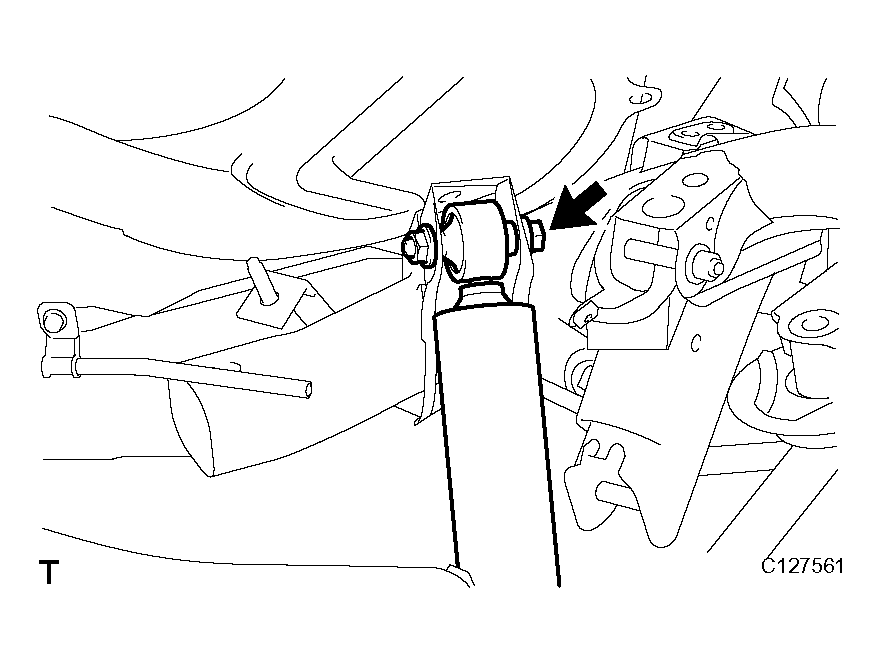

      Fig 3: Removing Nut And Bolt From Shock Absorber Upper Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the shock absorber from the vehicle.
   6. Remove the nut and bolt from the bracket.

      HINT:

      While fixing the nut in place, loosen and remove the bolt.
