Rear Coil Spring: Components

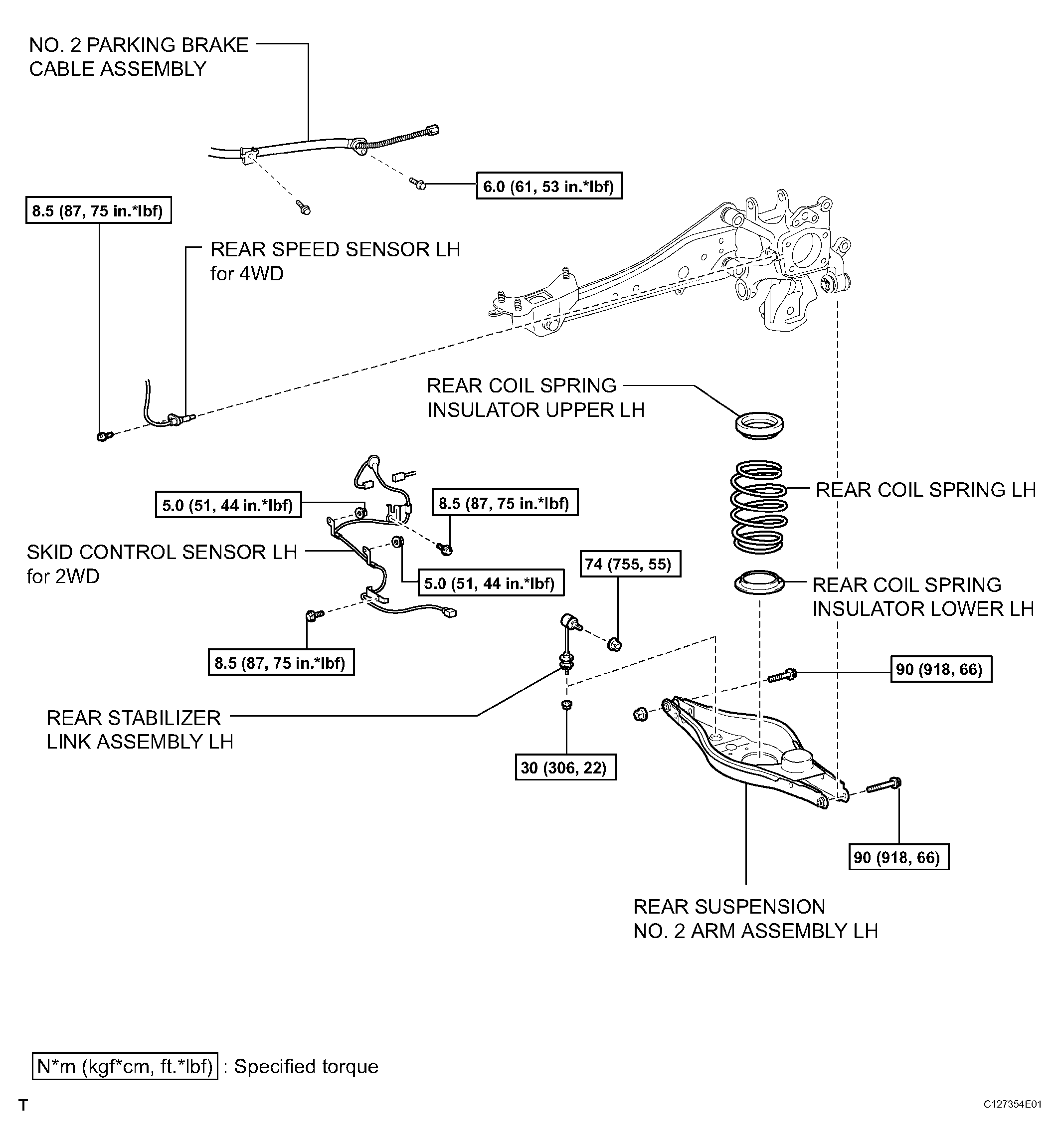

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications

G04489226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
