Front Stabilizer Bar: Installation

1. Install the bush.

   HINT:

   • Install each bush to the inner side of each bush stopper on the stabilizer bar.
   • Install each bush with its slit facing the vehicle rear side.

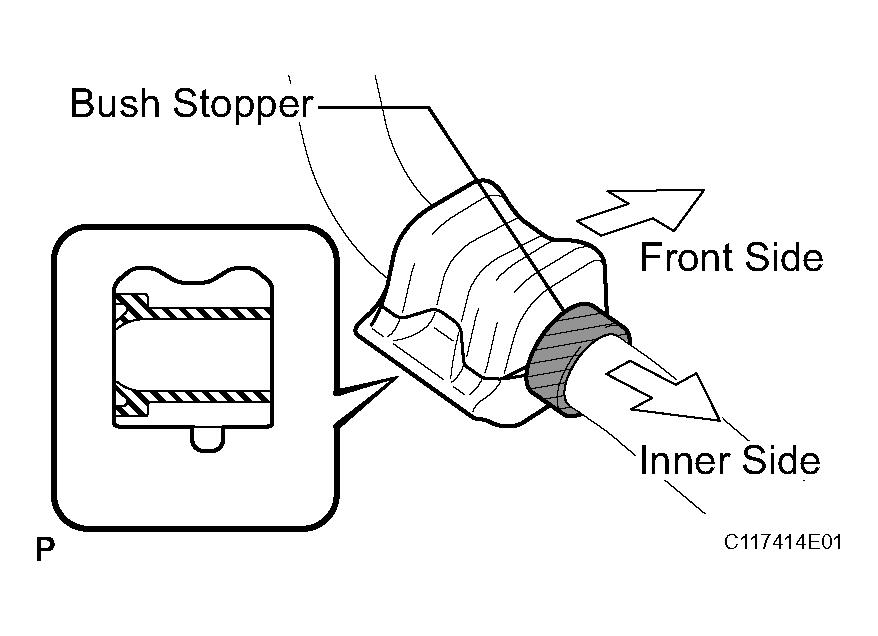

     Fig 1: Installing Front No. 1 Stabilizer Bar Bush LH

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.

1. Install the stabilizer bar to the crossmember.

1. Install the member brace with the 4 bolt to the suspension member.

   Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

HINT:

Use the same procedures described for the LH side.

1. Install the link with the 2 nut.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

HINT:

Use the same procedures described for the LH side.

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
