Front Stabilizer Bar: Components

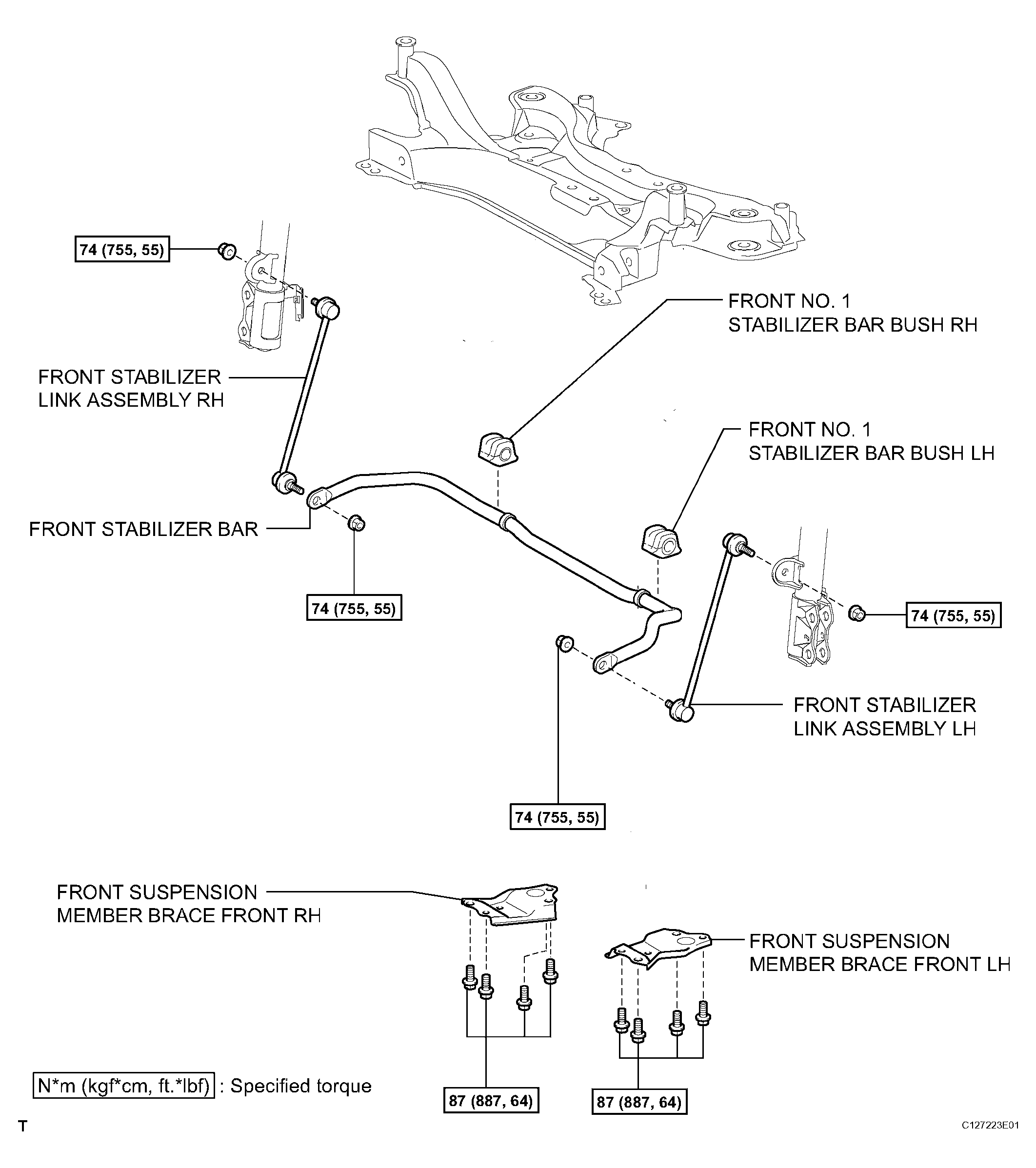

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications

G04489221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
