Home >> Toyota >> 2007 >> RAV4 Base, 2.4 D, FWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Front Shock Absorber With Coil Spring >> Components

Front Shock Absorber With Coil Spring: Components

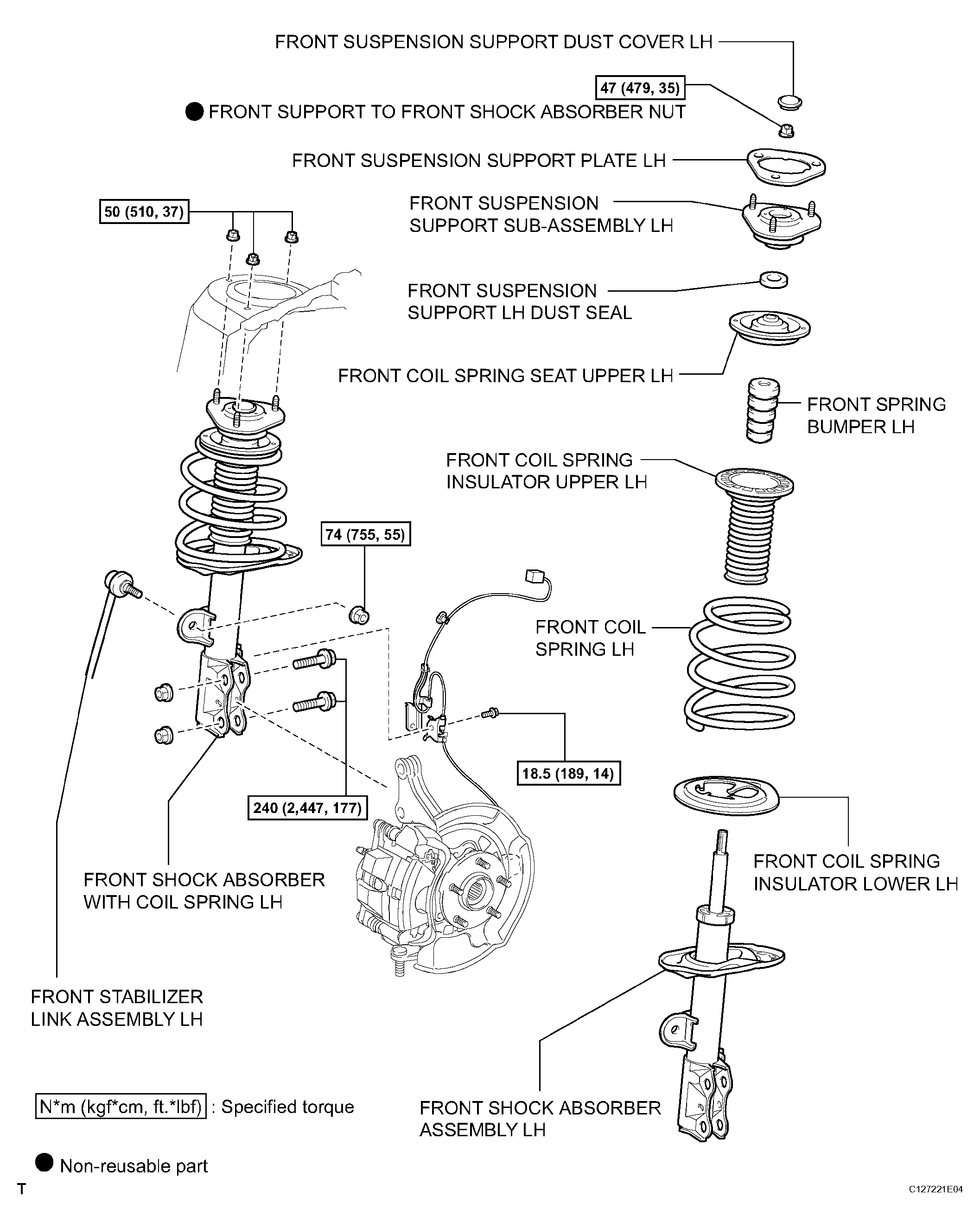

Fig 1: Front Shock Absorber With Coil Spring Replacement Components With Torque Specifications

G04489177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
