Home >> Toyota >> 2007 >> RAV4 Base, 2.4 D, FWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Front Lower Ball Joint >> Components

Front Lower Ball Joint: Components

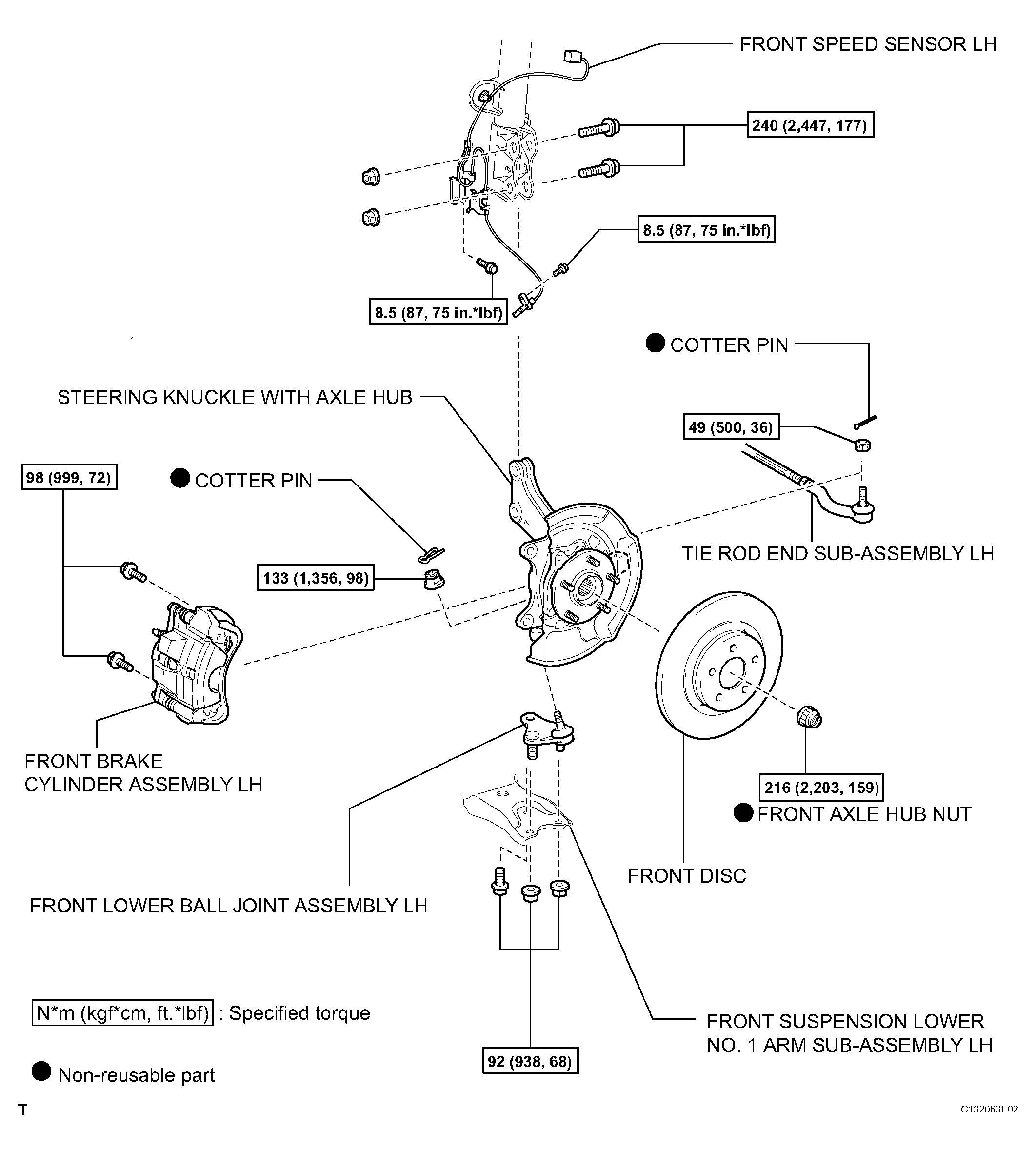

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications

G04489218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
