Home >> Toyota >> 2007 >> RAV4 Base, 2.4 D, FWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Front Seat Inner Belt Assembly >> Components

Front Seat Inner Belt Assembly: Components

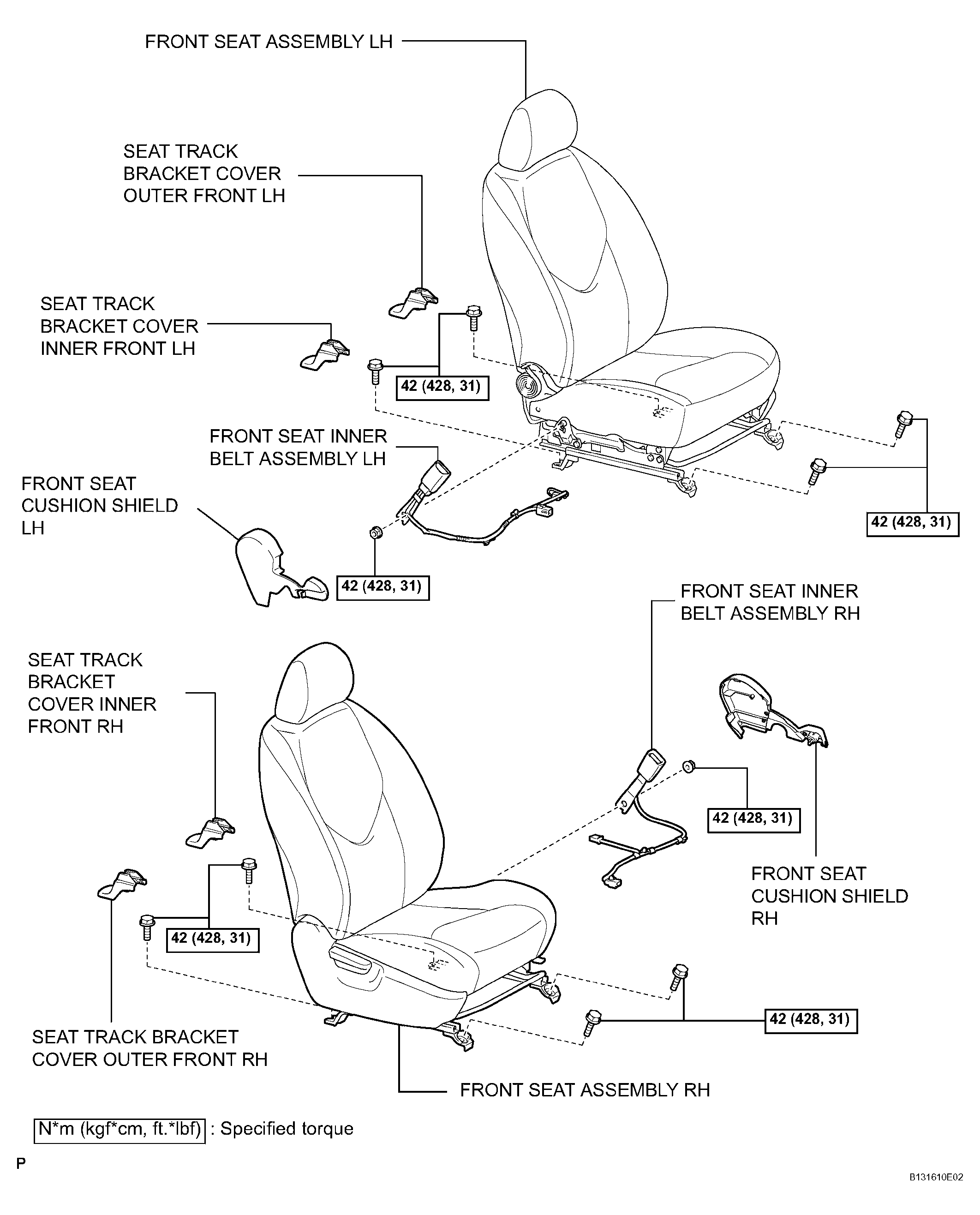

Fig 1: Front Seat Inner Belt Assembly Replacement Components With Torque Specifications

G04490538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
