Child Restraint Seat Tether Anchor: Components

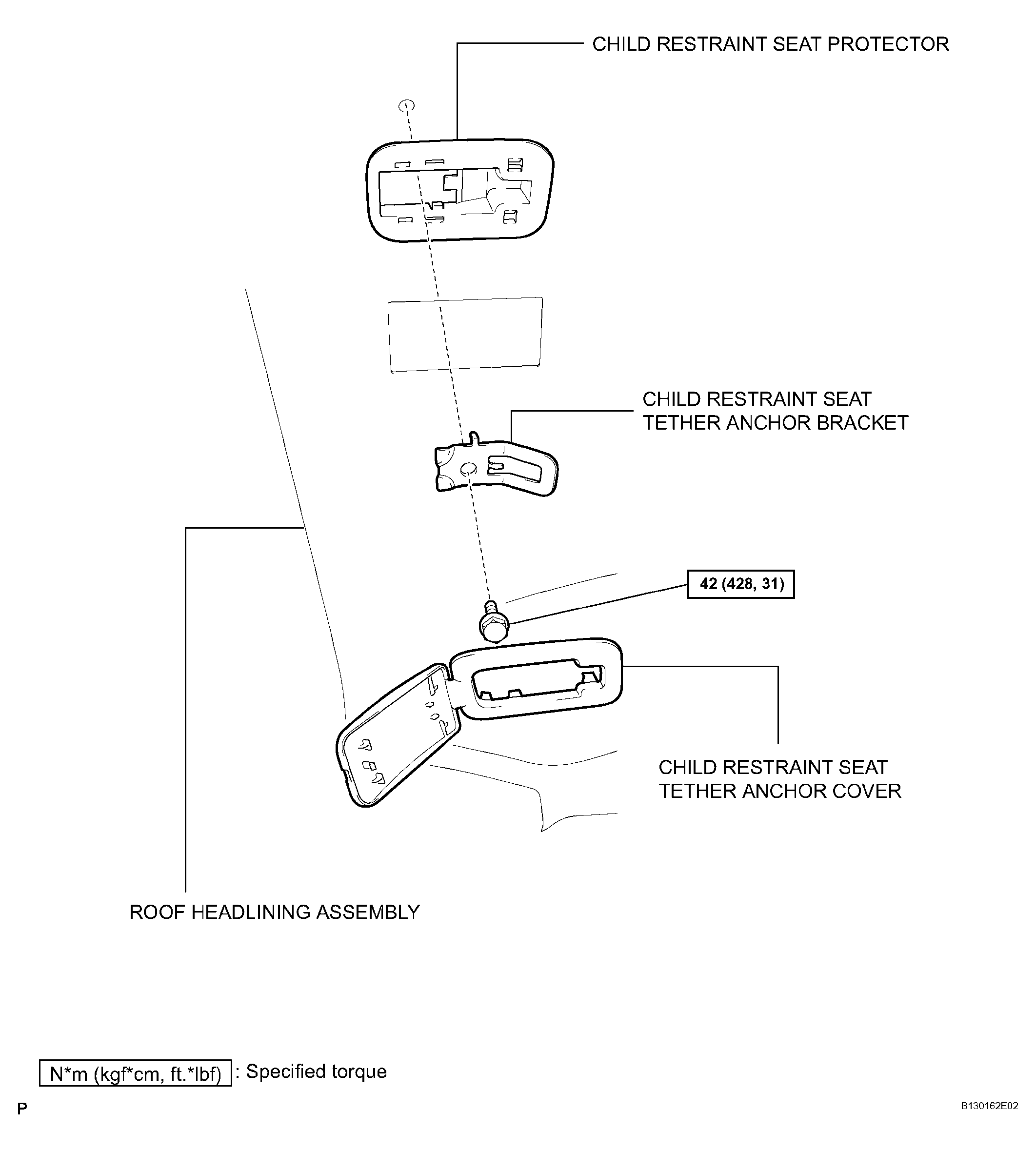

Fig 1: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications
G04490623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

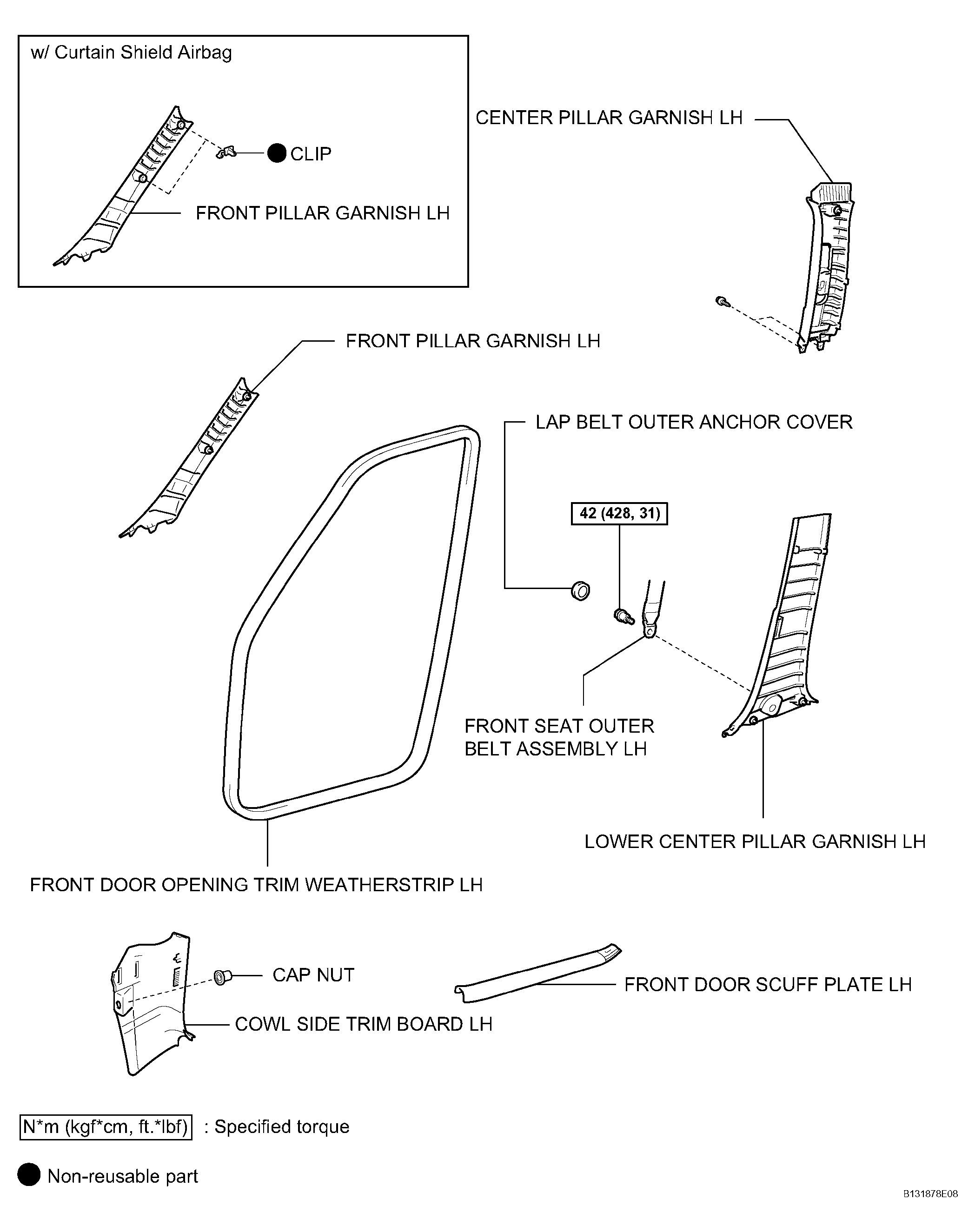

Fig 2: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/Curtain Shield Airbag) (1 Of 2)
G04490624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

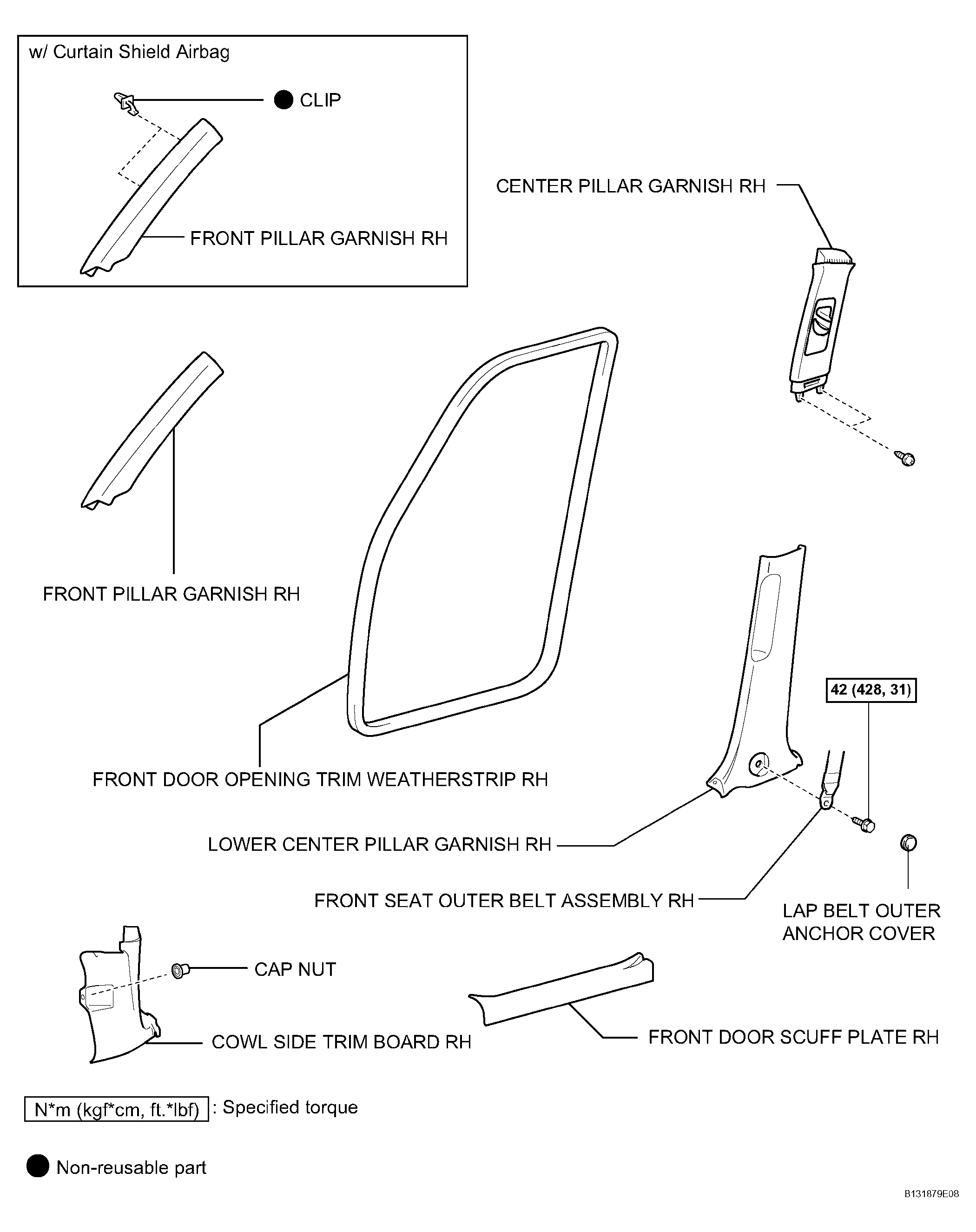

Fig 3: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/Curtain Shield Airbag) (2 Of 2)
G04490625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

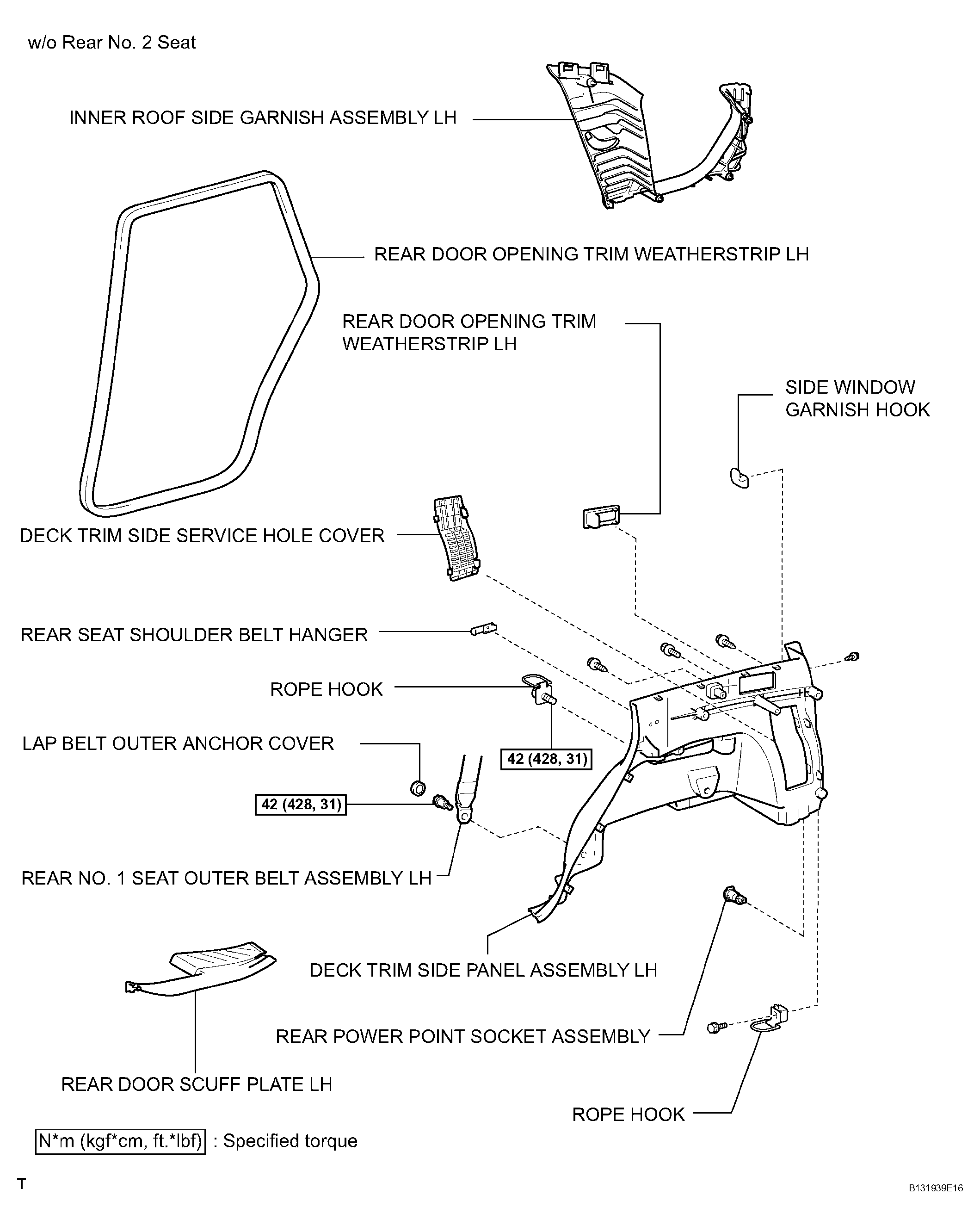

Fig 4: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/O Rear No. 2 Seat)
G04490626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

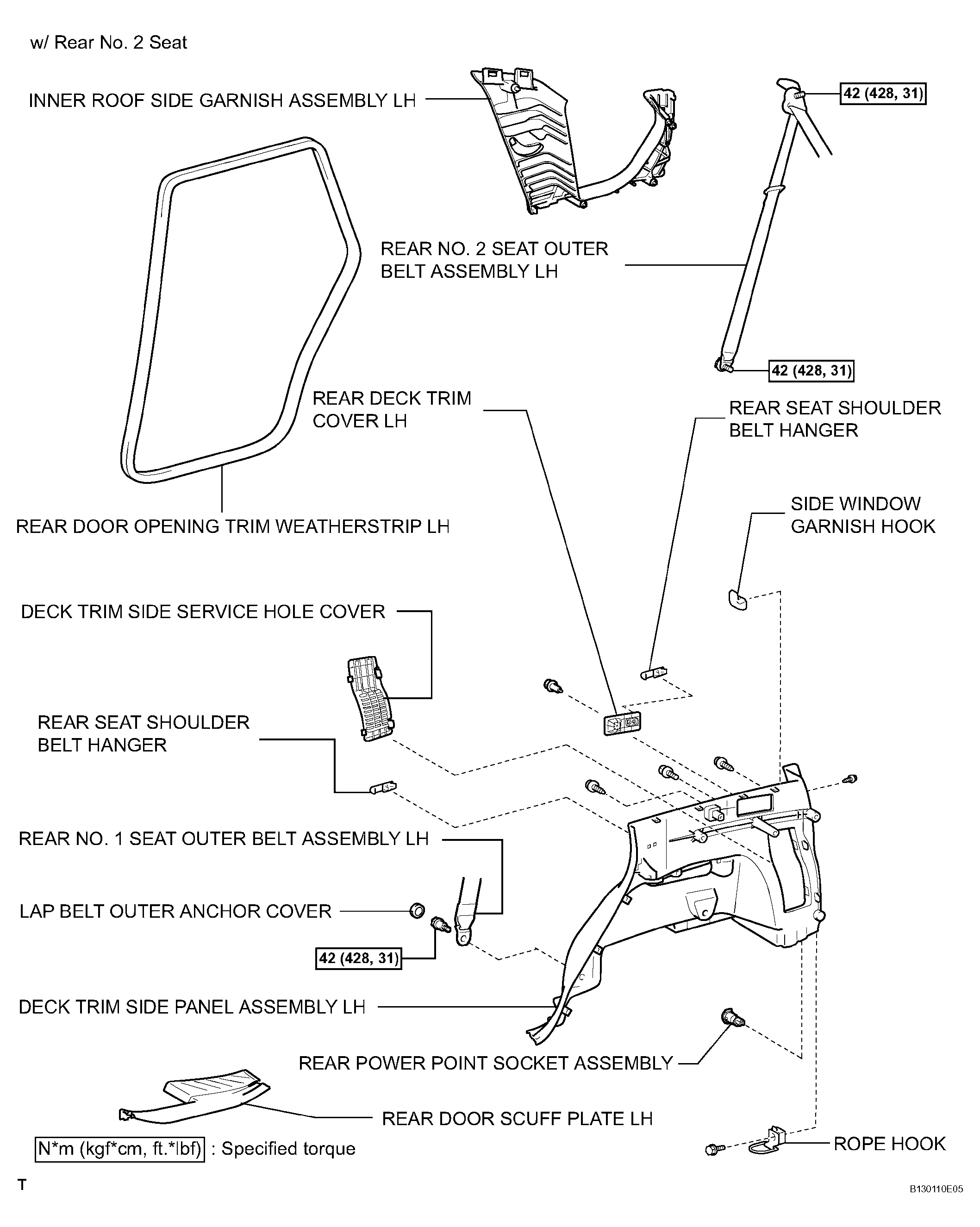

Fig 5: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/Rear No. 2 Seat)
G04490627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

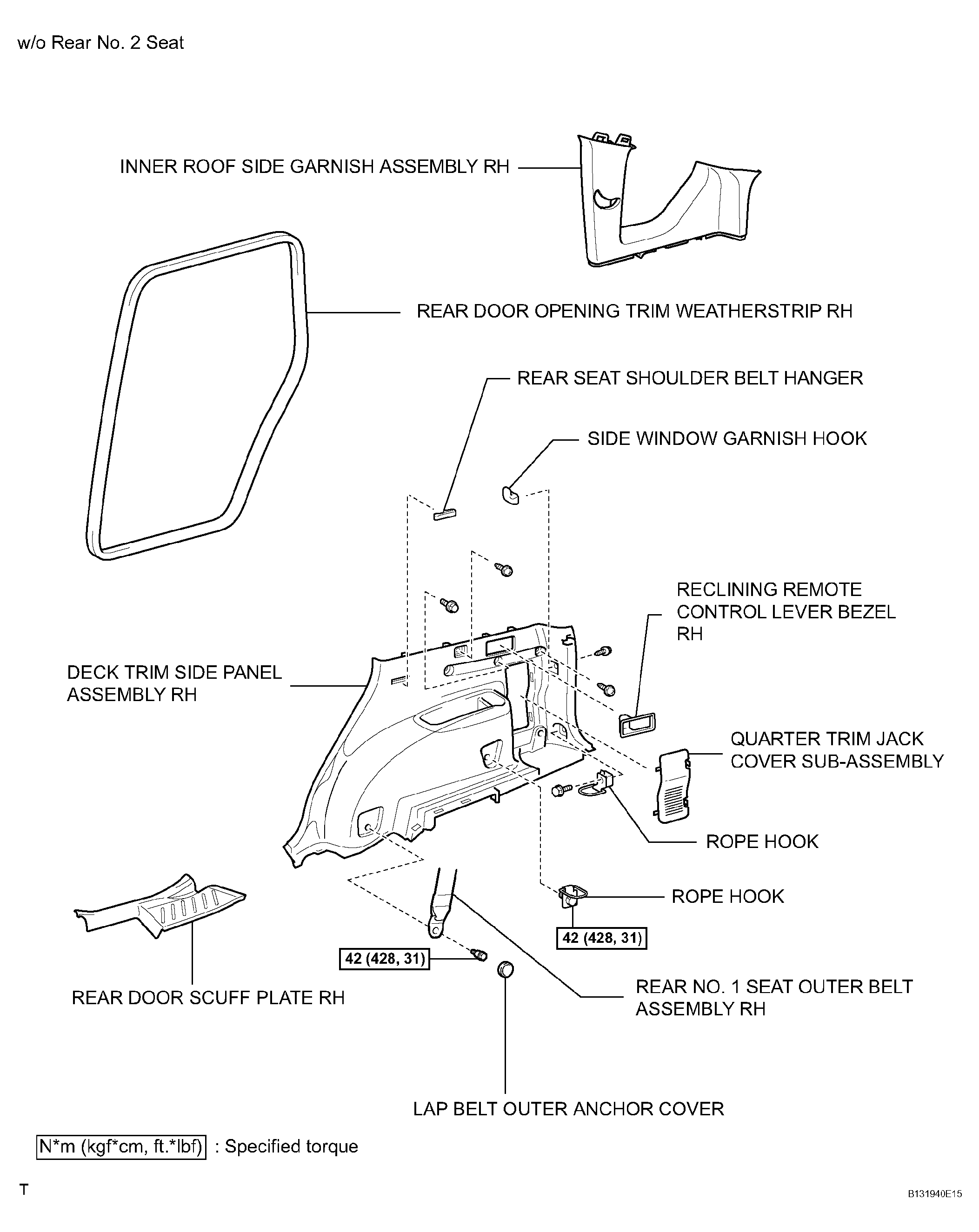

Fig 6: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/O Rear No. 2 Seat)
G04490628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

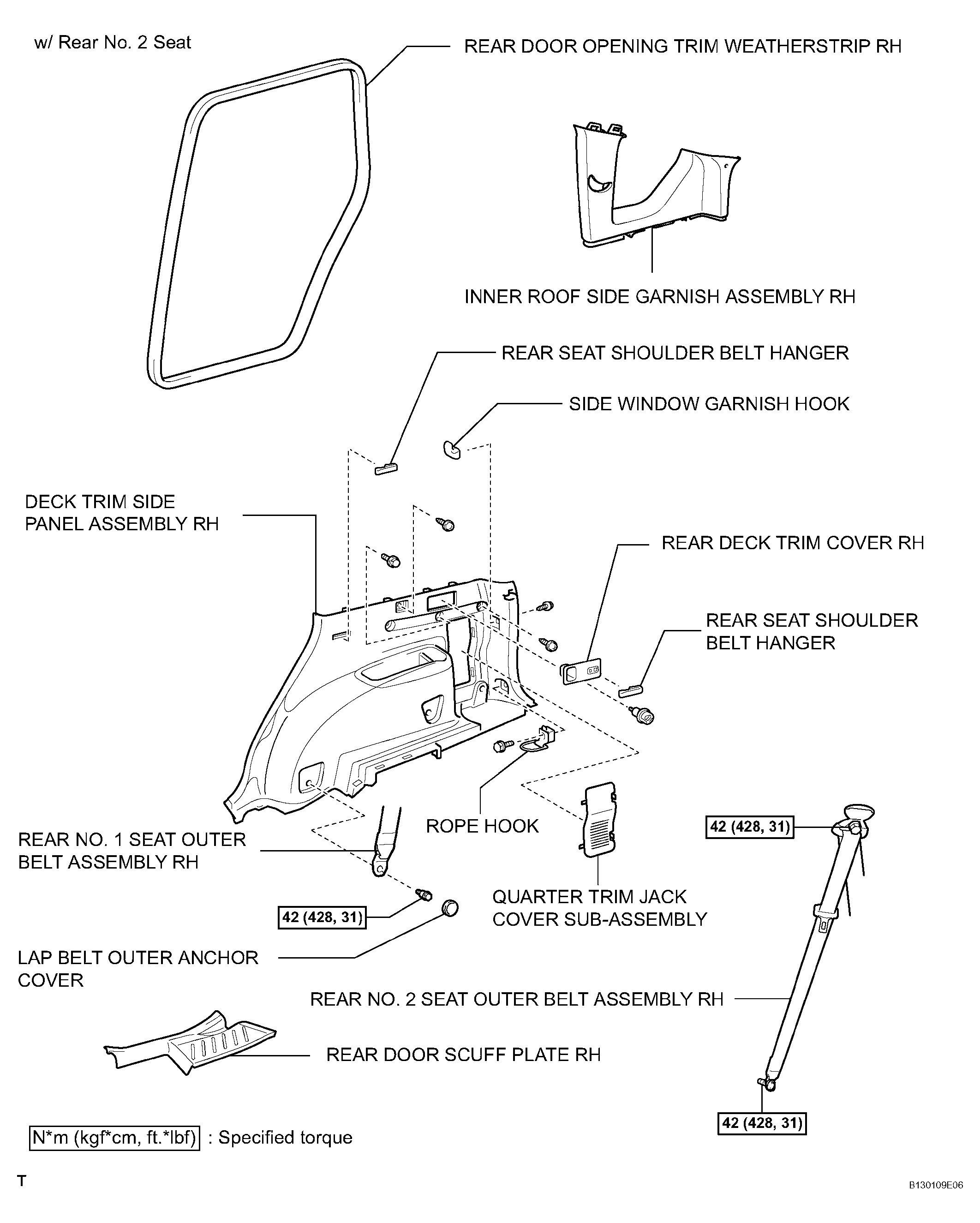

Fig 7: Child Restraint Seat Tether Anchor Replacement Components With Torque Specifications (W/Rear No. 2 Seat)
G04490629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

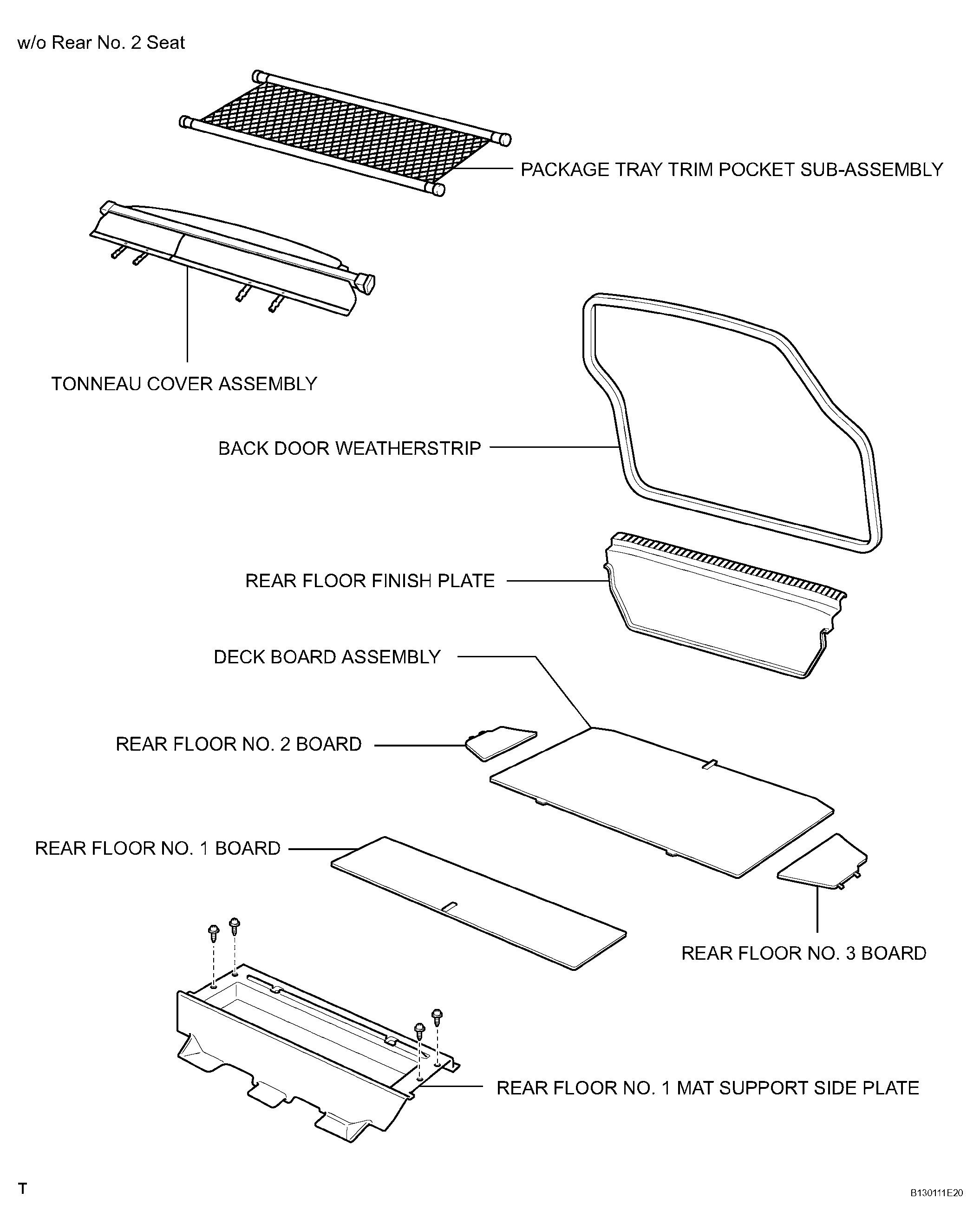

Fig 8: Identifying Child Restraint Seat Tether Anchor Components (W/O Rear No. 2 Seat)
G04490630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

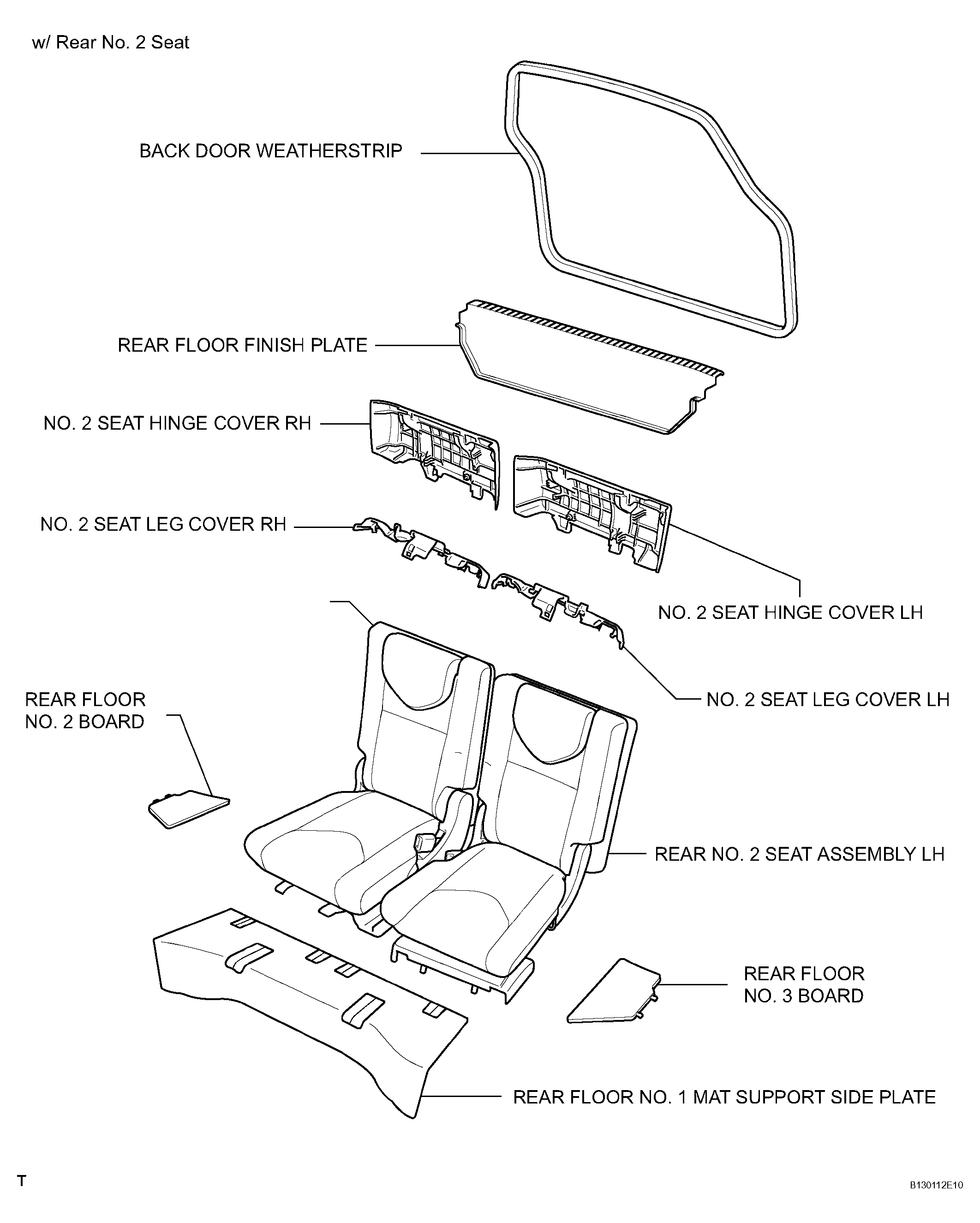

Fig 9: Identifying Child Restraint Seat Tether Anchor Components (W/Rear No. 2 Seat)
G04490631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Identifying Child Restraint Seat Tether Anchor Components (1 Of 2)
G04490632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

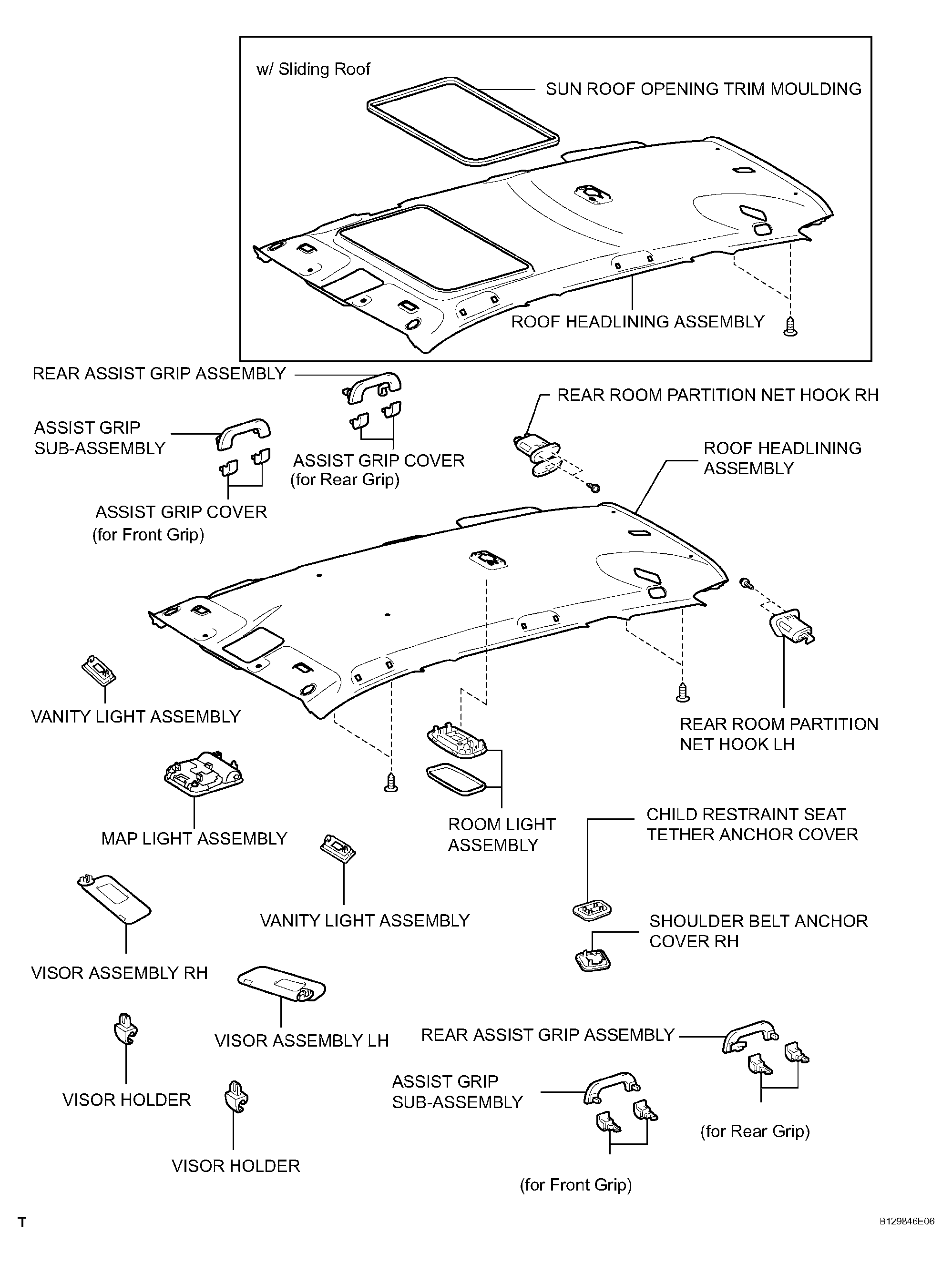

Fig 11: Identifying Child Restraint Seat Tether Anchor Components (2 Of 2)
G04490633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
