Blower Unit: Reassembly

  1. INSTALL BLOWER MOTOR
    1. Install the blower motor with the 3 screws.

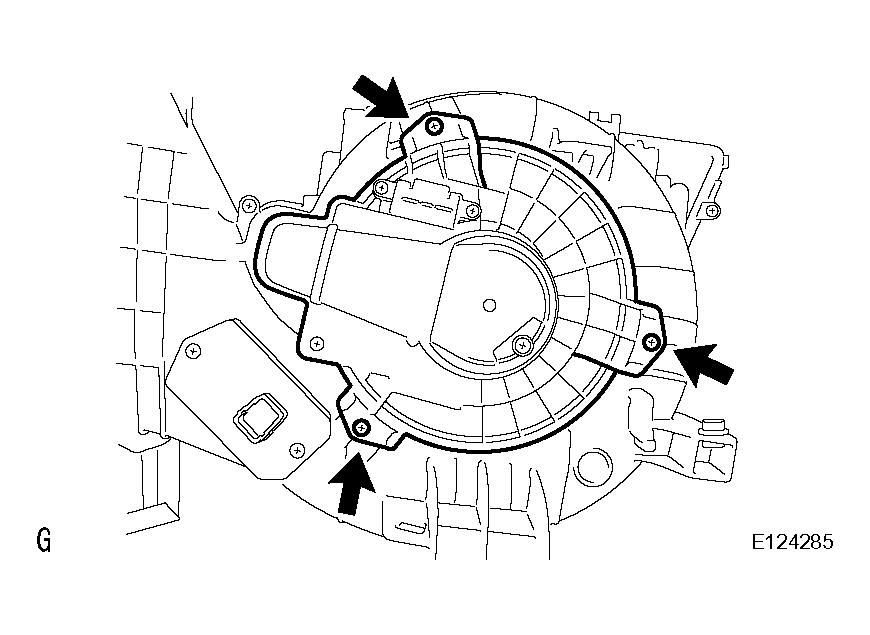

      Fig 1: Installing Blower Motor
      G04490035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BLOWER RESISTOR (For Manual Air Conditioning System)
    1. Install the blower resistor with the 2 screws.

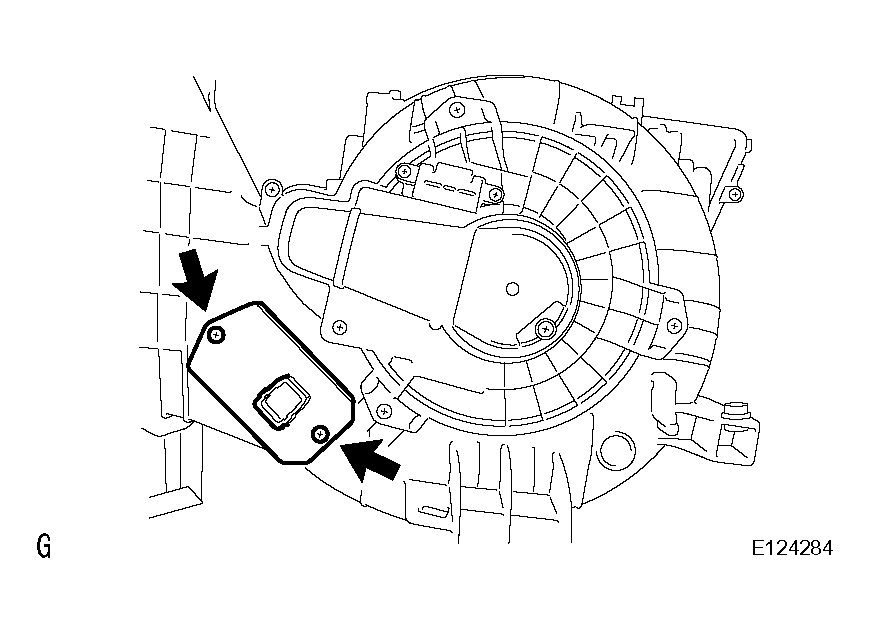

      Fig 2: Installing Blower Resistor
      G04490036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AIR INLET CONTROL SERVO MOTOR (For Automatic Air Conditioning System)
    1. Install the air inlet servo motor with the 3 screws.

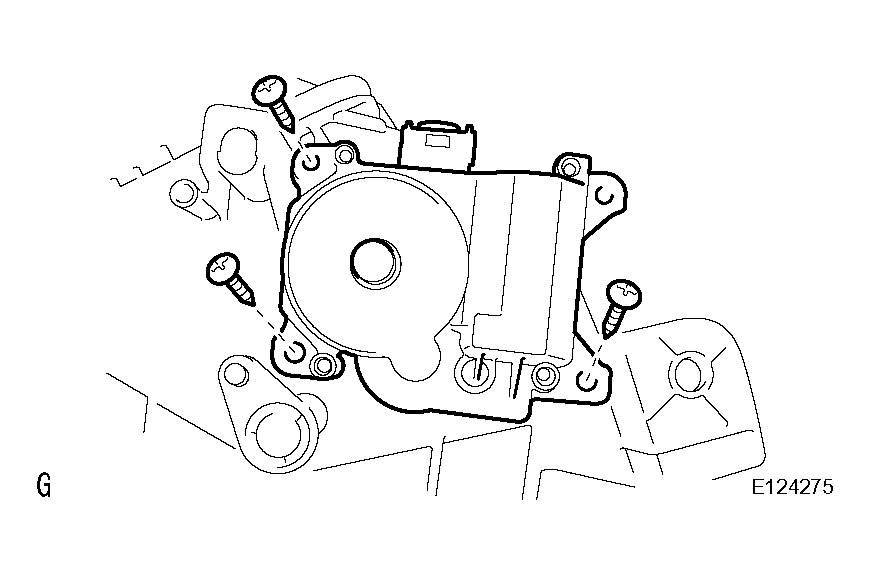

      Fig 3: Installing Air Inlet Servo Motor
      G04490037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the claw to install the lever.

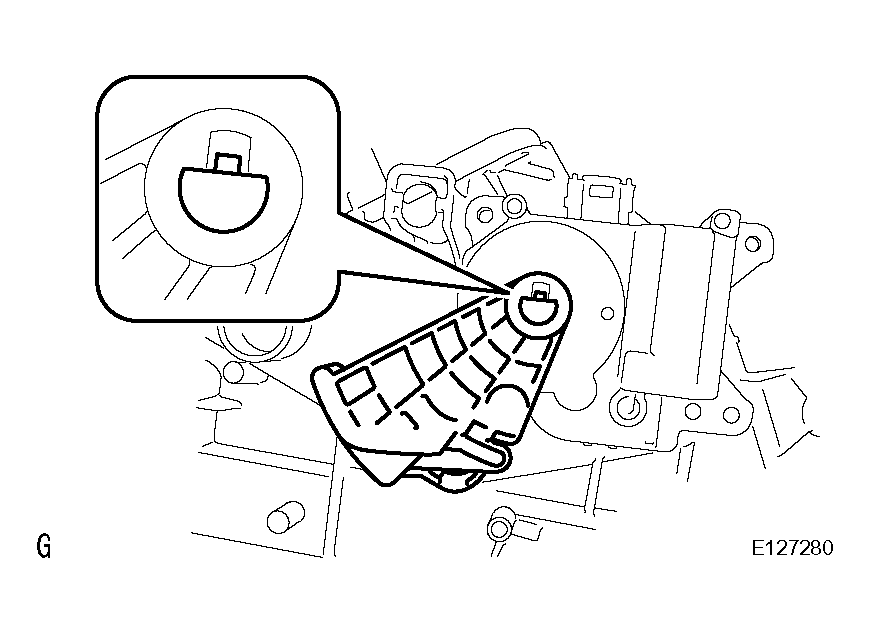

      Fig 4: Installing Lever
      G04490038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL AIR INLET CONTROL SERVO MOTOR (For Manual Air Conditioning System)
    1. Install the air inlet servo motor with the 3 screws.

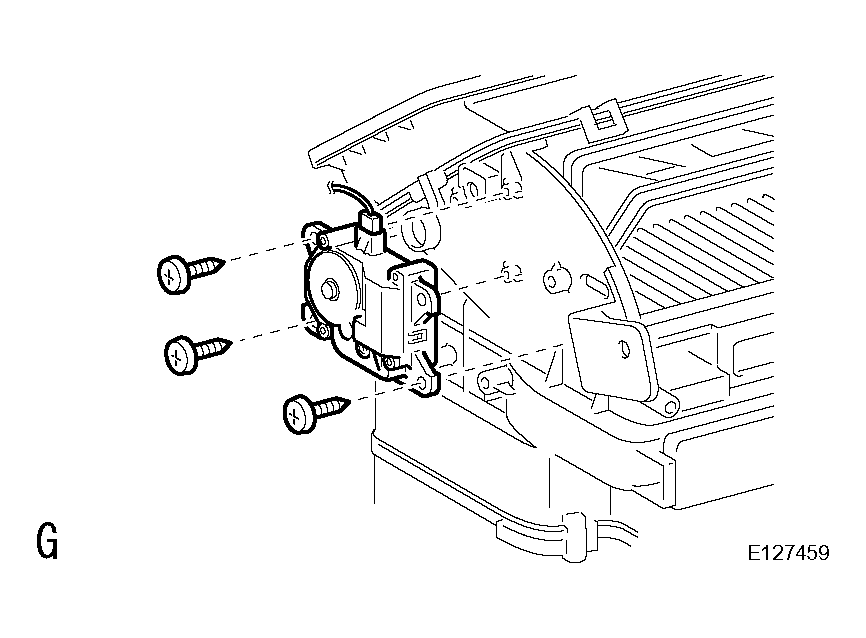

      Fig 5: Installing Air Inlet Servo Motor
      G04490039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR FILTER CASE
    1. Install the air filter.
    2. Attach the 2 claws to install the air filter case.

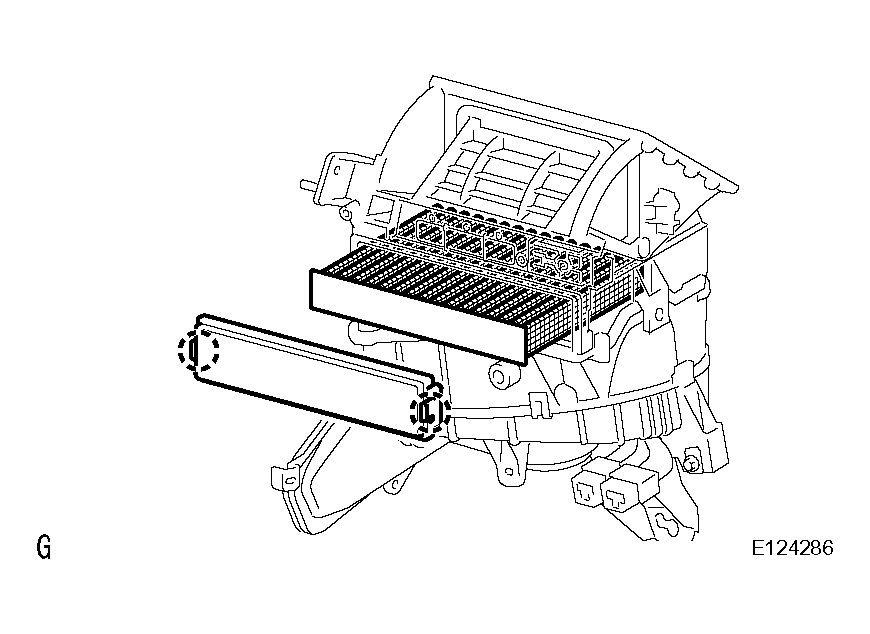

      Fig 6: Installing Air Filter Case
      G04490040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL HEATER TO REGISTER DUCT ASSEMBLY
    1. Attach the 7 claws to install the register duct.

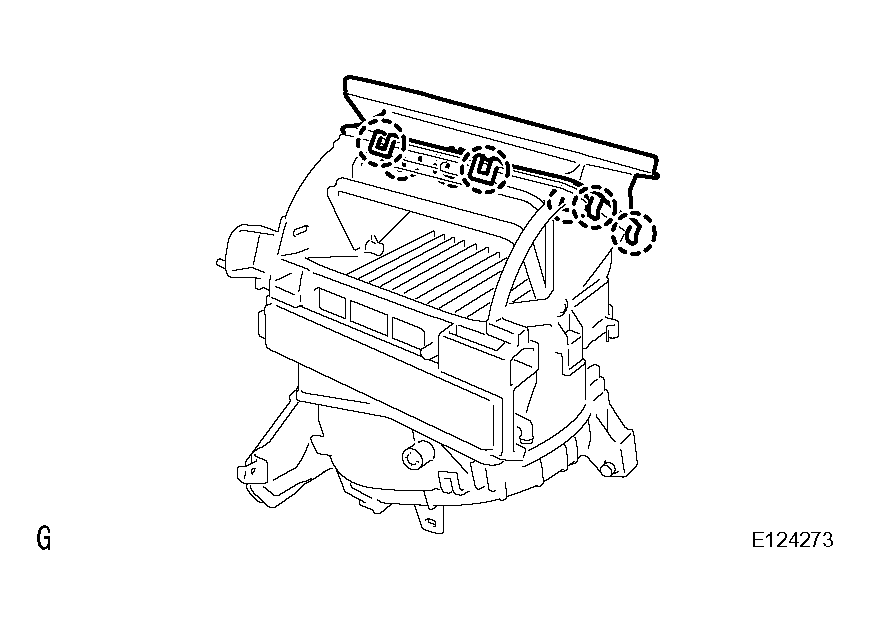

      Fig 7: Installing Register Duct
      G04490041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
